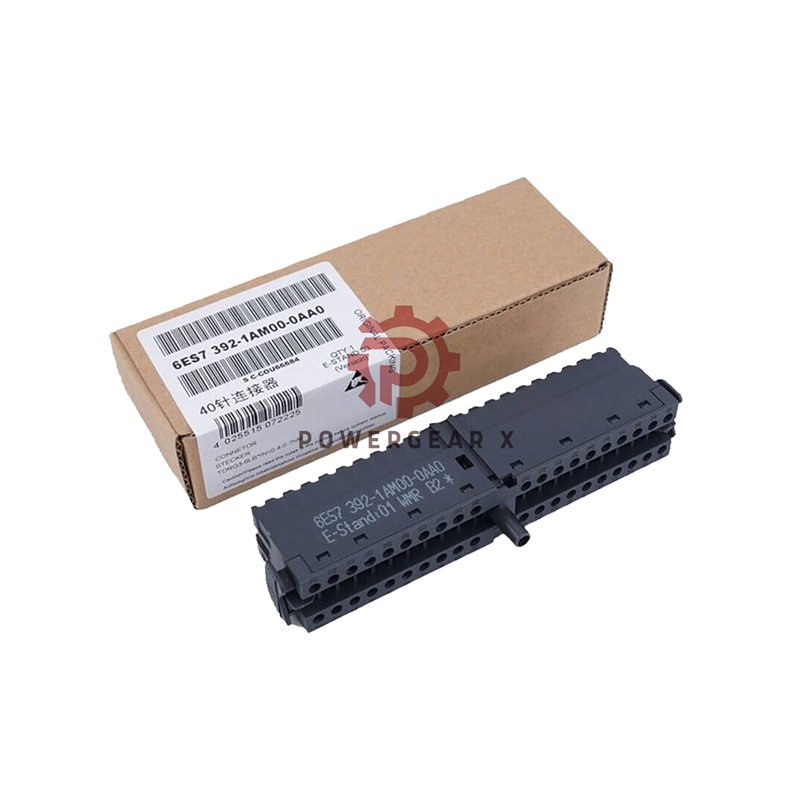

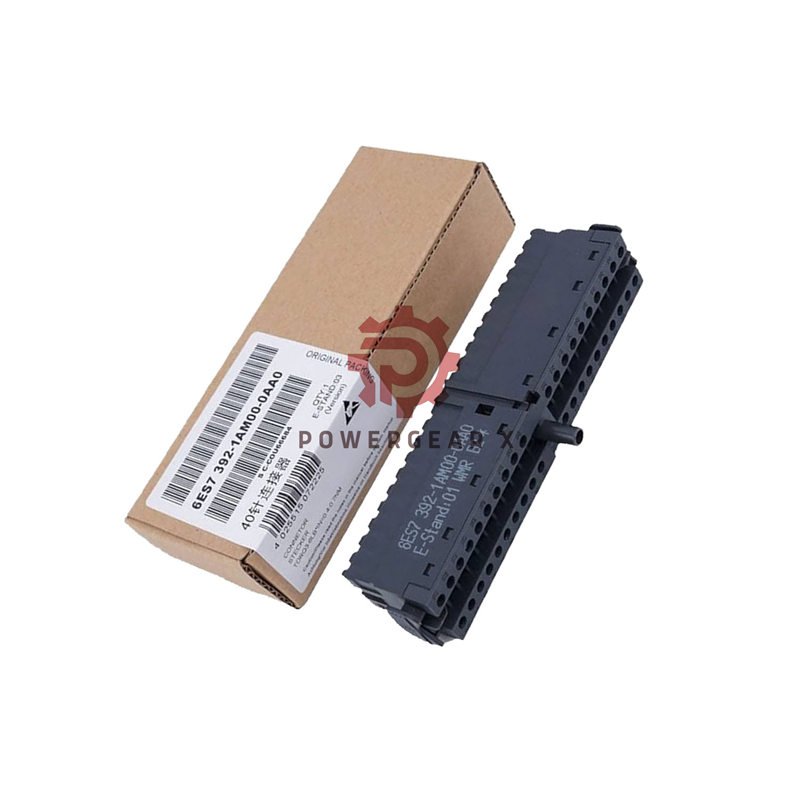

Siemens SIMATIC 6ES7392-1AM00-0AA0 Front Connector Overview
The Siemens SIMATIC 6ES7392-1AM00-0AA0 is a 40-pole front connector designed for reliable wiring of S7-300 I/O modules. It offers a solid screw terminal interface for stable signal connections under industrial conditions. Developed for durability and simplicity, it fits directly into Siemens automation racks.
Author: Powergear X Automation
Core Highlights
- Designed for S7-300 series modules with precision screw connections.
- Durable 40-pole connector for secure and long-term performance.
- Compact body width 21.6 mm fits tight panels easily.
- Operates from 0°C to 60°C with reliable contact pressure.
- Storage temperature range from -40°C to 70°C.
- 12-month warranty provided by Powergear X Automation.
Technical Details
- Product Type: Front Connector
- Model: 6ES7392-1AM00-0AA0
- Connection Method: Screw terminals
- Number of Contacts: 40-pole
- Accepts 1 wire or 2 cables up to 0.75 mm² combined.
- Supports both solid and flexible conductors from 0.14 mm² to 0.75 mm².
- AWG range: 24–19
- Strip length: fixed at 6 mm for perfect fitting.
- Torque range: 0.4–0.7 N·m with 3–3.5 mm screwdriver.
- Size: 21.6 mm (W) × 125 mm (H) × 40.9 mm (D)
- Weight: approx. 137 g
Installation Notes
- Use a 3–3.5 mm screwdriver to tighten screws evenly.
- Always check conductor cross-section compatibility before wiring.
- Ensure the stripped wire length remains 6 mm for reliable contact.
- Use DIN 46228 end sleeves (Design A or E) for best results.
- Mount directly into Siemens S7-300 slots without adapters.
Performance & Reliability
- Rugged screw terminal design resists vibration and temperature shifts.
- Delivers consistent signal transmission with low contact resistance.
- Supports field maintenance and replacement in minimal downtime.
- Compact width improves cabinet density and layout efficiency.
- Designed for long service life with high mechanical endurance.
Shipping & Warranty
- All units come with a 12-month warranty from Powergear X Automation.
- Each connector is packed securely with anti-static protection.
- Shipping partners: FedEx, UPS, and DHL for global delivery.
- Tracking and insurance included with every order.
FAQ
- Q:How do I ensure the best screw torque during installation?
A:Use a torque screwdriver set between 0.4 and 0.7 N·m for consistent connection pressure. - Q:Can I connect two cables in one terminal?
A:Yes, up to two cables with a total cross-section of 0.75 mm² using a shared end sleeve. - Q:What end sleeve type fits best for this model?
A:Use DIN 46228 Design A or E sleeves for a stable and safe connection. - Q:How do I prevent contact loosening during vibration?
A:Tighten screws to the upper torque limit and use vibration-proof mounting positions. - Q:Can this connector handle flexible cables with plastic sleeves?
A:Yes, flexible wires from 0.14 mm² to 0.75 mm² fit easily with sleeves up to 6 mm long.
