Product details
Overview

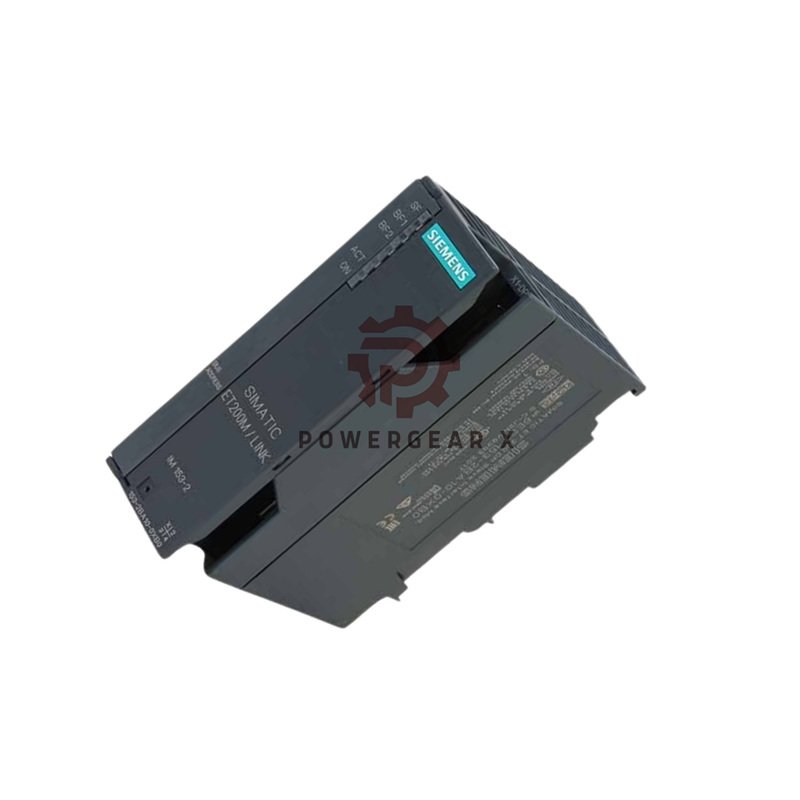

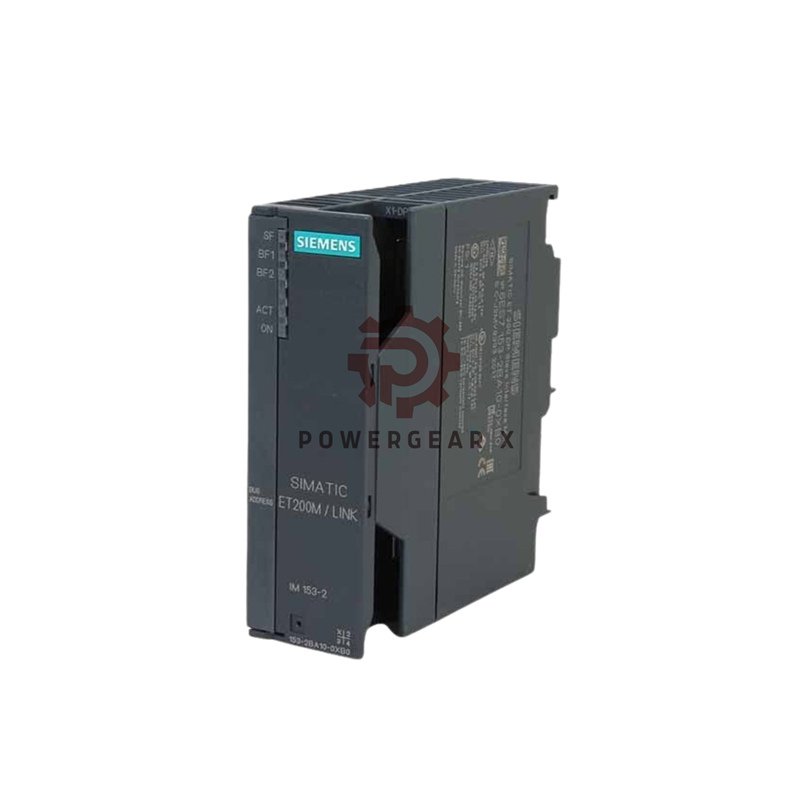

The Siemens SIMATIC 6ES7153-2BA10-0XB0 IM 153-2 DP HF is a high-performance distributed I/O interface module engineered for PROFIBUS DP networks. It delivers reliable data exchange, redundancy support, and precise timestamping ideal for industrial automation systems.
Developed by Siemens and presented by Powergear X Automation, this module ensures stable operation with deterministic I/O and is suitable for synchronized or isochronous mode applications.
Technical Specifications
- Brand: Siemens
- Series: SIMATIC
- Model: 6ES7153-2BA10-0XB0 IM 153-2 DP HF
- Supply voltage rated at 24 V DC (range 20.4–28.8 V)
- Max current consumption 650 mA; typical inrush 3 A
- Power loss approx. 5.5 W
- Address range: Inputs 244 bytes, Outputs 244 bytes
- Up to 12 connected S7-300 modules with redundancy capability
- Timestamping accuracy 1 ms (8 modules), 10 ms (12 modules)
- Time resolution: 0.466 ns, buffer: 15 messages, 20 events per buffer
- PROFIBUS DP interface via RS485, auto baud rate detection, up to 12 Mbit/s
- Backplane bus output: 5V DC / 1.5A
- Isolation voltage: 500V; IP20 protection level
- Dimensions: 40×125×117 mm, Weight approx. 360 g
- Operating temp: 0–60°C (horizontal), 0–40°C (vertical), altitude ≤ 3000 m
- Compatible software: STEP 7 / COM PROFIBUS / non-Siemens tools via GSD (SI05801E.GSG)
Installation Guide
- Mount the 6ES7153-2BA10-0XB0 securely on a DIN rail in a ventilated panel.
- Provide a protected 24V DC supply with 2.5A fuse or breaker.
- Connect PROFIBUS cable using the 9-pin Sub-D socket; automatic baud rate detection activates automatically.
- Configure via Siemens STEP 7 or GSD file for full parameterization and diagnostics.
- Ensure ambient temperature limits and proper grounding for stable timestamp accuracy.
Packaging List
- 1 × Siemens 6ES7153-2BA10-0XB0 IM 153-2 DP HF module
- 1 × Sub-D adapter and DIN mounting clip
- 1 × Quick start guide and wiring note
- Ships safely via FedEx, UPS, or DHL worldwide
FAQ
- Q:How can I test timestamping precision before integrating into my system?
A:Perform I/O signal change tests and compare timestamps with a calibrated master clock source. - Q:Can this module manage HART auxiliary signals?
A:Yes, enable expanded HART variable mapping through the configuration tool for full monitoring. - Q:How to minimize EMI for consistent performance?
A:Use shielded PROFIBUS cables, proper grounding, and maintain cable separation from power lines. - Q:How many I/O modules can be connected safely?
A:Up to 12 modules per DP slave are supported without degrading synchronization accuracy.
Contact Information
- For inquiries, email sales@powergearx.com
- Call or WhatsApp us at +86 18030005825
