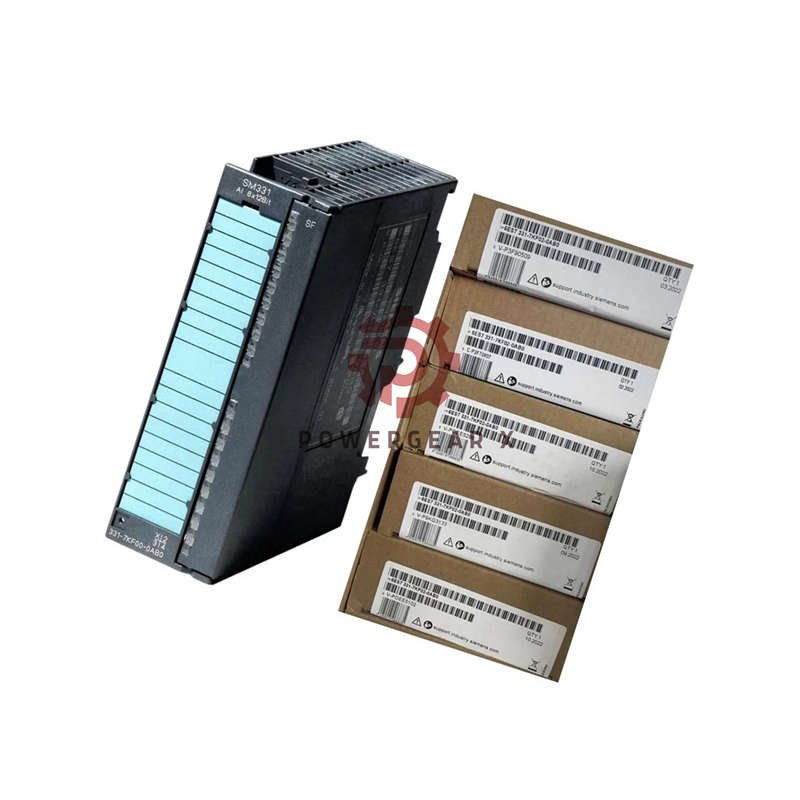

Siemens SM 331 6ES7331-7KF02-0AB0 — 8AI Isolated Module for S7-300

Overview — Siemens 6ES7331-7KF02-0AB0 SM 331 Analog Input Module

The Siemens 6ES7331-7KF02-0AB0 SM 331 module delivers high-accuracy analog input performance for S7-300 systems. Authored by Powergear X Automation, this guide highlights its robust design, flexible measurement capabilities, and professional specifications for automation engineers.

Technical Highlights

• Model: 6ES7331-7KF02-0AB0 | Brand: Siemens | Series: SM 331.
• Resolution up to 14 bits ensures detailed analog signal acquisition.
• Integration times configurable at 2.5, 16.67, 20, and 100 ms for flexible interference control.
• Typical power loss only 1 W, with isolation tested at 500 V DC.

Measurement Ranges & Inputs

• Voltage input spans include ±10 V, ±5 V, ±2.5 V, and low mV levels for sensitive sensors.
• Current input options: 0–20 mA, ±10 mA, ±20 mA, 4–20 mA, with 25 Ω input resistance.
• Supports thermocouple types E, J, K, L, and N, plus RTDs Pt100 and Ni100.
• Resistance ranges: 0–150 Ω, 0–300 Ω, 0–600 Ω, all with 10 MΩ input resistance.

Accuracy & Stability

• Voltage accuracy: ±0.6% at 25°C; current and resistance: ±0.5–0.7% depending on range.
• Thermocouple accuracy: ±0.7–1.1% for Type E, J, K, L, and N inputs.
• Stable across full temperature range; includes internal and external temperature compensation.

Diagnostics & Noise Rejection

• Equipped with interference suppression for 10, 50, 60, and 400 Hz noise frequencies.
• Supports parameterizable diagnostic alarms and readable diagnostic data via PLC interface.
• Front panel includes a red SF LED for group error indication and quick troubleshooting.

Connection & Isolation

• Requires a 20-pin front connector and supports active backplane bus hot swapping.
• Isolation between channels and backplane/electronics ensures reliable operation.
• Module dimensions: 40 mm (W) × 125 mm (H) × 117 mm (D), weight approx. 250 g.

Installation Guide

• Mount securely on an S7-300 DIN rail before connecting to the active backplane bus.
• Use shielded cables up to 200 m; limit to 50 m for low-millivolt or thermocouple signals.
• Select suitable integration times to balance response speed and interference immunity.

Packing List

• 1 × Siemens 6ES7331-7KF02-0AB0 SM 331 analog input module.
• 1 × Quick-start leaflet and 20-pin front connector.
• 1 × Anti-static protective packaging with installation checklist.

Shipping Methods

• Orders shipped via FedEx, UPS, or DHL based on delivery preference.
• Tracking numbers provided for each shipment through Powergear X Automation’s logistics team.

FAQ

• Q: How should I wire a four-wire Pt100 sensor?
  A: Connect two wires to sensor terminals and two to compensation terminals for accurate readings.
• Q: Can this module measure low-voltage signals over long cables?
  A: Use shielded, grounded cable; limit to 50 m for millivolt or thermocouple inputs.
• Q: Which integration time is best for noisy environments?
  A: Choose 100 ms for higher noise rejection in industrial conditions.
• Q: How do I check diagnostics through the PLC?
  A: Enable diagnostics in hardware configuration and monitor module status bits in the PLC.
• Q: Do you offer bulk shipping options?
  A: Yes, contact our sales team for palletized orders and preferred shipping arrangements.
