Siemens 6ES7972-0BB41-0XA0 PROFIBUS Connector Overview

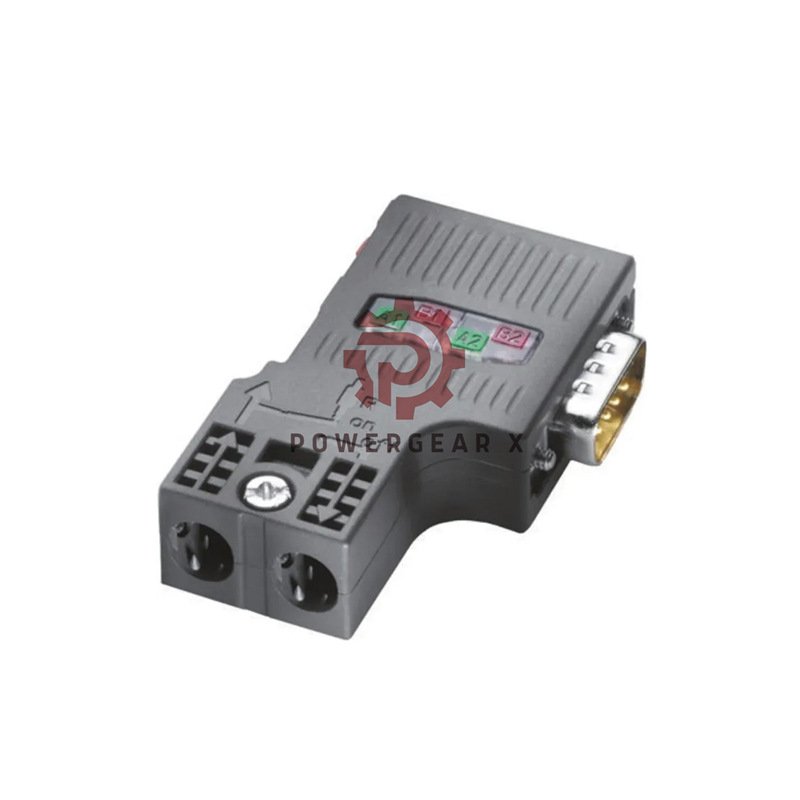

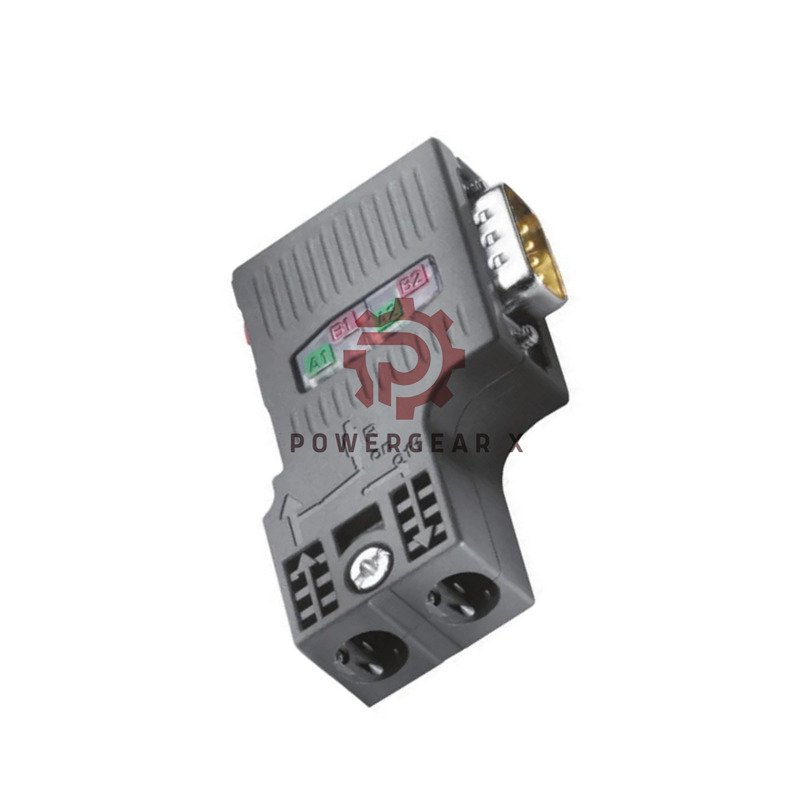

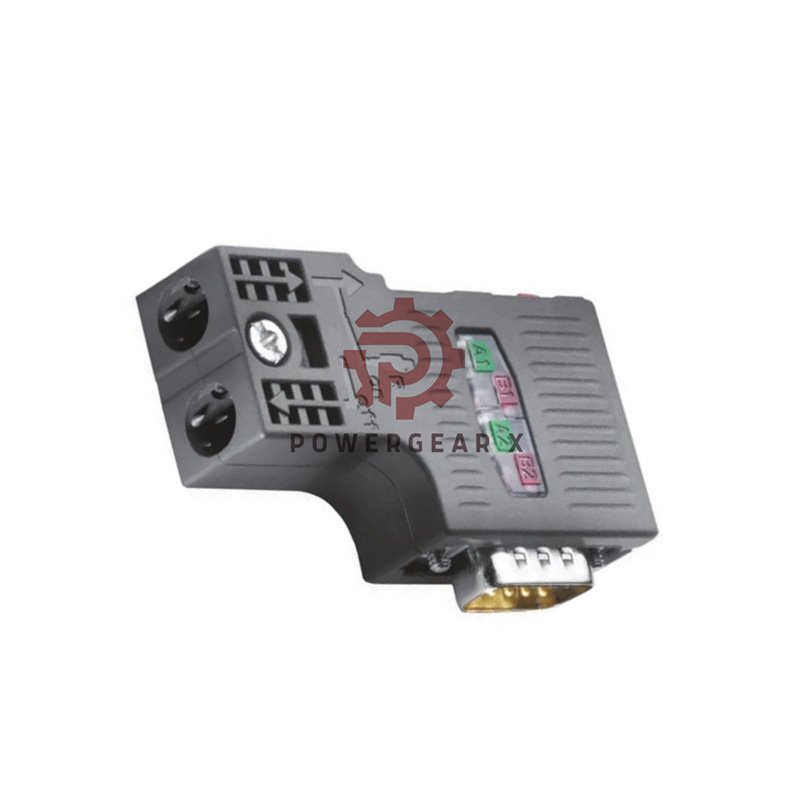

The 6ES7972-0BB41-0XA0 PROFIBUS connector connects SIMATIC DP stations with high stability and speed. Its 35° outlet saves space and supports fast wiring.
Main Highlights
- Supports up to 12 Mbit/s transfer rate for PROFIBUS DP networks.
- Durable IP20 housing ensures industrial protection.
- Built-in terminating resistor with simple slide switch control.
- Includes PG socket for programming and easy diagnostics.
- Compact size 15.8 × 54 × 39.5 mm and light weight 34 g.
- High resistance to vibration and mechanical stress.
Technical Data
- Brand: Siemens
- Model: 6ES7972-0BB41-0XA0
- Communication: RS‑485 PROFIBUS
- Speed Range: 9.6 kbit/s – 12 Mbit/s
- Cable Outlet: 35° angled for space‑saving routing
- Connector Type: 9‑pin Sub‑D for station link
- Termination: Integrated, switchable resistor network
- Operation Temp: -25°C to +60°C
- Storage Temp: -40°C to +70°C
- Material: High‑grade plastic shell, screw locking
- Installation: Screw terminal for solid connection
- Dimensions: 15.8 × 54 × 39.5 mm
- Compliance: RoHS, UL certified
- Warranty: 12 months full coverage
Key Advantages
- Reliable data transfer even in EMI‑heavy environments.
- Tool‑free slide resistor control improves setup time.
- Compact design for tight cabinet applications.
- Includes strain relief to secure cable integrity.
- Proven for Siemens automation systems and OEM machines.
Installation and Use
- Connect PROFIBUS cable via screw terminals and ensure shield continuity.
- Adjust termination slide to ON for the end of bus segment.
- Use PG port for direct programming and diagnostics.
- Maintain proper grounding to ensure EMC protection.
- Shipping available through FedEx, UPS, or DHL worldwide.
Extra Technical Insights
- Rated voltage: 5 V DC signal logic.
- Contact resistance: ≤10 mΩ.
- Insulation resistance: ≥100 MΩ at 500 V DC.
- Signal delay: <1 ns/m.
- Durability: >200 plug cycles with stable connection quality.
FAQ
- Q: Is the 6ES7972-0BB41-0XA0 compatible with older PROFIBUS modules?
A: Yes, it supports all standard PROFIBUS DP and FDL devices. - Q: What tools are needed for wiring?
A: Only a small screwdriver for screw terminals; no crimping required. - Q: Can I use it outdoors?
A: It is designed for indoor control panels; use IP65 housing for outdoor use. - Q: Does it support FastConnect cables?
A: No, this version uses standard screw terminals only. - Q: How do I check the termination state?
A: The slide switch indicator shows active or inactive termination positions.
