Siemens SIMATIC 6ES7332-5HF00-0AB0 Analog Output Module

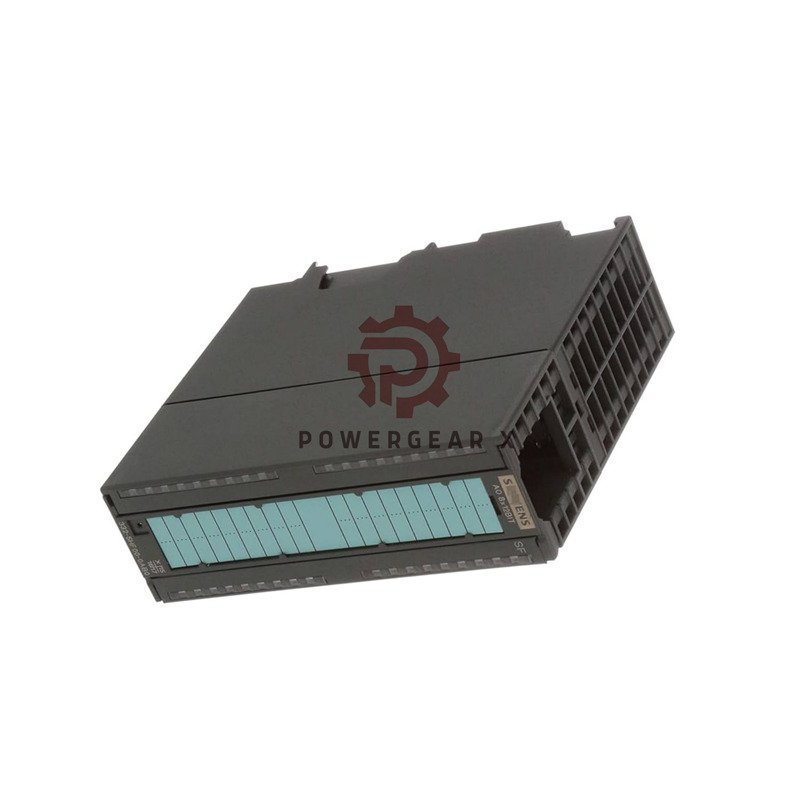

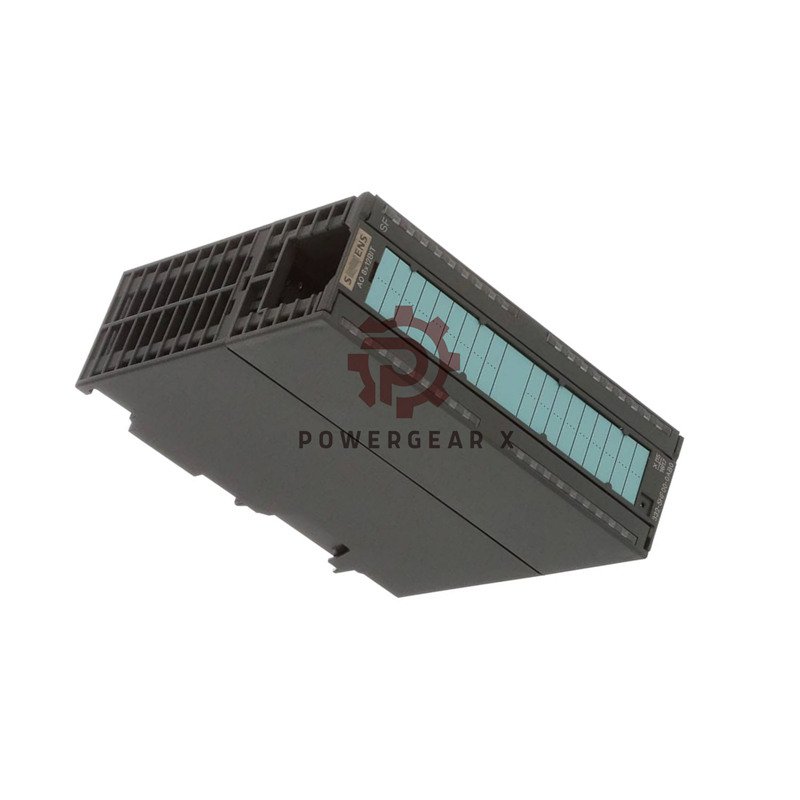

Siemens SIMATIC 6ES7332-5HF00-0AB0 SM 332 Analog Output Module

The Siemens SIMATIC 6ES7332-5HF00-0AB0 SM 332 delivers precision and speed in analog output applications. Designed for the S7-300 series, it provides eight isolated analog channels supporting voltage and current signals with integrated diagnostics. This module ensures stable operation and superior accuracy for automation systems.

Author: Powergear X Automation

Main Features

• 8 analog outputs with full isolation for stable performance.
• Supports both voltage (±10V, 0–10V, 1–5V) and current outputs (0–20mA, 4–20mA, ±20mA).
• Fast conversion time of 0.8 ms per channel.
• Resolution up to 12 bits for precise signal generation.
• Short-circuit and overload protection on all channels.
• Compact module with 40 mm width and weight 272 g.
• 12-month warranty from Powergear X Automation.

Electrical Specifications

• Supply voltage: 24 V DC with reverse polarity protection.
• Current draw: 340 mA from L+, 100 mA from backplane bus.
• Power loss: approx. 6 W.
• Voltage load impedance: ≥1 kΩ; current load ≤500 Ω.
• Maximum cable length (shielded): 200 m.
• Settling time: 0.2 ms (resistive), 0.5 ms (inductive), 3.3 ms (capacitive).
• Error limits: ±0.4% (voltage), ±0.5% (current) at 25°C.
• Diagnostics and LED group error indication (SF red).
• Isolation tested with 500 V DC for enhanced safety.

Performance Benefits

• Accurate output with minimal signal drift across temperature range.
• Diagnostics help detect channel faults quickly during runtime.
• Fully isolated from backplane and load voltage for protection.
• High-speed update for dynamic analog control applications.
• Hot-swappable design allows module insertion without system shutdown.

Installation Notes

• Mount directly on the S7-300 rack with a 40-pin front connector.
• Ensure correct wiring of voltage and current outputs per channel.
• Maintain shielded cable connection up to 200 m for stable signal quality.
• Keep ambient temperature between 0°C and 60°C for continuous operation.
• Secure front connectors and check isolation before powering up the system.

Shipping & Warranty

• Comes with a 12-month warranty covering manufacturing defects.
• Packed with anti-static protection and quick installation guide.
• Delivered globally via FedEx, UPS, or DHL with tracking service.
• Optional expedited air shipping available upon request.

FAQ

• Q:What is the best load impedance for voltage output?
  A:Use a minimum of 1 kΩ to maintain stable voltage levels and accuracy.
• Q:Can I mix voltage and current channels on the same module?
  A:Yes, each channel can be independently configured for voltage or current mode.
• Q:How to identify a channel fault quickly?
  A:Check the red SF LED on the module and review diagnostic data in STEP 7 software.
• Q:What is the recommended cable type for long runs?
  A:Use shielded twisted pairs to reduce noise over distances up to 200 meters.
• Q:Can the module be replaced without stopping the CPU?
  A:Yes, it supports removal and insertion while the backplane bus remains active.
