Product details
Key Features
- 8× 10/100 Mbit/s RJ45 ports with LED status and secure collars.
- Supports PROFINET class B with integrated redundancy manager.
- Includes MRP and PRP for fast failover and continuous uptime.
- Redundant 24V DC power supply (18–32V) with fuse protection.
- Wide temperature range -40 °C to +60 °C.
- Long-life design, MTBF 83.71 years.
Technical Specifications

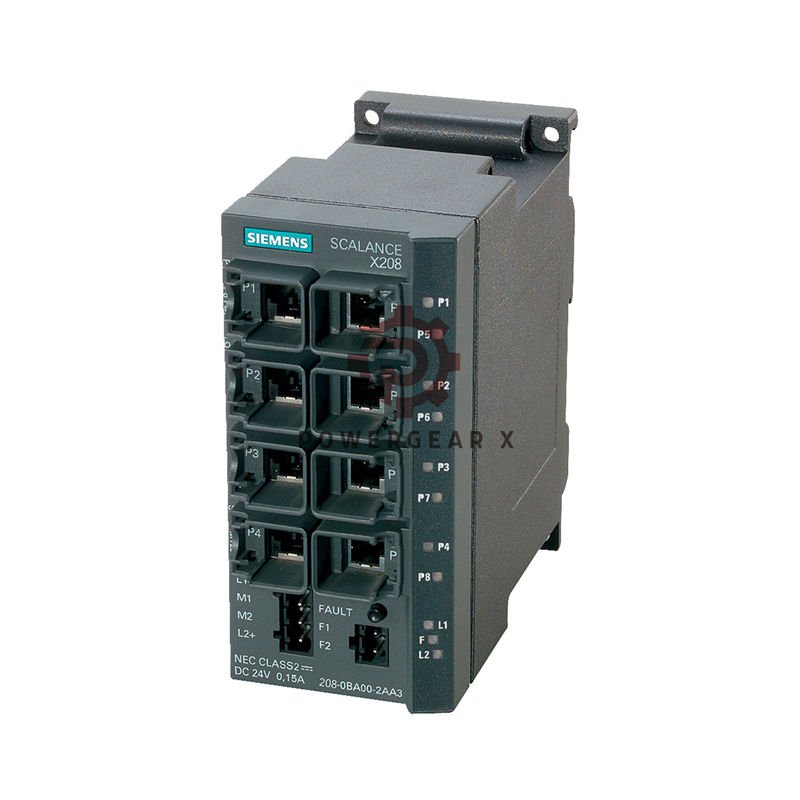

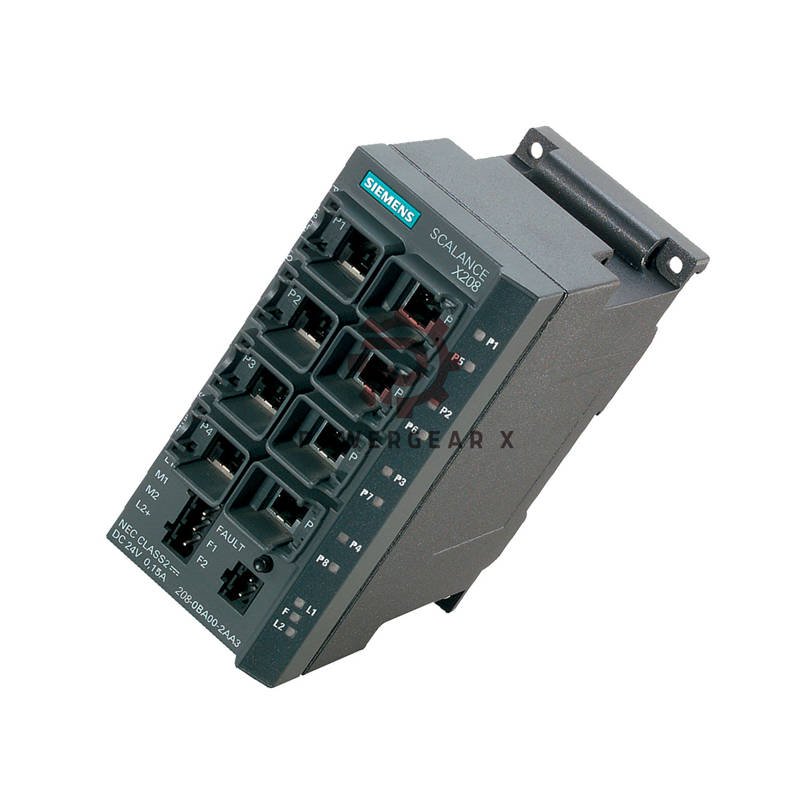

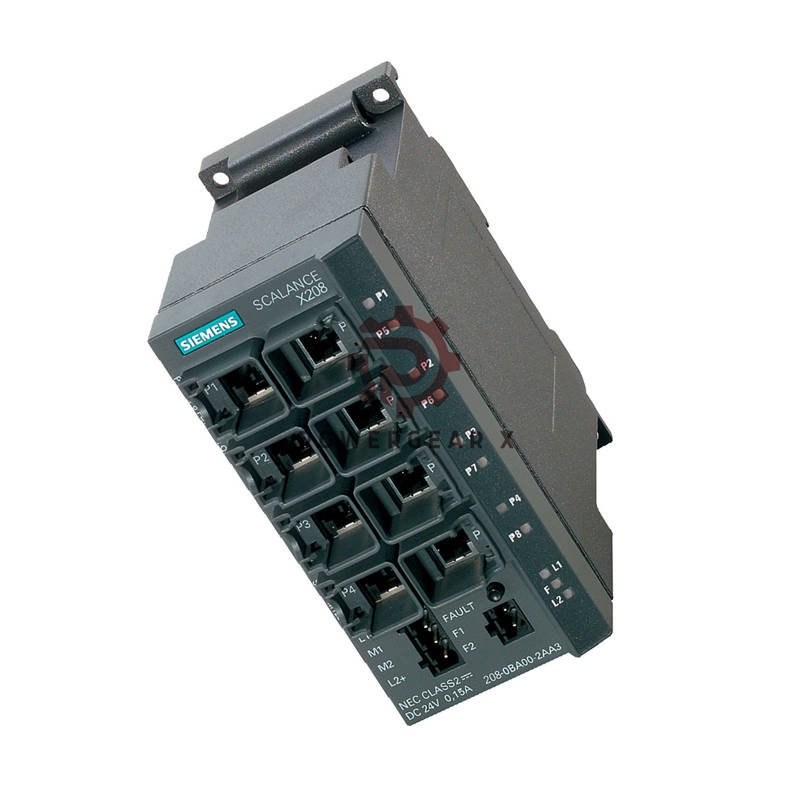

- Brand: Siemens | Model: 6GK5208-0BA10-2AA3 | Series: SCALANCE X208
- Transfer rate: 10/100 Mbit/s | 8 RJ45 ports
- Power loss: 3.84 W | Current: 0.185 A
- Voltage: 18–32 V DC | Fuse: 0.6 A/60 V
- Mounting: DIN rail, wall, or S7-300
- Protection: IP30 | Weight: 0.78 kg | Size: 60×125×124 mm
- Protocols: SSH, HTTPS, SNMP, LLDP, PROFINET IO
- Approvals: ATEX, IECEx, UKEX, ULhazloc, Marine (ABS, DNV GL, NK)
Performance & Environment
- Humidity: up to 95% at 25°C without condensation.
- Reconfiguration time under 0.3 s for redundant rings.
- Port diagnostics and error statistics built-in.
- Meets EN 61000-6-4 and EN 61000-6-2 EMC standards.
Installation
- Mount on DIN rail or wall using provided brackets.
- Connect 24V DC power via 4-pole terminal block.
- Use web or CLI for IP, SNMP, and PROFINET setup.
- Enable MRP/PRP for redundancy as needed.
Package Includes
- 1× SCALANCE X208 Switch (6GK5208-0BA10-2AA3)
- 1× Quick Start Guide & Electronic Manual (CD-ROM)
- Mounting screws and power connector
Shipping
- Ships via FedEx, UPS, or DHL with global tracking.
- Securely packed with anti-static protection.
FAQ
- Q: How to update firmware?
A: Download from Siemens, apply during maintenance, verify after restart. - Q: Does it support PRP?
A: Yes, works with parallel redundancy networks. - Q: How to check network issues?
A: Use port diagnostics and SNMP traps. - Q: Can I use dual power inputs?
A: Yes, connect both for redundant supply.
