Product details
Overview

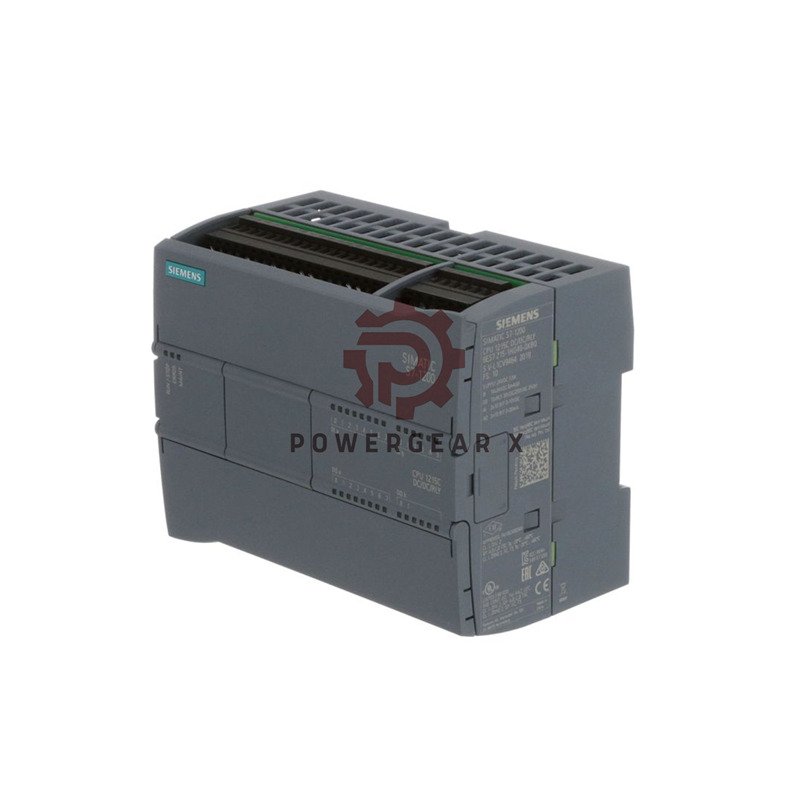

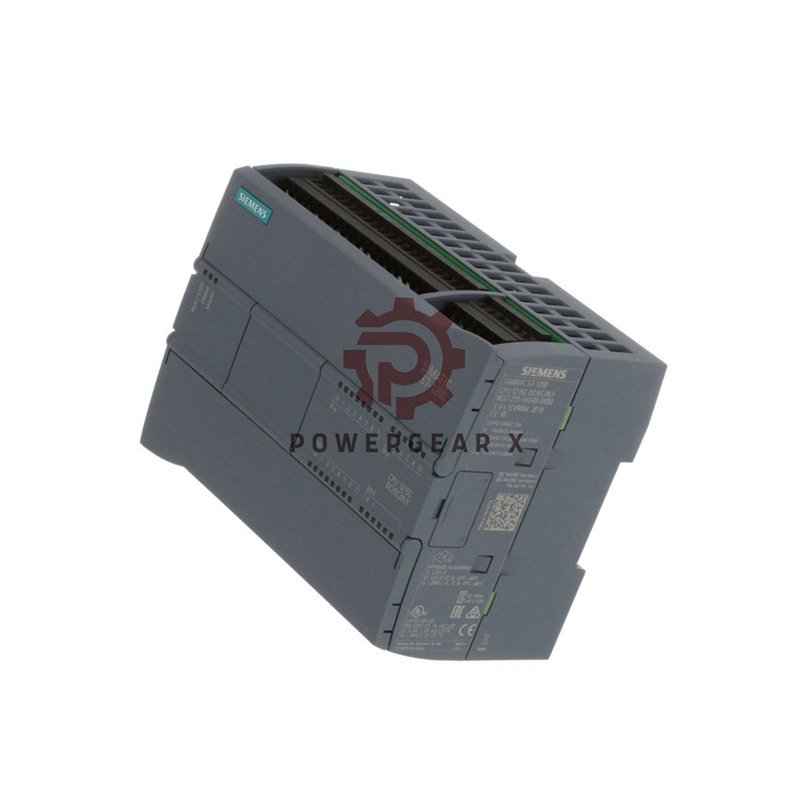

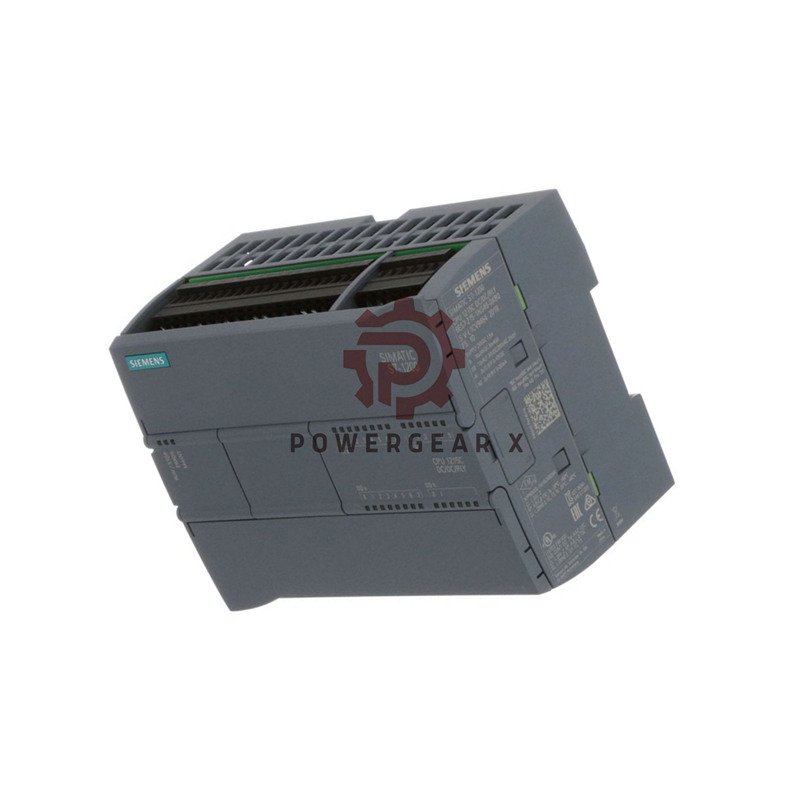

The Siemens CPU 1215C (6ES7215-1HG40-0XB0) is a compact PLC designed for small and medium automation tasks. It combines flexible inputs and outputs, powerful performance, and easy network connection.
Main Features
- Brand: Siemens
- Model: 6ES7215-1HG40-0XB0
- Series: SIMATIC S7-1200
- Onboard I/O: 14 Digital Inputs, 10 Relay Outputs, 2 Analog Inputs (0–10V), 2 Analog Outputs (0–20mA)
- Communication: Two PROFINET ports with built-in switch and web server
- Power Supply: 24V DC (20.4–28.8V range)
Technical Details
- Memory: 200 KB work memory and 4 MB load memory
- Processing Speed: Bit operations in 0.08 μs for fast response
- Analog Input Range: 0–10 V, input resistance ≥100kΩ
- Analog Output Range: 0–20 mA
- Operating Temperature: -20°C to 60°C
- Protection: IP20, with CE, UL, cULus, FM, and Marine approvals
- Power Loss: Typical 12W
Installation Guide
- Mount the PLC on a DIN rail in a dry, ventilated panel.
- Connect 24V DC power to L+ and M terminals.
- Use shielded cables for analog signals to reduce noise.
- Keep output loads within rated 2A per relay channel.
Package Includes
- 1 × Siemens CPU 1215C (6ES7215-1HG40-0XB0)
- User manual and setup guide
- Packed size: 13.8 × 11.1 × 8.3 cm, Net weight: 0.434 kg
Shipping & Delivery
FAQ
- Q: Which software supports this PLC?
A: It works with Siemens STEP 7 V18 or newer. - Q: How many expansion modules can I connect?
A: Up to 3 communication modules and 8 signal modules. - Q: Does it support OPC UA communication?
A: Yes, with a basic runtime license.
