Siemens 6SE7011-5EP60-Z | Frequency Converter Drive Masterdrives

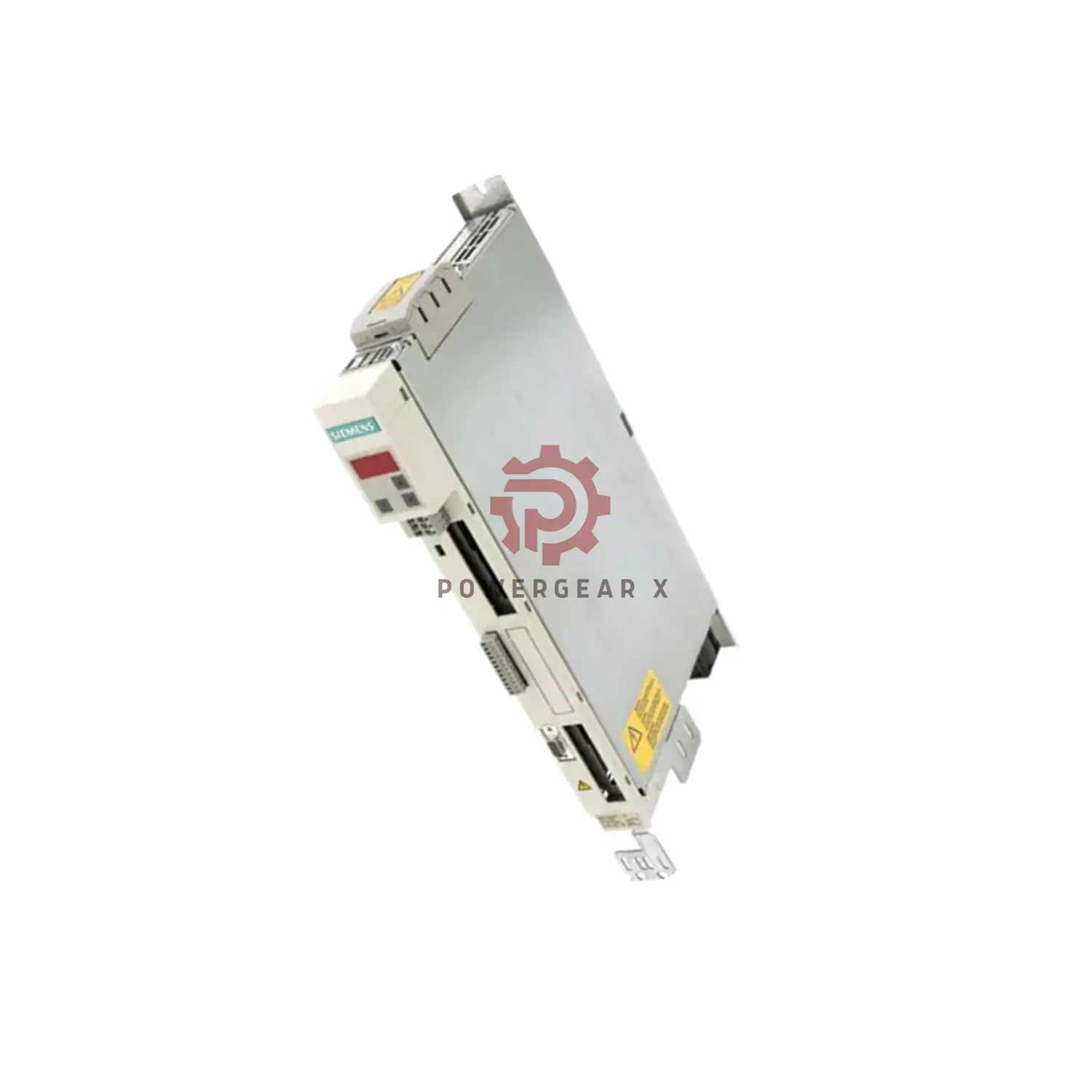

Siemens 6SE7011-5EP60 Masterdrive Frequency Converter

Compact power control for motors up to 0.55kW. Perfect for industrial automation with vector control technology.

Technical Specifications

• Model: 6SE7011-5EP60
• Power: 0.55kW (0.5HP)
• Current: 1.5A nominal
• Voltage: 3AC 380-480V, 50/60Hz
• Braking: 10A max chopper current
• Protection: IP20
• Weight: 3.4kg (compact design)

Key Features

• ⚡ Vector control for precise motor speed
• 🛡️ Built-in brake chopper (10A max)
• 📦 Compact Plus design saves space
• 🔄 50/60Hz automatic adaptation

Braking Performance

• Continuous: 1.25kW
• Short-time: 7.5kW (3s)
• Rated: 5kW (20s)
• Min resistor: 80Ω

Warranty & Shipping

• 12-month warranty
• Worldwide delivery: FedEx, UPS, DHL

Expert FAQs

• Q: Motor compatibility?
  A: Works with standard 3-phase motors
• Q: Voltage fluctuation tolerance?
  A: Handles 380-480V range
• Q: Cooling requirements?
  A: Natural convection (no fan needed)
• Q: Installation orientation?
  A: Vertical mounting recommended
• Q: Programmable parameters?
  A: Yes – speed, acceleration, deceleration
