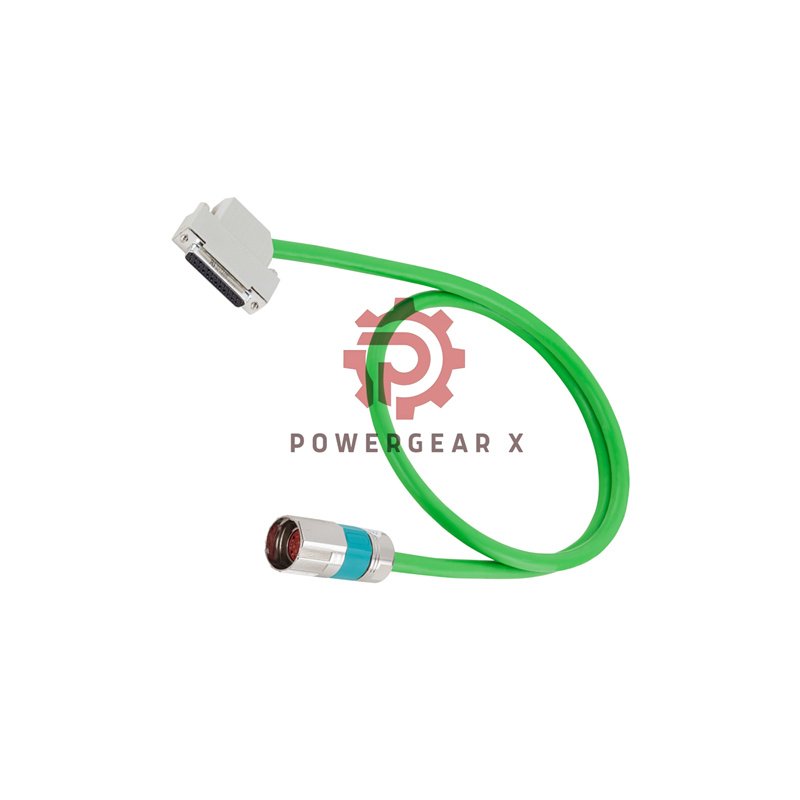

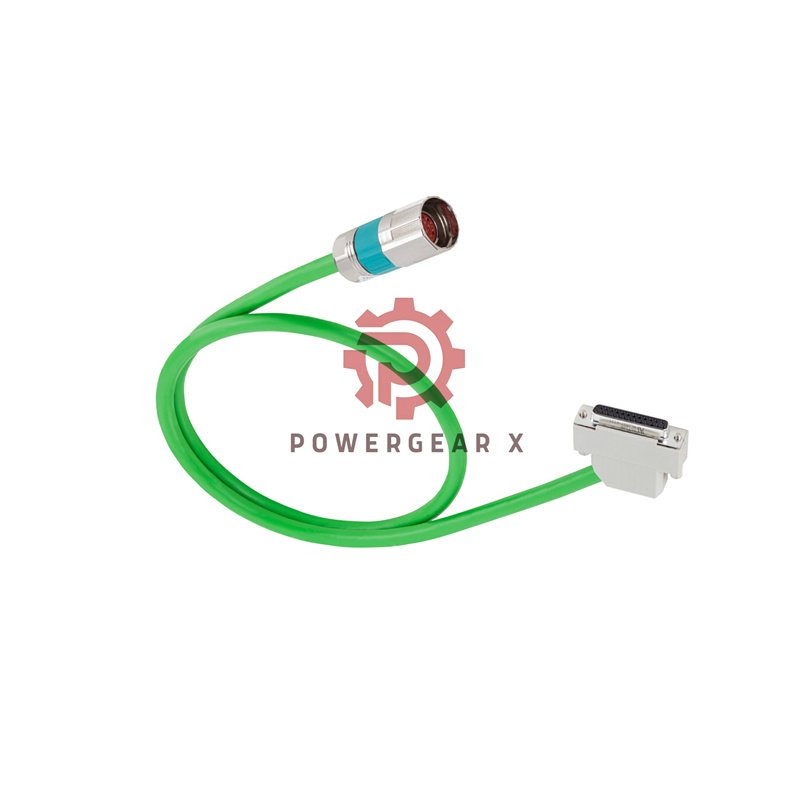

6FX8002-2CF02-1DA0 | Motion Connect 800PLUS Feedback Cable
Powergear X Automation offers the 6FX8002-2CF02-1DA0 Motion Connect 800PLUS.
This cable is built for long life and stable feedback. It fits servo drives and resolvers.
- Article No.: 6FX8002-2CF02-1DA0
- Type: Motion Connect 800PLUS
- Length: 30.0 m
- Sensor: Resolver, 2-pole
- Signal test voltage: 500 V (rms)
- Rated power voltage: 30 V (EN 50395)
- Motor-side connector: M23 full thread
- Converter-side connector: SUB-D
- Max outer dia: 9.2 mm
- Min bend radius (fixed): 4 × Dmax
- Min bend radius (flexible): 70 mm
- Bend cycles: up to 10,000,000
- Max travel speed: 300 m/min
- Max horiz accel: 50 m/s²
- Tensile stress (fixed): 50 N/mm²
- Tensile stress (flexible): 20 N/mm²
- Torsion: ±30°/m
- Sheath: PUR, green (RAL 6018)
- Insulation: no CFC, no silicone
- Fire test: EN 60332-1-1 to 1-3
- Oil test: EN 60811-2-1
- Certs: UL758 / cURus (AWM), CSA-C22.2-N.210.2-M90
- Warranty: 12 months
- Shipping: FedEx / UPS / DHL
Key Selling Points
- Built for heavy use and long duty.
- High flex life up to 10M cycles.
- Small outer dia. Easy fit in trays.
- Good oil and flame resistance.
- Stable signal at high speed.
- Works in low and high temps.
- Pre-made ends save fit time.
Extra Tech Specs (More)
- Operating temp (fixed): -50 °C to +80 °C
- Operating temp (moving): -20 °C to +60 °C
- Module-end connector temp: -40 °C to +80 °C
- Motor-end connector temp: -20 °C to +80 °C
- Core type: Shielded signal + power cores
- Outer color: DESINA green (HD22.10 S2)
- Nominal insulation resistance: industry standard
Applications
- Servo drives and motion systems
- Robots and pick-and-place arms
- CNC machines and mills
- Packaging lines and conveyors
- Automated test rigs
Frequently Asked Questions (FAQ)
- Q1: Is this cable fit for use in cable carriers?
- A1: Yes. It is made for moving use and cable trays. Rated for up to 10 million bends.
- Q2: Can I cut and re-terminate the ends?
- A2: You can, but we advise factory ends for best signal and seal. Custom ends are available.
- Q3: Will it work at low temps?
- A3: Yes. Fixed cable use down to -50°C. Moving use down to -20°C.
- Q4: Is the sheath oil-proof?
- A4: Yes. The PUR sheath meets oil resistance tests per EN 60811.
- Q5: Do you ship worldwide?
- A5: Yes. We ship by FedEx, UPS, or DHL. Contact us for rates.
