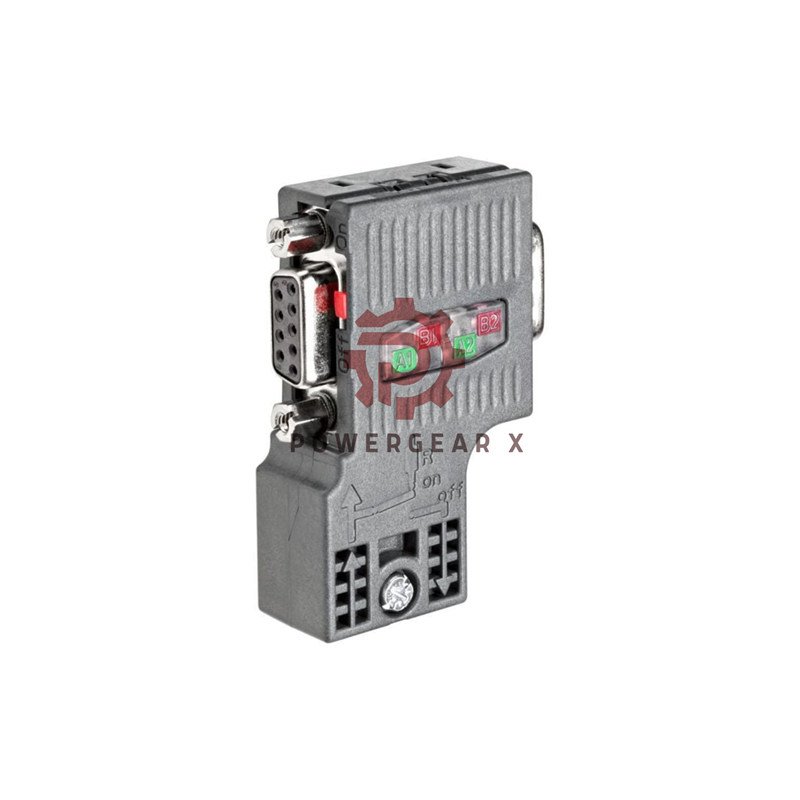

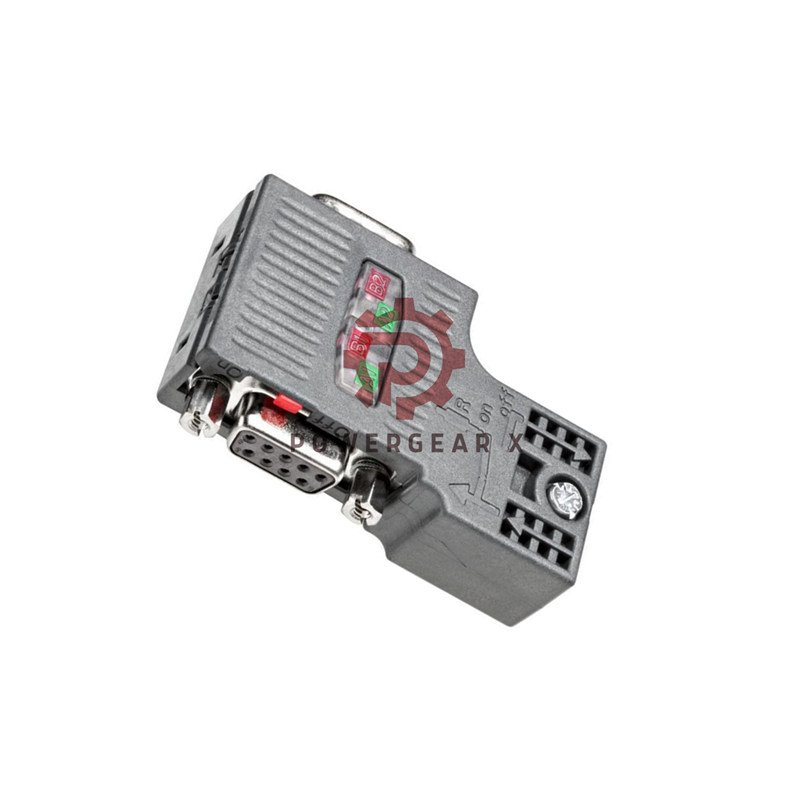

Siemens 6ES7972-0BB52-0XA0 PROFIBUS Connector Overview
The Siemens 6ES7972-0BB52-0XA0 is a durable 90° PROFIBUS connector featuring FastConnect technology and a built-in PG socket. Designed for SIMATIC DP systems, it ensures fast installation, secure data transfer, and long-lasting performance in industrial environments.
Key Features
- Supports PROFIBUS DP speeds from 9.6 kbit/s up to 12 Mbit/s
- 90° cable outlet for compact installations
- FastConnect insulation displacement method
- Integrated PG socket for easy programming access
- Built-in termination resistor with slide switch control
- Rugged plastic housing with screw locking mechanism
- Lightweight design — only 45 g
- Operating temperature: -25°C to +60°C
- Storage and transport temperature: -40°C to +70°C
- Protection class: IP20
- RoHS and UL compliant
Technical Specifications
- Part Number: 6ES7972-0BB52-0XA0
- Type: PROFIBUS RS485 FastConnect Plug
- Cable Connection: 2-core PB FC installation cable
- Connector Type: 9-pin Sub-D
- Dimensions: 15.8 × 59 × 35.6 mm (W×H×D)
- Housing Material: High-grade industrial plastic
- Weight: 45 g
- IP Rating: IP20
- Certifications: RoHS, UL
Why Choose Siemens 6ES7972-0BB52-0XA0?
- Quick installation using FastConnect
- Reliable connection for industrial PROFIBUS networks
- Compact 90° outlet design saves panel space
- Enhanced signal stability with integrated resistor
- Designed for long service life in harsh conditions
- Backed by Powergear X Automation with a 12-month warranty
- Worldwide delivery via FedEx, UPS, and DHL
Contact & Support
For technical support or bulk inquiries:
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Frequently Asked Questions (FAQ)
- Q1: What cable type is compatible with the Siemens 6ES7972-0BB52-0XA0?
- A1: It works with 2-core PROFIBUS FastConnect cables using the insulation displacement method.
- Q2: Can I use this connector for high-speed communication?
- A2: Yes, it supports data rates from 9.6 kbit/s up to 12 Mbit/s for PROFIBUS DP networks.
- Q3: Does the connector include a termination resistor?
- A3: Yes, it has a built-in resistor combination, switchable via a slide control.
- Q4: What environments can it operate in?
- A4: It operates between -25°C and +60°C and can be stored from -40°C to +70°C.
- Q5: Is the Siemens 6ES7972-0BB52-0XA0 RoHS compliant?
- A5: Yes, it meets both RoHS and UL standards for industrial use.
