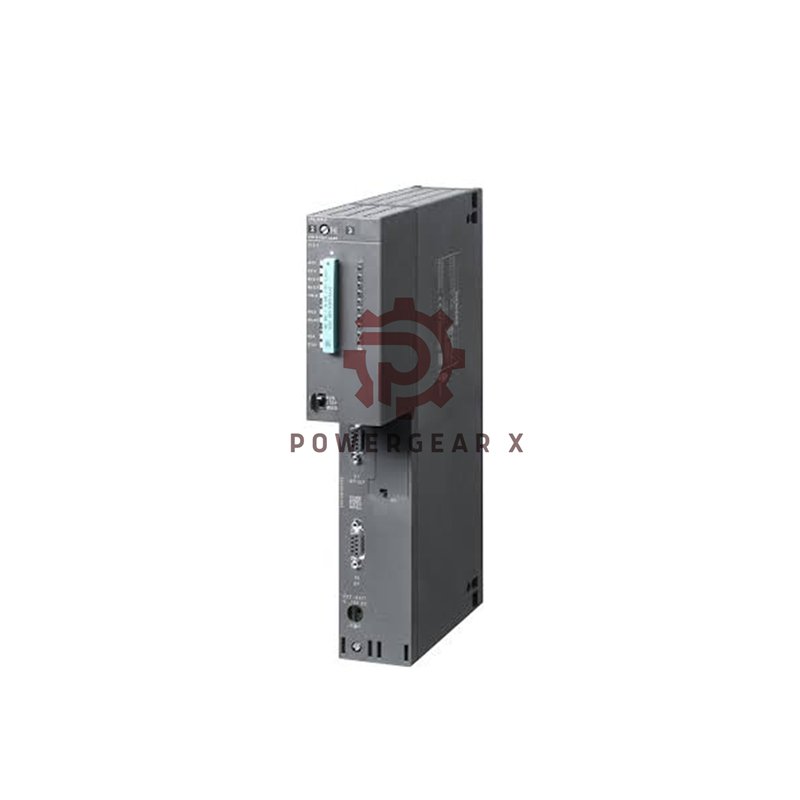

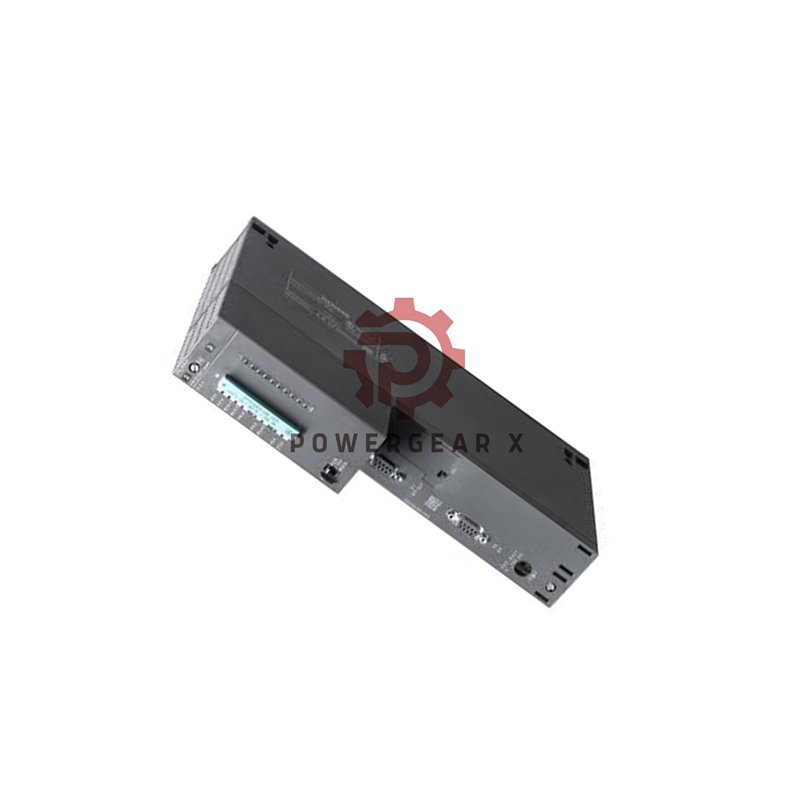

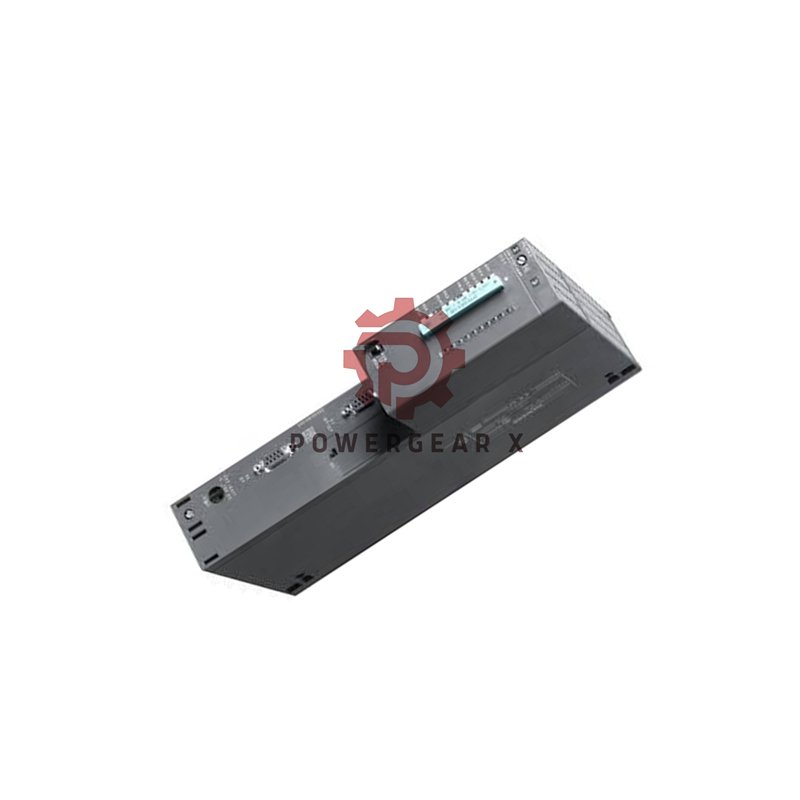

Siemens 6ES7416-3XS07-0AB0 CPU 416-3 – High-Performance SIMATIC S7-400 Processor
Powergear X Automation introduces the Siemens 6ES7416-3XS07-0AB0, a robust SIMATIC S7-400 CPU 416-3 with 16 MB memory and three integrated interfaces, built for complex automation tasks and high data throughput.
Core Technical Overview
- Model: CPU 416-3
- Memory: 16 MB (8 MB program / 8 MB data)
- Interfaces: MPI/DP 12 Mbit/s, PROFIBUS DP, plug-in IFM
- Firmware: Version V7.0
- Dimensions: 30.30 × 23.30 × 6.60 cm
- Weight: 1.031 kg
- Power loss: Max. 6.5 W
- Voltage Supply: Via system power supply (DC)
Performance Features
- Bit operation time: 12.5 ns
- Floating point arithmetic: 25 ns
- Supports CiR configuration in RUN
- Max I/O area: 16 KB input / 16 KB output
- Process image size adjustable up to 16 KB
- Max 10,000 data blocks (DB)
- 256 global data connections supported
Reliability and Expansion
- Battery backup for all data
- Supports memory card up to 64 MB (FEPROM or RAM)
- Up to 21 expansion units
- Multicomputing: Up to 4 CPUs in one system
- Up to 95 connectable operator panels
- Clock synchronization via MPI and PROFIBUS
Connectivity Options
- Supports PROFIBUS DP master/slave and MPI
- Max transmission rate: 12 Mbit/s
- Up to 32 DP slaves per master
- Global Data Communication supported
- ISO-on-TCP via CP 443-1 for Ethernet integration
Product Benefits
- Fast and stable for large-scale industrial control
- High-speed data processing with low cycle times
- Expandable memory and communication options
- Ideal for process automation and distributed systems
- Reliable operation with advanced synchronization
Warranty & Delivery
- Warranty: 12 Months
- Global shipping via FedEx, UPS, or DHL
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Frequently Asked Questions (FAQ)
- Q1: What makes the 6ES7416-3XS07-0AB0 suitable for heavy automation?
- A1: It features a 16 MB memory and three fast communication interfaces for large-scale control systems.
- Q2: Does it support real-time communication?
- A2: Yes, it supports isochronous mode over PROFIBUS for precise synchronization.
- Q3: How can memory be expanded?
- A3: Through Siemens memory cards, supporting up to 64 MB FEPROM or RAM.
- Q4: What software is needed for programming?
- A4: STEP 7 V5.4 or higher with HSP 261 support is recommended.
- Q5: Is battery backup included?
- A5: Yes, it provides full battery backup for all memory data.
Additional Product Data
- Engineering Tool: STEP 7
- Backup current: 180 µA typ., 850 µA max.
- Clock accuracy: ±1.7 s/day
- Operating hours counters: 16 total
- Supported protocols: S7 Communication, Routing, GD
