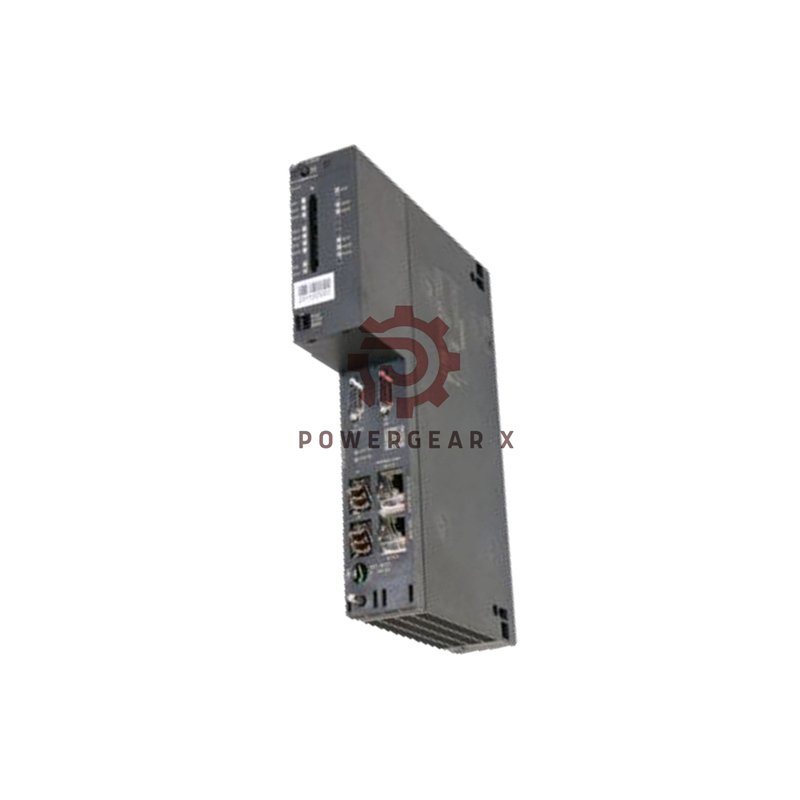

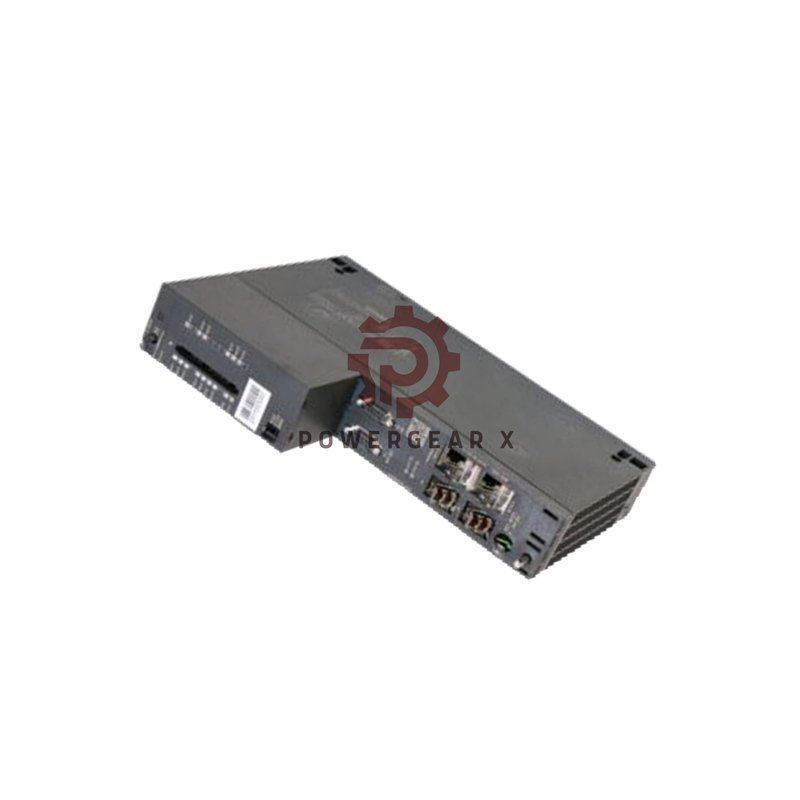

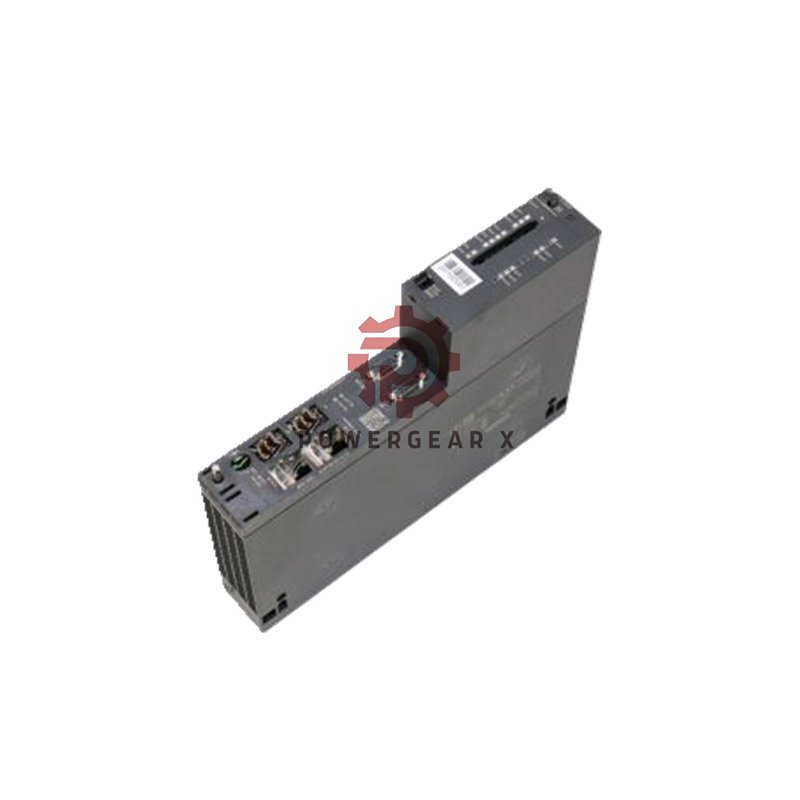

Powergear X Automation Presents: SIMATIC S7-400H CPU 414-5H PN/DP
Discover the SIMATIC S7-400H system from Siemens. This high-availability fault-tolerant PLC delivers robust performance. The CPU 414-5H PN/DP ensures maximum uptime for critical automation. It provides reliable operation in demanding industrial environments.
Core Technical Specifications
- Brand: Siemens
- Model: CPU 414-5H PN/DP (6ES7414-5HM06-0AB0)
- Memory: 4 MB total work memory
- Program Memory: 2 MB dedicated capacity
- Data Memory: 2 MB dedicated space
- Load Memory: Expandable to 64 MB with FEPROM Card
Processing Performance
- Bit Operations: 18.75 ns processing speed
- Word Operations: 18.75 ns execution time
- Floating Point: 37.5 ns calculation speed
- Integrated Interfaces: 5 total connections available
- MPI/DP Interface: 1 port for network communication
Communication Capabilities
- PROFIBUS DP Master: Two integrated interfaces
- Transmission Speed: Up to 12 Mbit/s rate
- PROFINET IO Controller: Dual-port capability
- Ethernet Speed: 100 Mbit/s maximum rate
- Synchronization Modules: Two fiber optic ports
System Expansion
- Expansion Units: Maximum 21 units supported
- DP Slaves: Up to 96 devices connectable
- PROFINET Devices: 256 IO Devices maximum
- Digital Channels: 65,536 points available
- Analog Channels: 4,096 points supported
Programming Features
- Programming Software: STEP 7 V5.5 SP2 or higher
- Supported Languages: LAD, FBD, STL, SCL
- Additional Languages: CFC, GRAPH, HiGraph®
- Blocks Capacity: 6,000 DBs, 3,000 FBs, 3,000 FCs
- Diagnostic Buffer: 3,200 entries maximum
Frequently Asked Questions
- What applications suit this CPU best?
- Critical processes requiring continuous operation and redundancy.
- Can I modify the system during operation?
- Yes, Configuration in RUN allows online changes.
- What memory expansion options exist?
- FEPROM Memory Cards support up to 64 MB capacity.
- How many communication connections?
- 64 total connections with flexible allocation.
- Is PROFINET redundancy supported?
- Media redundancy with 200 ms switchover time.
Shipping & Packaging Information
- Package Contents: CPU unit and documentation
- Shipping Methods: FedEx, UPS, DHL available
- Package Weight: Approximately 995 grams
- Unit Dimensions: 50 x 290 x 219 mm (W x H x D)
- Global Delivery: Express shipping with tracking
