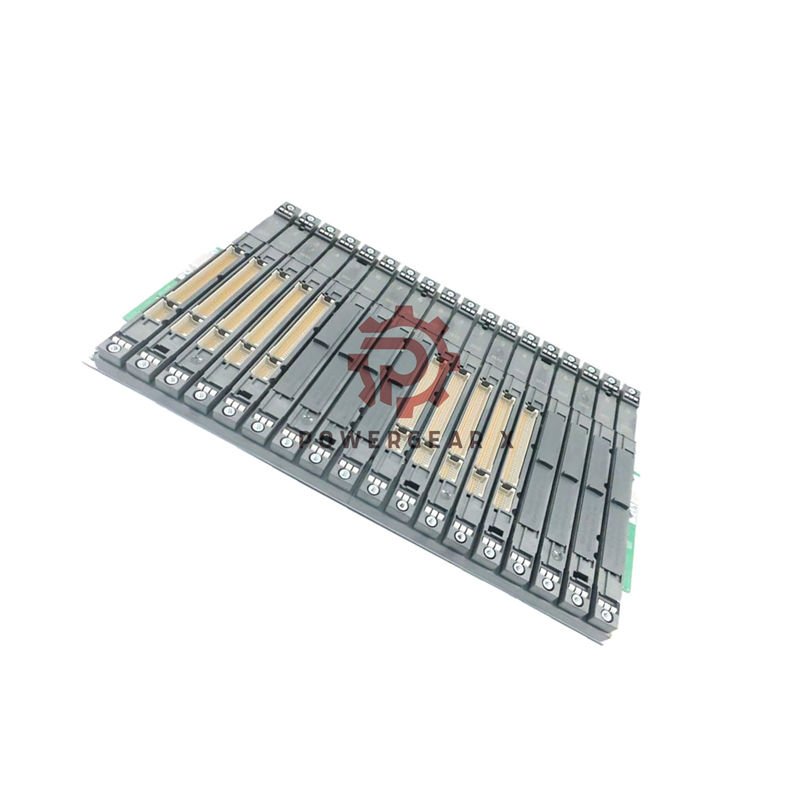

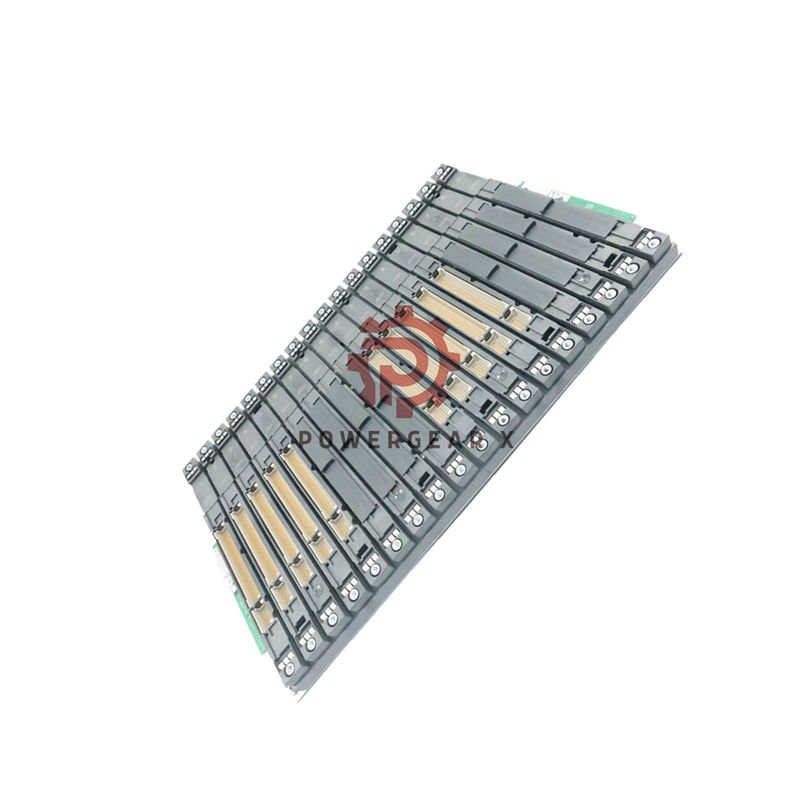

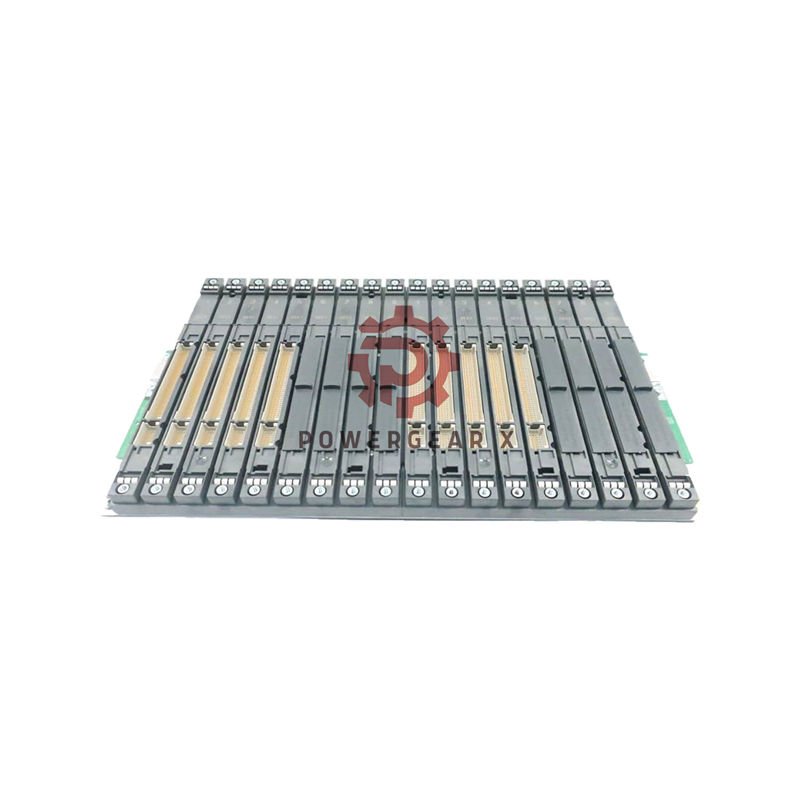

Siemens 6ES7400-2JA00-0AA0 — S7-400H UR2-H Rack Overview
The Siemens 6ES7400-2JA00-0AA0 UR2-H rack is built for the SIMATIC S7-400H control system. It combines high reliability, modular expansion, and stable communication performance. Authored by Powergear X Automation.
Main Highlights
- Provides 18 total slots in two independent segments, each with 9 slots.
- Equipped with separate communication and P-bus channels for data safety.
- Ideal for both central and distributed configurations in industrial systems.
Key Specifications
- Brand: Siemens
- Model: 6ES7400-2JA00-0AA0
- Series: S7-400H UR2-H
- Number of slots: 18 (2 × 9 segments)
- Width: 482.5 mm | Height: 290 mm | Depth: 27.5 mm
- Approximate weight: 4.1 kg
- Operational temperature: 0–60 °C
- Storage/transport range: 0–70 °C
- CE, UKCA, UL, FM, RCM, KC, EAC, and CCC certified
Performance Benefits
- Dual-bus design ensures redundant data paths for high system availability.
- Robust aluminum frame maintains stability under industrial vibration and heat.
- Wide operating range suitable for heavy-duty automation or distributed installations.
- Complies with multiple international safety and performance standards.
Installation and Use
- Supports quick rack mounting using standard S7-400H fix points.
- Maintain ambient air circulation between slots for best cooling efficiency.
- Combine with Siemens power and communication modules for system redundancy.
- Service-friendly layout simplifies maintenance and signal routing.
Warranty & Logistics
- Warranty period: 12 months from purchase date.
- Ships via FedEx, UPS, or DHL for reliable global delivery.
- Packaging includes anti-static protection and reinforced carton for safe transit.
Technical Advantages
- Dedicated grounding rails reduce interference and improve signal accuracy.
- Separated bus structure enhances communication stability between modules.
- Designed for Siemens redundancy processors to ensure continuous operation.
- High durability connectors tested for thousands of insertion cycles.
Professional FAQ
- Q: Can I use the UR2-H rack in a mixed S7-400H and S7-400F setup?
A: Yes, as long as all installed modules are compatible with redundant operation and safety configuration. - Q: How can I check if both rack segments communicate correctly?
A: Monitor system diagnostics in Step 7 or TIA Portal; communication status appears under rack diagnostics. - Q: What is the best way to maintain heat dissipation?
A: Keep at least 30 mm clearance above and below the rack, and avoid covering vent areas. - Q: Does the rack support hot swapping of CPU modules?
A: Hot swapping is possible in redundant systems when properly configured with backup synchronization. - Q: How do I prevent noise in long distributed installations?
A: Use shielded backplane connectors and route grounding cables separately from power lines.
