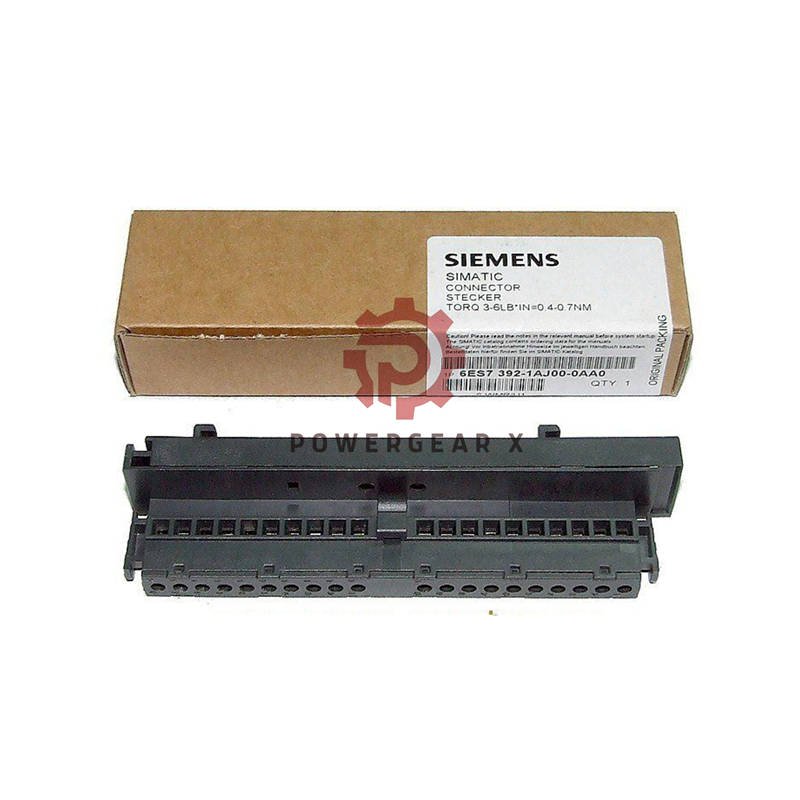

Siemens 6ES7392-1AJ00-0AA0 Front Connector
This Siemens connector links signal modules to field devices. The 6ES7392-1AJ00-0AA0 uses reliable screw terminals. It fits all SIMATIC S7-300 series PLCs. This 20-pin connector ensures secure electrical connections.
Electrical Specifications
- Part Number: 6ES7392-1AJ00-0AA0
- Terminal Type: Screw Connectors
- Wire Size: 0.25 – 1.5 mm²
- AWG Range: 24 – 16
- Stripped Length: 6 mm
- Tightening Torque: 0.4 – 0.7 N·m
- Tool Required: 3-3.5 mm screwdriver
- Contact Points: 20 Poles
Physical Dimensions
- Width: 23 mm
- Height: 131 mm
- Depth: 36 mm
- Weight: 70 grams
- Package Size: 5.63 x 1.65 x 1.14 inch
- Package Weight: 0.152 lb
- Operating Temp: 0°C to 60°C
- Storage Temp: -40°C to 70°C
Installation Features
- Screw terminals for secure connections
- Accepts single or paired wires
- Works with ferrules for better contact
- Clear marking for easy wiring
- Durable industrial construction
- Quick installation design
- Compact space-saving shape
- Vibration-resistant terminals
Service & Support
- Warranty: 12 Months Full Coverage
- Shipping: FedEx, UPS, DHL Express
- Compatibility: S7-300 Signal Modules
- Standards: DIN 46228 Compliant
- Delivery: Usually 1-2 Days
- Origin: Genuine Siemens Part
- Package: Individual Protective
- Support: Technical Assistance
Expert Questions
- Q: What PLC systems use this connector?
A: It works with all SIMATIC S7-300 signal modules. - Q: What wire sizes can it handle?
A: It accepts 0.25 to 1.5 mm² cables. - Q: What tools do I need for installation?
A: Use a standard 3-3.5 mm screwdriver. - Q: Can I use two wires in one terminal?
A: Yes, if their total cross-section is under 1.5 mm². - Q: What temperature can it withstand?
A: It operates from 0°C to 60°C.
