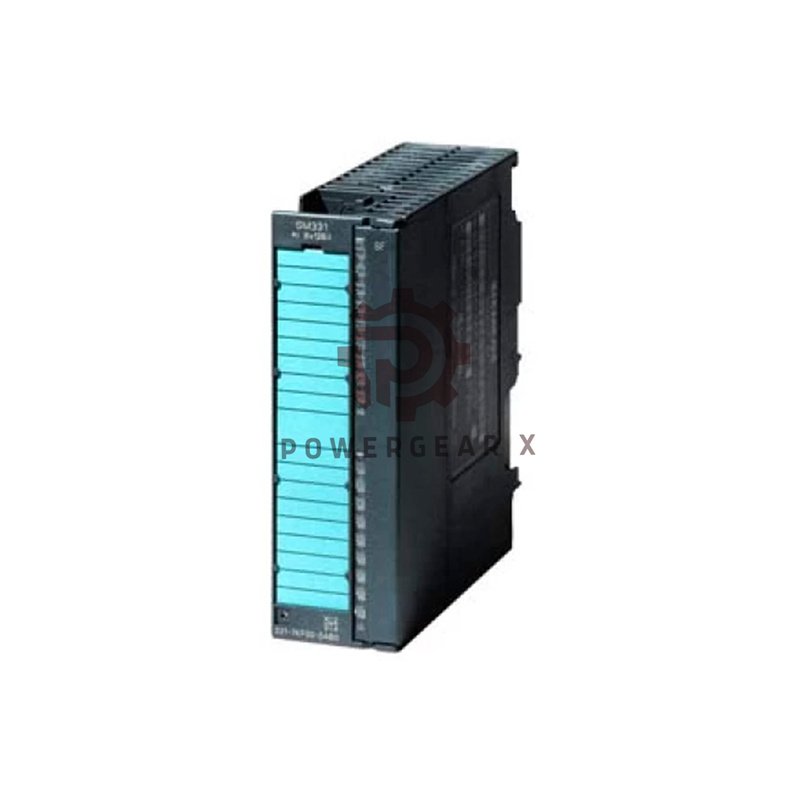

Siemens 6ES7331-7PF01-0AB0 Isolated Analog Input Module
Author: Powergear X Automation
Overview
The Siemens 6ES7331-7PF01-0AB0 is an 8-channel isolated analog input card for the S7-300 system.
It reads RTD and resistance signals with stable accuracy.
It works in many control jobs that need clean and safe sensor input.
Main Features
- 8 channels for RTD and resistance input
- 500 V DC isolation tested for safety
- Noise filtering for 50/60/400 Hz
- 2-wire, 3-wire, 4-wire support
- 16-bit resolution with overrange
- Works with Pt, Ni, Cu RTDs
- Fast to slow conversion time options
Technical Specs
- Brand: Siemens
- Model: 6ES7331-7PF01-0AB0
- Type: Analog input for S7-300
- UPC: 662643177916
- Weight: 0.17 kg
- Isolation: 500 V DC
- Accuracy: ±0.1% (resistor)
- Basic Accuracy: ±0.05% (resistor)
- Max Cable: 200 m shielded
- Cycle Time: 10–190 ms
- Power Use: 240 mA from L+
- Backplane Load: 100 mA
- Dimensions: 40 × 125 × 120 mm
- Vibration: 5 g
- Humidity: 10–90% non-condensing
- Heat Loss: 1.8 W
Value Points
- Strong isolation protects PLC circuits
- Wide sensor support cuts spare parts cost
- Stable readings in high-noise plants
- Fast troubleshooting with built-in alarms
- Low power use keeps panel cool
Warranty & Shipping
- 12-month warranty from ship date
- FedEx, UPS, DHL global delivery
- Warranty covers defects in normal use
Professional FAQ
How long does setup take for first use?
Most users finish mapping all channels in under 20 minutes.
Can it run near high-power inverters?
Yes, but keep sensor cables away from motor lines to cut noise.
What issue appears most in the field?
Wrong wiring mode (2/3/4 wire) is the most common cause of drift.
How can I reduce signal jump?
Use tight shield grounding and slow the filter time.
Will it work in long-run cable jobs?
Yes, shielded cable up to 200 m is supported if grounded well.
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Short Product Description
- Siemens 6ES7331-7PF01-0AB0 8-channel isolated RTD/resistance input
- 500 V isolation, noise filtering, 16-bit resolution
- For S7-300 automation systems
