Siemens 6ES7214-2AD23-0XB0 CPU Module | S7-200 224XP PLC with Analog I/O

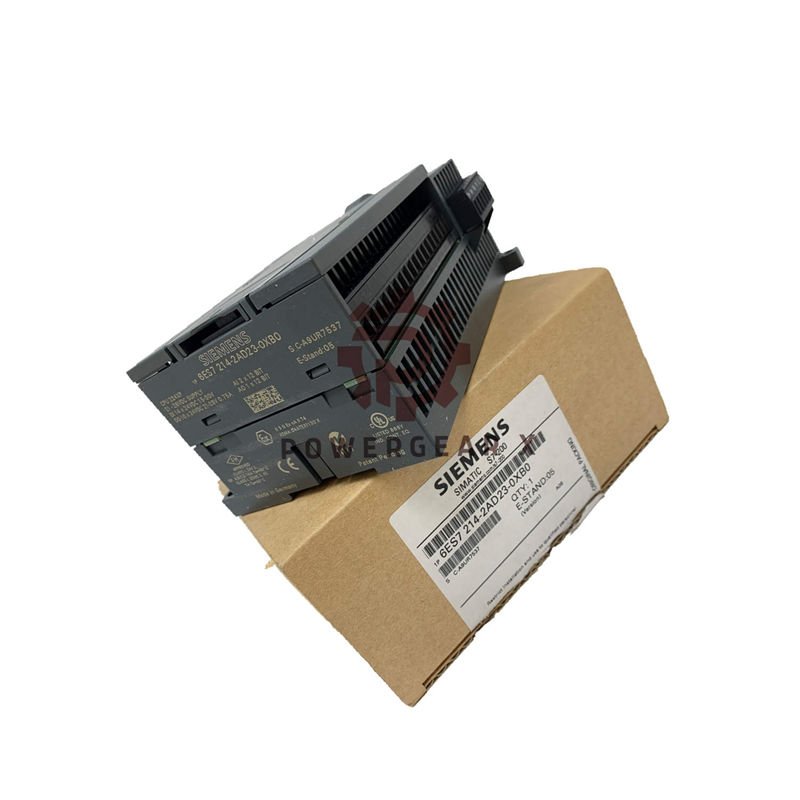

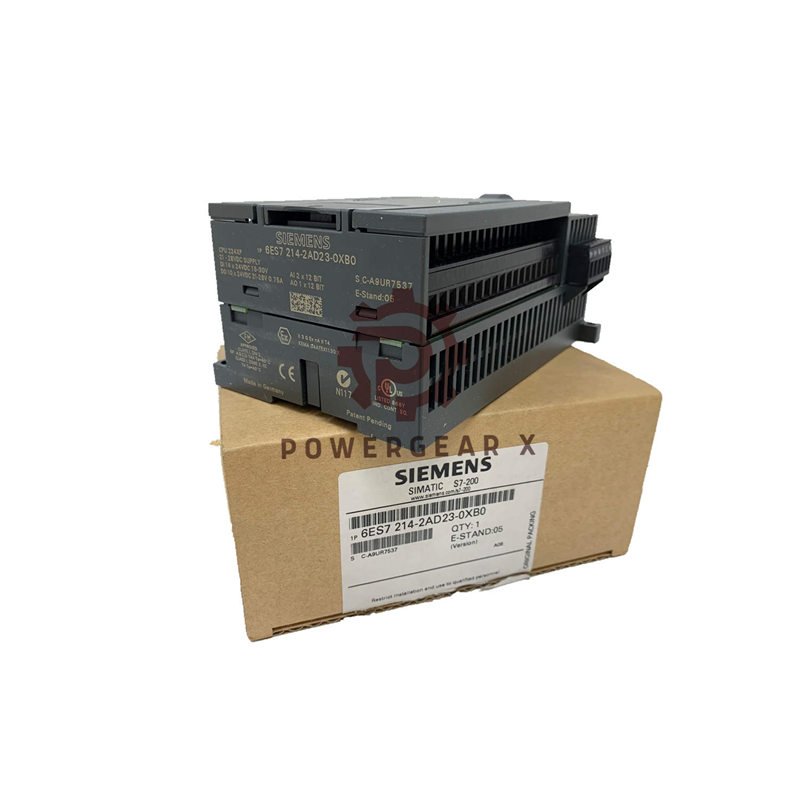

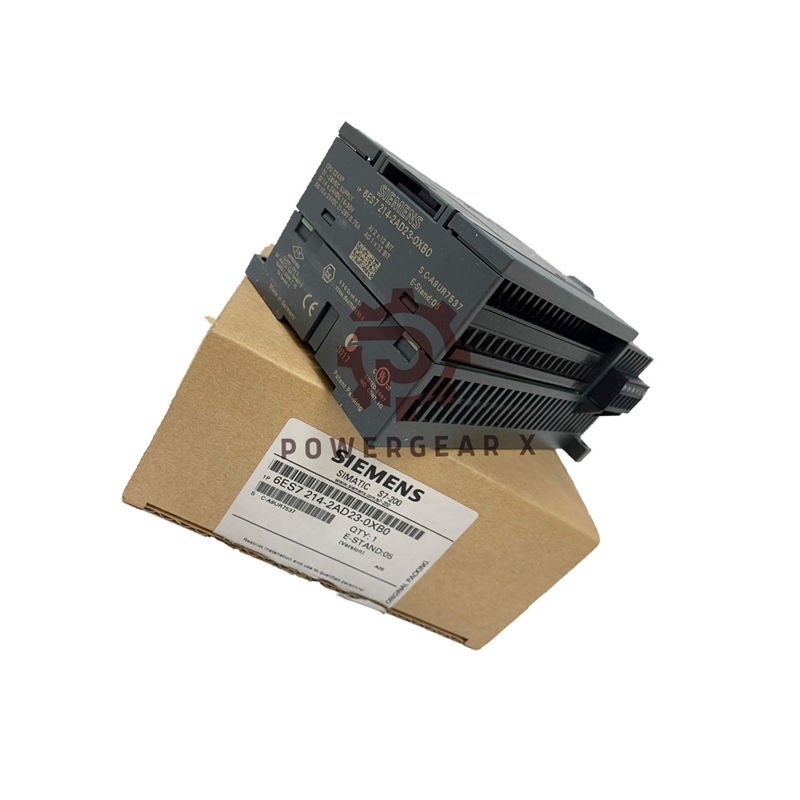

Siemens 6ES7214-2AD23-0XB0: Your Compact PLC Solution

The Siemens 6ES7214-2AD23-0XB0 is a powerful, compact CPU from the SIMATIC S7-200 series. This all-in-one unit handles digital and analog I/O with ease. It’s the ideal controller for small to medium automation tasks.

Powerful Features at a Glance

• Integrated I/O: 14 digital inputs, 10 digital outputs, 2 analog inputs, and 1 analog output.
• High-Speed Processing: Fast 0.22 µs bit operation time for quick response.
• Built-in Connectivity: Two communication ports for PPI, MPI, or Freeport protocols.
• Pulse & Counting: 2 high-speed pulse outputs (100 kHz) and 6 counters (200 kHz).
• Expandable System: Connect up to 7 expansion modules for more I/O.

Detailed Specifications

Core Identification

• Brand & Model: Siemens 6ES7214-2AD23-0XB0
• Series: SIMATIC S7-200
• Type: CPU 224XP Compact Unit

Power & Memory

• Supply Voltage: 24 V DC (20.4 – 28.8 V range)
• Program Memory: 16 KB
• Data Memory: 10 KB
• Backup: Integrated super capacitor (~100 hours)

Input/Output Details

• Digital Inputs (14): 24 V DC, configurable filters
• Digital Outputs (10): 24 V DC, 0.75 A each
• Analog Inputs (2): Voltage or current
• Analog Output (1): Voltage or current

Physical & Environmental

• Dimensions: 140 x 80 x 62 mm
• Weight: 390 g
• Operating Temp: 0°C to 55°C (horizontal)
• Protection Class: IP20

Order & Support Information

• Warranty: Full 12-month warranty on all parts
• Shipping: Fast global delivery via FedEx, UPS, and DHL
• Author: Powergear X Automation

Professional FAQs

• What is the main advantage of the “XP” version?
• The “XP” adds integrated analog I/O and faster pulse outputs. This saves space and cost versus using separate modules.
• Can I connect a PC to both ports at the same time?
• Yes. Use one port for programming and the other for HMI communication. This allows monitoring without interrupting control.
• How long does the memory backup last without power?
• The super capacitor keeps data for about 100 hours. For longer backup, add an optional battery module.
• What happens if I exceed the 3.75A output group current?
• The outputs may overheat and fail. Always calculate total load current. Distribute outputs across groups if needed.
• Is the 6ES7214-2AD23-0XB0 still a good choice for new projects?
• Yes, for cost-effective solutions. For newer projects, consider S7-1200. This model is perfect for upgrades and spares.
