Product details

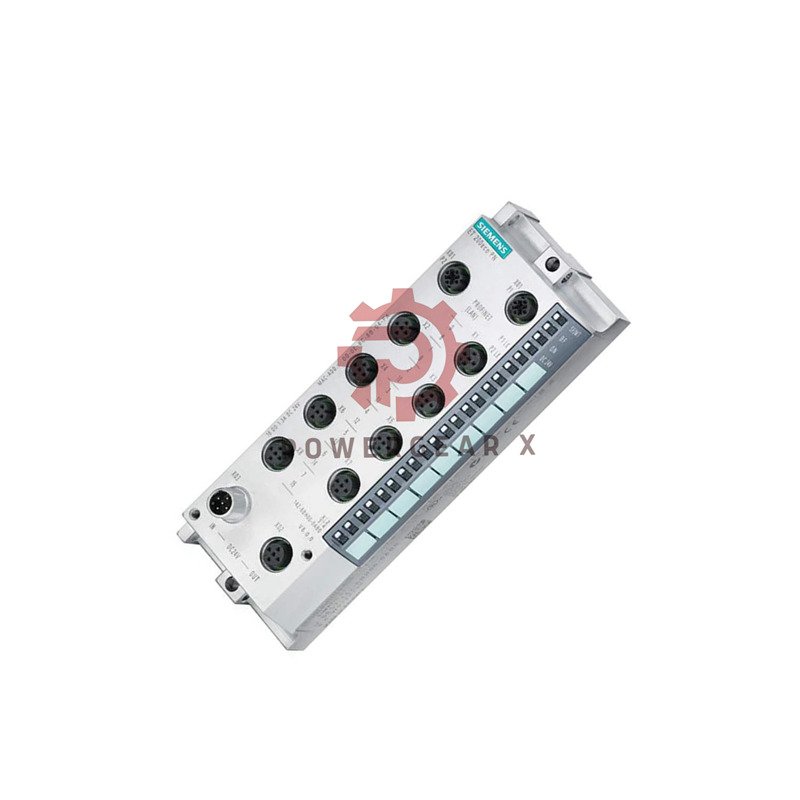

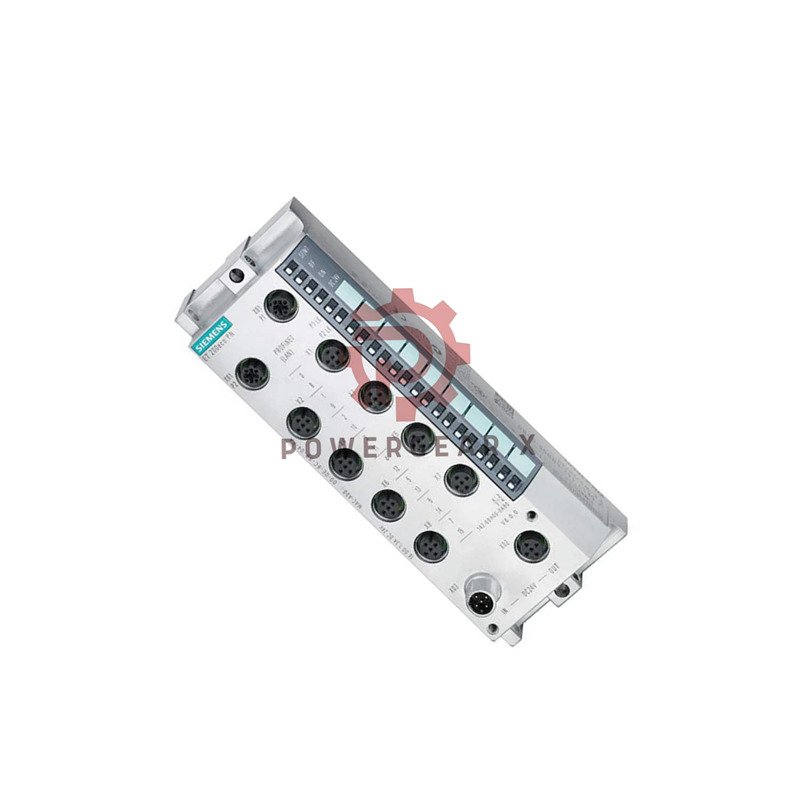

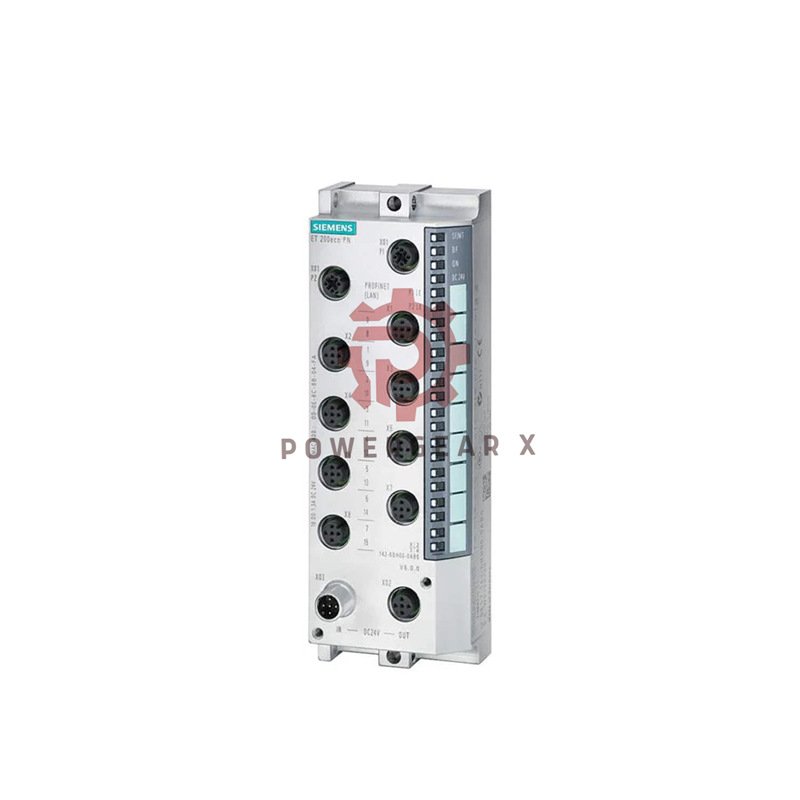

SIMATIC ET 200ECO PN Digital I/O Module
- Part Number: 6ES7147-6BG00-0AB0
- This is a SIMATIC DP module for distributed I/O systems.
- It has 8 digital inputs and 8 digital outputs in one compact unit.
- All ports use rugged M12 connectors with IP67 protection.
- It connects directly to PROFINET industrial networks.
- Perfect for mounting directly on machines in harsh areas.
Main Product Advantages
- Saves Space & Cost: Combines 16 channels in one slim module.
- Extremely Robust: IP65/67 rating for dust and water resistance.
- Easy Wiring: M12 connectors enable fast, reliable cable connections.
- Network Integrated: Built-in PROFINET port with integrated switch.
- Wide Voltage Range: Works from 20.4V to 28.8V DC reliably.
Complete Technical Specifications
- Manufacturer & Model: Siemens 6ES7147-6BG00-0AB0
- Product Family: SIMATIC ET 200ECO PN
- Module Function: 8x DI / 8x DQ, DC 24V
- Supply Voltage (L+): 24 V DC (20.4 – 28.8 V DC)
- Input Current (Typical): 100 mA from system power
- Total Power Loss: Typically 6.5 Watts
- Digital Inputs (8x):
- Nominal Voltage: 24V DC
- Signal “1” Range: 11V to 30V DC
- Input Delay: 3 ms max (0->1 or 1->0)
- Digital Outputs (8x):
- Output Type: Solid-state, DC
- Rated Current: 1.3 A per channel
- Short-Circuit Protection: Yes, electronic
- Switching Frequency: Up to 100 Hz (resistive load)
- Field Connection: 8 x M12 connectors (4-pin or 5-pin)
- Network Interface: 1 x PROFINET (100 Mbit/s) via M12 port
- Integrated Network Switch: Yes, for line topology
- PROFINET Services: IRT, MRP (Media Redundancy), LLDP, DCP
- Isolation Test Voltage: 707 V DC (24 V circuits), 1500 Vrms (Ethernet)
- Housing Material: Robust plastic for industrial use
- Dimensions (WxHxD): 60 mm x 175 mm x 49 mm
- Weight: Approximately 910 grams
- Ambient Temperature: 0°C to +60°C (operation)
- Certifications: CE, ATEX (II 3G Ex nA IIC T4 / II 3D Ex tc IIIC T90°C Dc)
Simple Installation Steps
- Mount the module on a standard DIN rail or directly on the machine.
- Connect the 24V DC power supply to the L+ and M terminals.
- Use standard M12 cables to connect your sensors and actuators.
- Connect the PROFINET network cable to the M12 Ethernet port.
- Commission the device using TIA Portal or your engineering software.
Diagnostics & Maintenance
- LED indicators show power (ON), network (PN), and errors (SF/MT).
- Detailed channel diagnostics (wire break, short circuit) available via PROFINET.
- Module supports replacement without a programming device during operation.
- No fans or batteries required, maintenance-free design.
What You Will Receive
- 1 x Siemens module 6ES7147-6BG00-0AB0.
- Product is supplied in original Siemens packaging.
- Documentation is available for download online.
Our Service Commitment
- All products include a 12-month warranty against defects.
- Fast global delivery via FedEx, UPS, and DHL express services.
- Technical and commercial support is available from our team.
Frequently Asked Questions
- Q: Can I use this module in an outdoor application?
- A: Yes, its IP67 rating makes it suitable for outdoor use, protected from temporary water immersion.
- Q: What is the maximum cable length for sensors?
- A> You can use unshielded cables up to 30 meters for both inputs and outputs.
- Q: Does it require a specific brand of M12 connector?
- A: No, it works with standard industrial M12 connectors (A-coded for Ethernet, D-coded for I/O).
- Q: How do I configure the IP address?
- A: You can set it via the engineering software (TIA Portal) or using a DCP tool like PRONETA.
- Q: Can I connect a 2-wire sensor directly to a digital input?
- A: Yes, the inputs support 2-wire sensors (BERO) with a max. leakage current of 1.5 mA.
