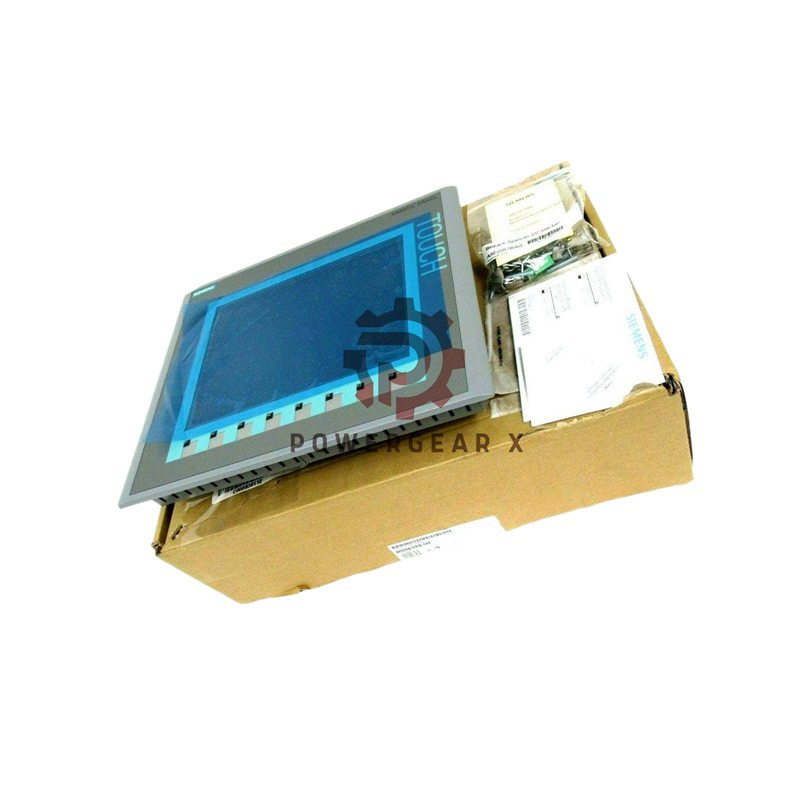

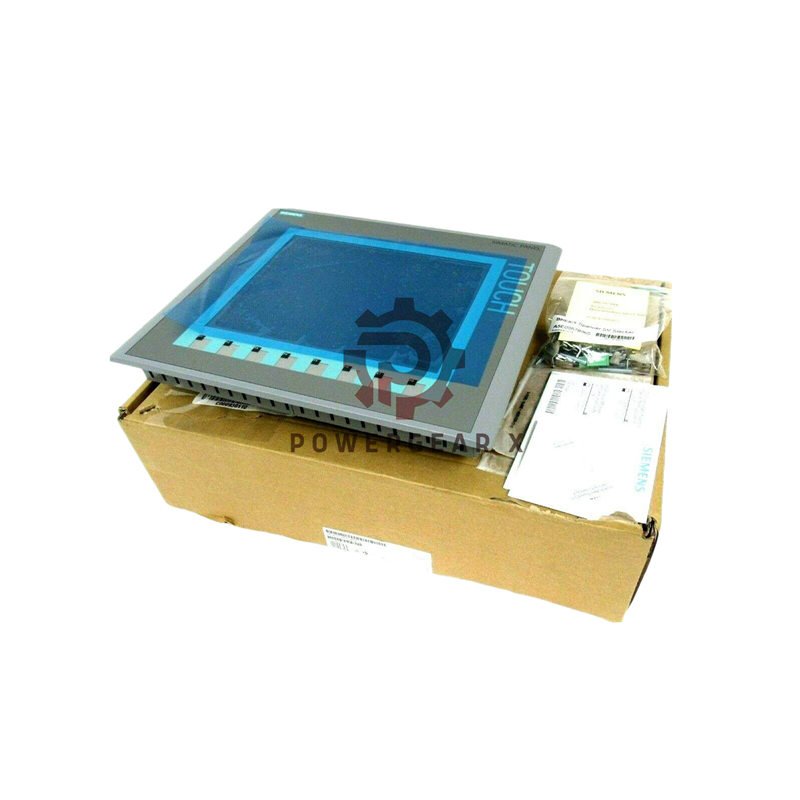

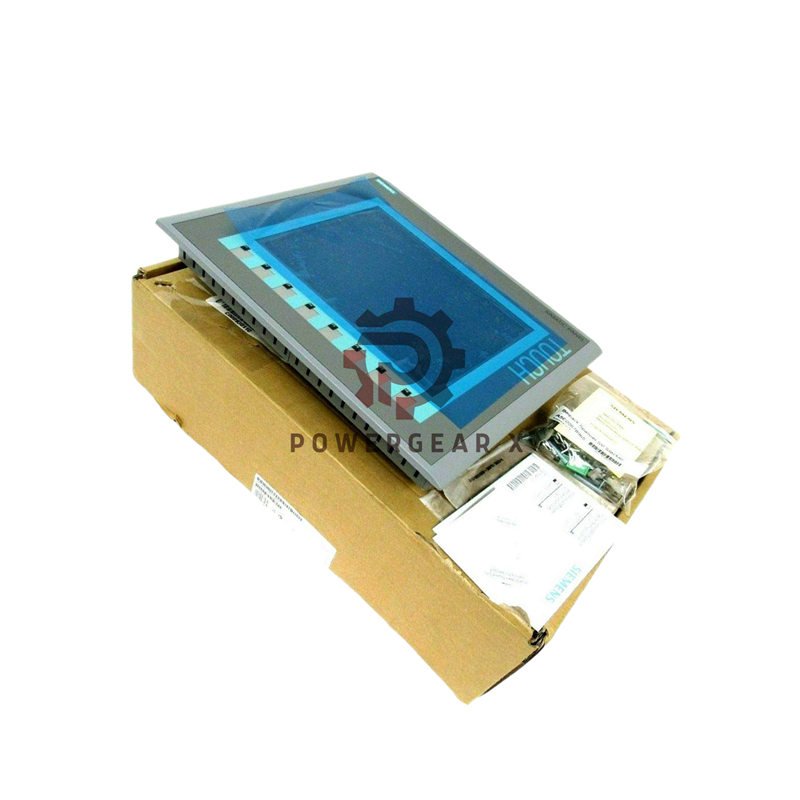

Siemens 6AV6647-0AF11-3AX0 KTP1000 Basic Color PN Overview
The 6AV6647-0AF11-3AX0 is a Siemens SIMATIC HMI panel.
It combines a 10.4-inch TFT display with both key and touch control.
The unit supports PROFINET for modern automation networks.
Designed for durability, it fits compact panels and tough conditions.
Display & Interface Features
- Display type: 10.4″ TFT, 256 colors.
- Resolution: 640 × 480 pixels for clear visibility.
- Brightness lifespan: 50,000 hours (at 25°C).
- Supports horizontal installation format only.
- Control options: Touch screen and eight function keys.
- Industrial Ethernet: 1 × PROFINET port with 2 status LEDs.
- Communication protocols: PROFINET, TCP/IP, DHCP, SNMP, LLDP, and MODBUS TCP/IP.
- EtherNet/IP support for Allen-Bradley devices.
Electrical & Processor Specifications
- Power supply: 24 V DC (19.2 V to 28.8 V range).
- Rated current: 0.6 A, typical power consumption 15 W.
- Processor: ARM RISC 32-bit high-performance processor.
- Memory: Flash + RAM with 2 MB for user data storage.
- Built-in buzzer for alerts and event notifications.
Environmental & Mechanical Design
- Front protection: IP65, back protection: IP20.
- CE, UL, KC, RCM certified; GL, ABS, BV, DNV, NK, LRS marine approvals.
- Operating temperature: 0°C to +50°C (vertical mount).
- Humidity tolerance: up to 90% relative humidity.
- Mounting position: vertical; maximum tilt 35° without ventilation.
- Enclosure material: Industrial-grade polycarbonate, vibration-resistant.
- Net weight: 3.049 kg; packaging size: 46.2 × 33.7 × 13.5 cm.
Configuration & Software Compatibility
- Configurable using WinCC flexible 2008 SP2 Compact or WinCC Basic V10.5.
- Compatible with STEP 7 Basic V10.5 and TIA Portal series.
- Supports Siemens controllers: S7-1200, S7-1500, S7-200, S7-300/400, LOGO!, and WinAC.
- Also supports Mitsubishi (MC TCP/IP) and Modicon (Modbus TCP/IP).
- Message management: 200 bit messages, 15 analog, and 256 message buffer entries.
- Recipe storage: 5 recipes with up to 20 datasets and 40 kB internal memory.
- Up to 50 configurable screens with global picture functions.
Product Advantages & Selling Points
- 10.4-inch high-contrast TFT screen ideal for indoor industrial lighting.
- Combines both touch and key operation for flexible user control.
- Fast data transmission via PROFINET and Ethernet protocols.
- Durable IP65 front ensures reliable operation in dusty and humid environments.
- Supports MODBUS TCP/IP for cross-brand compatibility.
- Preinstalled proprietary OS optimized for fast HMI response.
- 12-month warranty covering manufacturing defects and electronic failure.
- Ships worldwide with FedEx, UPS, and DHL.
FAQ
- Q: Can the 6AV6647-0AF11-3AX0 be used with older Siemens PLCs?A: Yes, it supports S7-200, S7-300, and S7-400 models through Ethernet communication.
- Q: Does this panel support USB connections?A: No, this unit has no USB ports but supports Ethernet-based transfers.
- Q: What are the power requirements for installation?A: The HMI requires a 24V DC power source within 19.2–28.8V limits.
- Q: Is the panel suitable for outdoor environments?A: It’s designed for indoor enclosures with IP65 front protection.
- Q: How is the configuration done?A: Use WinCC Basic or TIA Portal software for creating and uploading HMI projects.
