Siemens 6AV6647-0AF11-3AX0 HMI Panel | SIMATIC KTP1000

Siemens 6AV6647-0AF11-3AX0 HMI Panel Overview

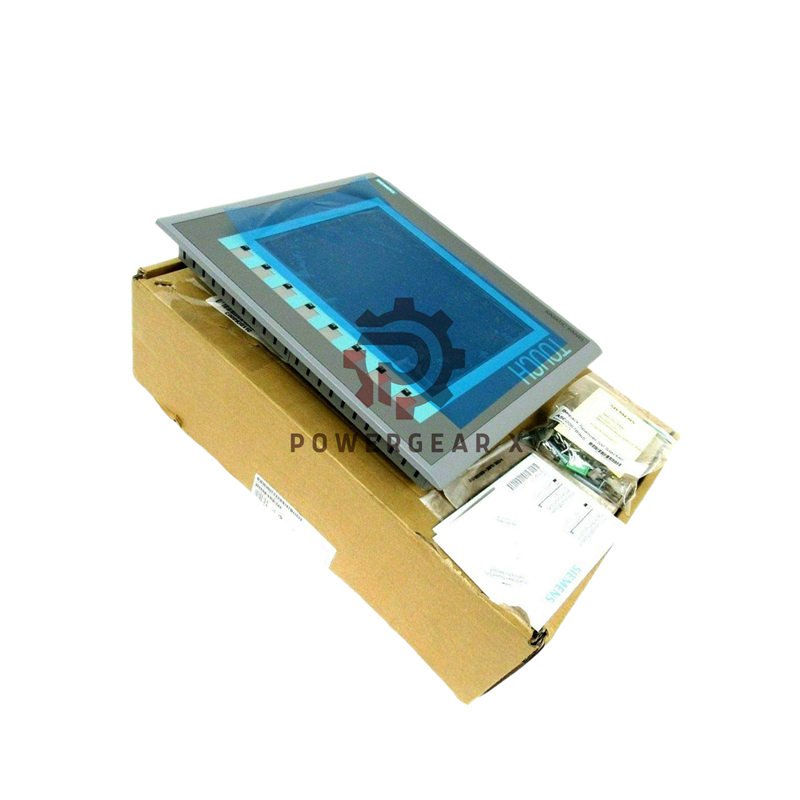

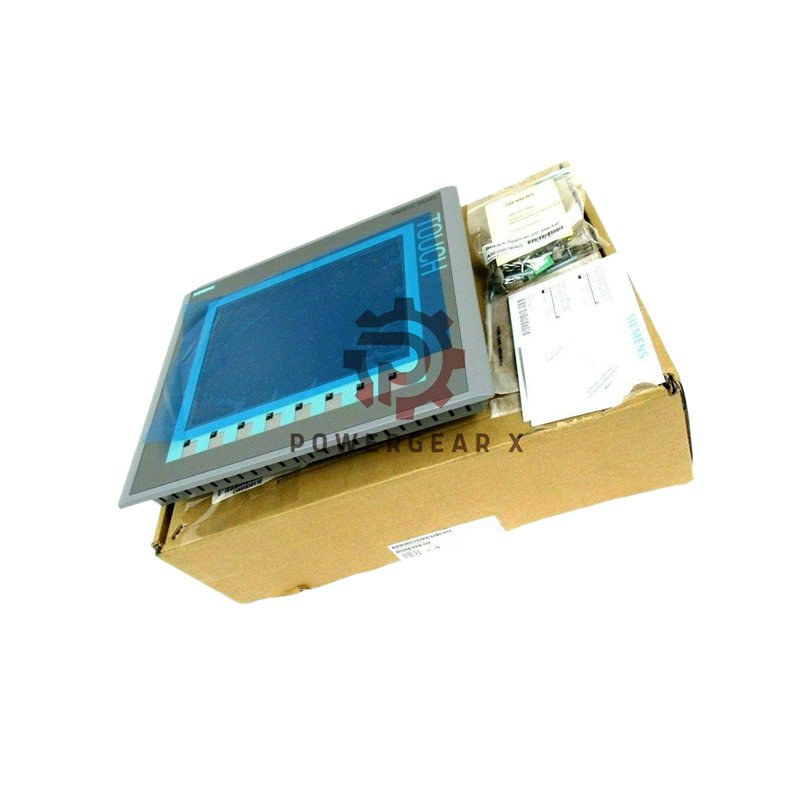

Powergear X Automation presents the Siemens 6AV6647-0AF11-3AX0 from the SIMATIC HMI KTP1000 Basic Color PN series.
It offers both touch and key operation with a clear 10.4-inch TFT screen.
This panel combines easy usability, bright display, and reliable PROFINET connectivity for modern automation systems.

Main Highlights

• 10.4″ TFT display with 256 colors ensures sharp process visualization.
• Dual operation mode — tactile keys and touch control improve flexibility.
• PROFINET Ethernet interface for fast and secure communication.
• Operates at 24V DC with 15 W typical power consumption.
• Durable front panel with IP65 protection rated for industrial environments.

Technical Specifications

• Brand: Siemens
• Model: 6AV6647-0AF11-3AX0
• Display: 10.4″ TFT, 640×480 pixels, 256 colors
• Brightness MTBF: 50,000 hours at 25°C
• Processor: RISC 32-bit
• Memory: Flash & RAM, 2 MB user data
• Input voltage: 24 V DC (range 19.2–28.8 V)
• Power consumption: approx. 15 W
• Mounting: vertical, landscape orientation
• Protection front/rear: IP65 / IP20
• Temperature: 0–50°C operation, -20–60°C storage
• Weight: 2.65 kg (net), 3.38 kg (gross)
• Approvals: CE, cULus, RCM, KC, GL, ABS, BV, DNV, LRS, NK

Software Compatibility

• Compatible with WinCC Flexible 2008 SP2 Compact
• Works with WinCC Basic V10.5 and STEP 7 Basic V10.5
• Also supports WinCC Comfort, Advanced, and Professional via TIA Portal
• Languages: 5 runtime, 32 project languages
• Protocols: PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, EtherNet/IP, MODBUS TCP/IP

Design & Usability

• 8 function keys and on-screen numeric/alphanumeric keyboard.
• Plastic front housing with durable finish.
• Simple vertical installation with a maximum tilt of 35°.
• No fan cooling required for most environments.
• Buzzer available for sound feedback; no built-in speaker.

Performance & Reliability

• Fast and stable communication through Ethernet interface.
• Suitable for harsh conditions with IP65 front sealing.
• Supports trend and alarm views for real-time monitoring.
• Comes with 12-month warranty against manufacturing defects.
• Tested and certified by major marine authorities for shipboard use.

Dimensions

• Panel front width: 335 mm
• Panel height: 275 mm
• Cutout size: 310 × 248 mm
• Depth: 60 mm

Shipping & Delivery

• Worldwide shipping available via FedEx, UPS, and DHL.
• Each panel packed securely to prevent damage during transit.
• Tracking information provided for all orders.

FAQ

• Q: What software do I use to configure the panel?
  A: You can configure it using WinCC Basic or WinCC Flexible 2008 SP2.
• Q: Can I mount this panel in portrait orientation?
  A: No, only landscape orientation is supported.
• Q: Does the device support Ethernet/IP?
  A: Yes, it supports EtherNet/IP and MODBUS TCP/IP communication.
• Q: What is the rated power supply range?
  A: The rated supply is 24V DC, with a range of 19.2–28.8V.
• Q: Is it suitable for marine environments?
  A: Yes, it carries multiple marine approvals including GL, ABS, and DNV.
