Product details

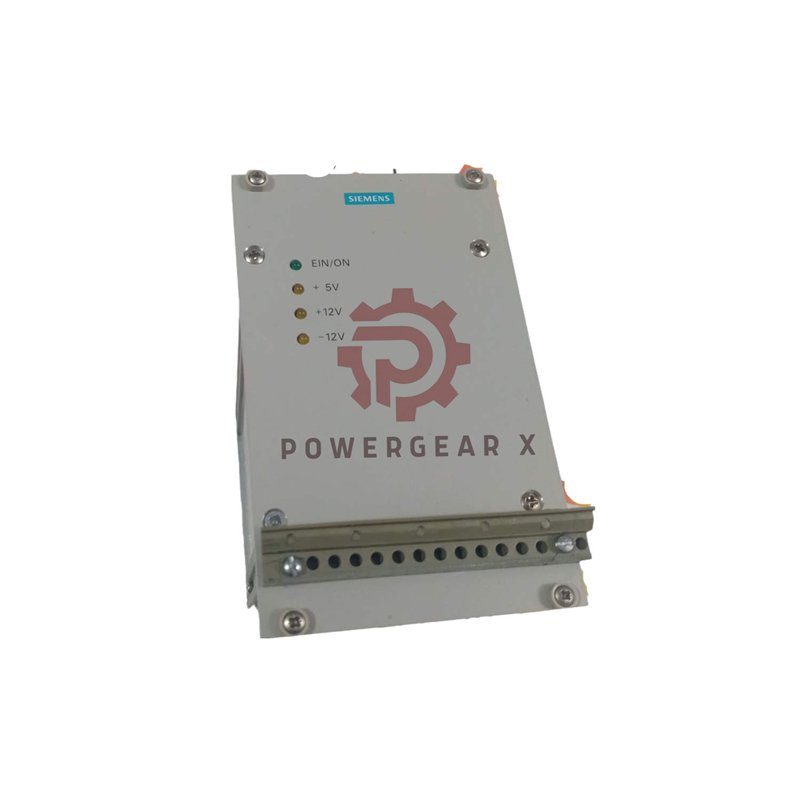

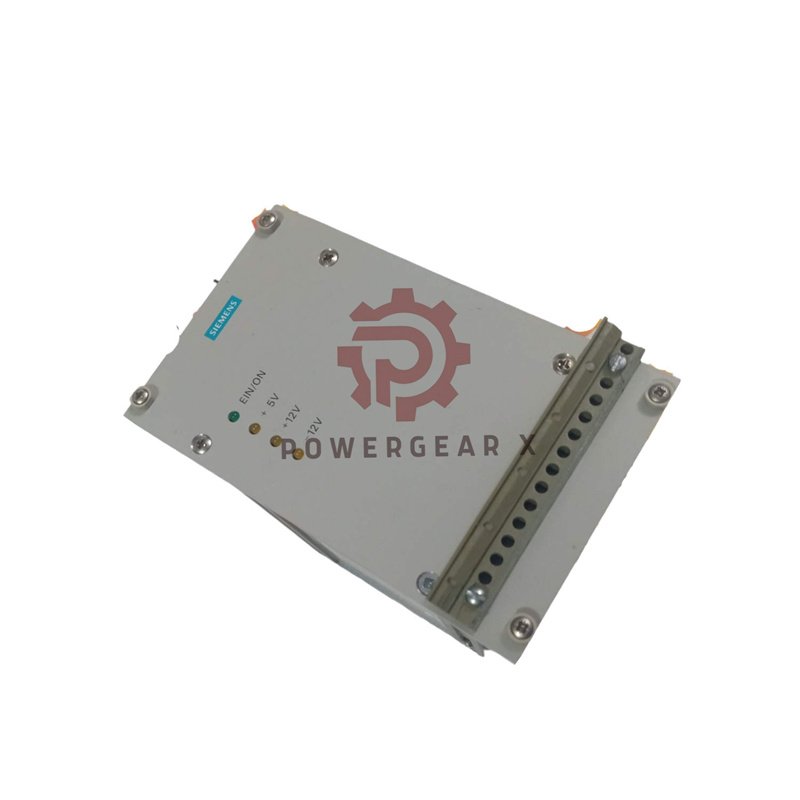

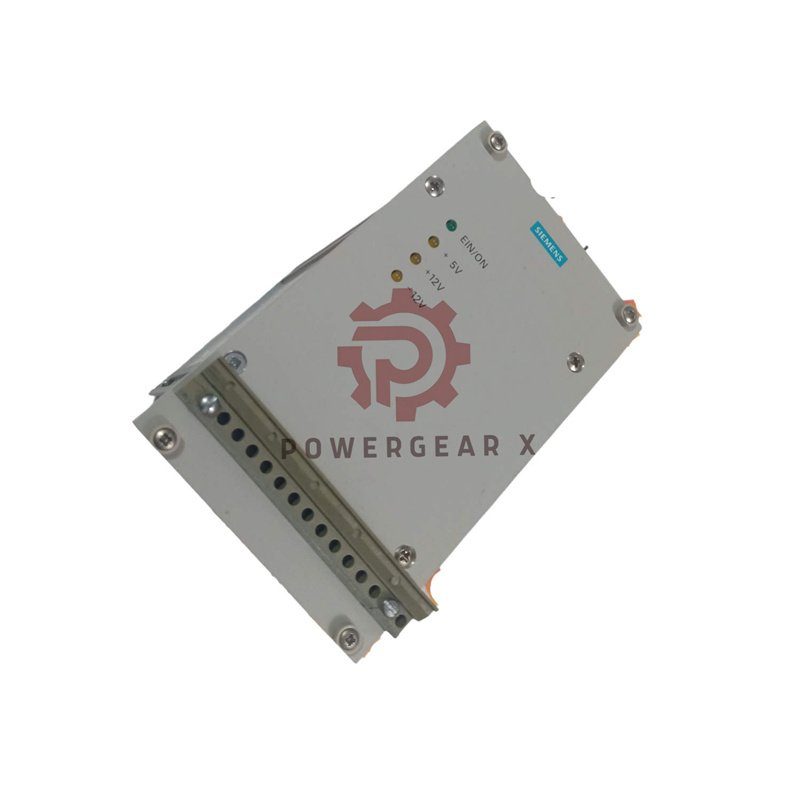

Siemens SICOMP Power Supply Module
- Part Number: 6AR1306-0HC00-0AA0
- This is a multi-output power supply module from Siemens.
- It provides three different DC voltages for electronic systems.
- Accepts both 120V AC and 230V AC input for global use.
- Designed for reliable power delivery in industrial environments.
- Compact and fanless design for quiet and maintenance-free operation.
Key Features & Benefits
- Triple Output: Provides +5.1V, +12V, and -12V DC from a single unit.
- Global Input Voltage: Works with both 120V and 230V AC mains power.
- High Power Capacity: Rated at 3 kW (4 HP) for demanding applications.
- Passive Cooling: No fan means no moving parts, reducing failure points and noise.
- Robust Construction: Built to withstand harsh industrial temperature and humidity.
- Easy Integration: Designed specifically for Siemens SICOMP system cabinets.
Complete Technical Specifications
- Manufacturer & Model: Siemens 6AR1306-0HC00-0AA0
- Product Type: Multi-Output Power Supply Module
- Input Voltage: 120 V AC / 230 V AC (Auto-ranging or selectable)
- Input Frequency: 50/60 Hz typical
- Output Voltages & Currents:
- Output 1: +5.1 V DC at 12 A (61.2 W)
- Output 2: +12 V DC at 5 A (60 W)
- Output 3: -12 V DC at 0.5 A (6 W)
- Total Continuous Power: 3,000 Watts (3 kW) / 4 Horsepower (HP)
- Peak Power Capability: Typically 110-120% of continuous rating.
- Efficiency: High efficiency design to minimize heat loss.
- Ripple & Noise: Low output noise suitable for sensitive electronics.
- Operating Temperature: -20°C to +60°C (full rated output)
- Storage Temperature: -40°C to +85°C
- Humidity Tolerance: Up to 95% relative humidity, non-condensing
- Cooling Method: Passive (convection) cooling, no fan required
- Protection Features: Overload, overvoltage, and short-circuit protection.
- Status Indication: LED power-on indicator.
- Physical Dimensions: Approx. 100 mm (W) x 80 mm (H) x 20 mm (D)
- Product Weight: Approximately 1.59 kg (3.51 lbs)
- Safety Certifications: CE, UL, CSA
- EMC Compliance: Meets industrial electromagnetic compatibility standards.
Installation & Wiring Guide
- Mount the module securely in a well-ventilated area of your SICOMP cabinet.
- Ensure the AC input power is disconnected before starting.
- Connect the AC line and neutral wires to the input terminals.
- Connect the ground wire for safety.
- Route the DC output cables to their respective loads, observing correct polarity.
- Secure all connections with appropriate torque.
System Compatibility
- Designed for integration with Siemens SICOMP industrial computer systems.
- Provides the necessary voltages for system logic boards, drives, and interface cards.
- Check your SICOMP system documentation for specific power requirements.
Certifications & Safety
- CE Marked: Complies with European health, safety, and environmental standards.
- UL Listed & CSA Certified: Approved for use in North America.
- RoHS Compliant: Manufactured with restrictions on hazardous substances.
- Designed for Safety: Incorporates isolation and protection circuits.
What’s Included
- 1 x Siemens Power Supply Module 6AR1306-0HC00-0AA0.
- Module is supplied with necessary mounting hardware.
- Product may be shipped in protective packaging.
Warranty & Shipping Information
- This product is covered by a 12-month warranty for defects in materials and workmanship.
- Fast global shipping is available via FedEx, UPS, and DHL express services.
- You will receive a tracking number as soon as your order is dispatched.
