Product details
Compact 11mm Sensor for Space-Constrained Machinery

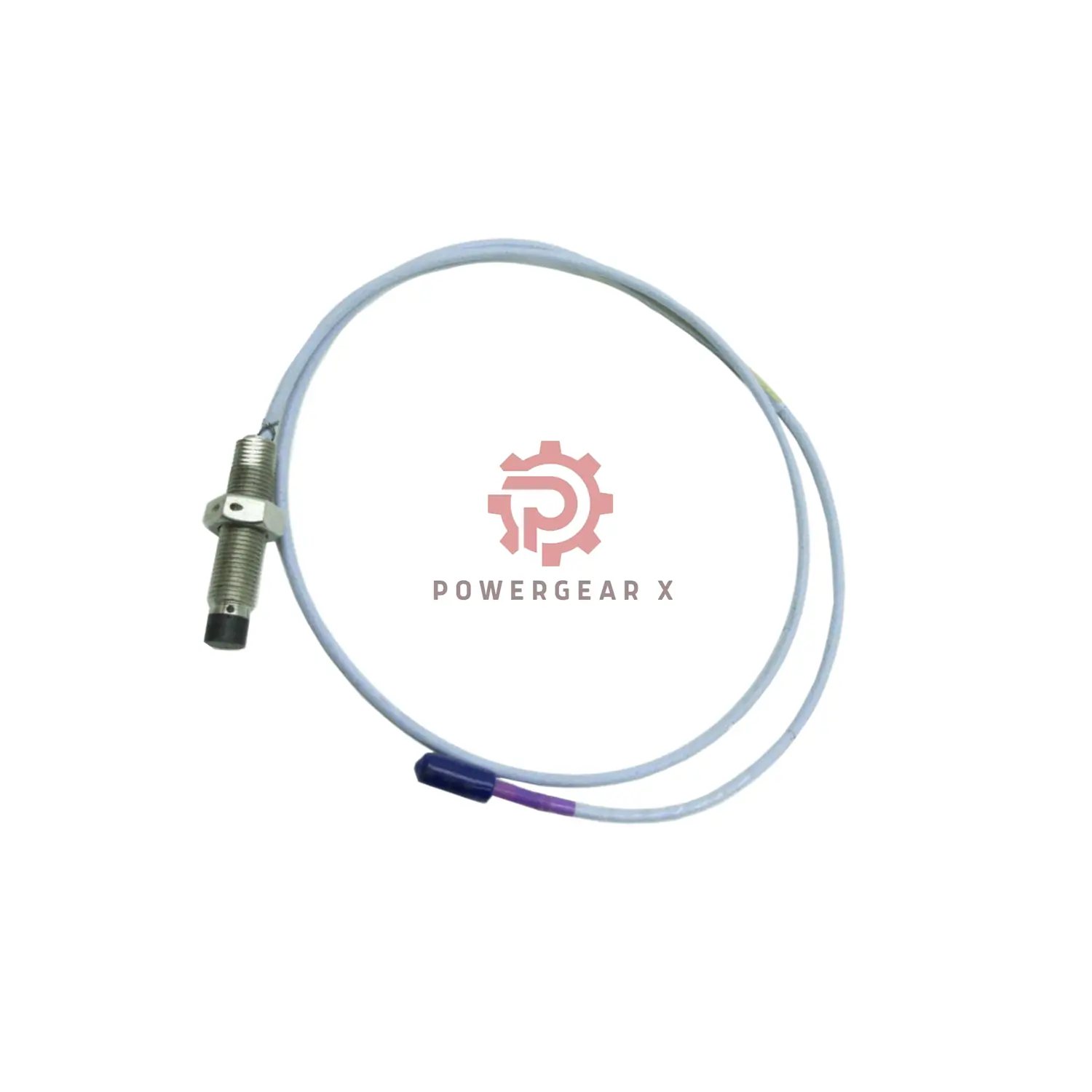

Introducing the Bently Nevada 330703-000-040-10-01-05. This premium probe from the 3300 XL series offers large 11mm tip performance in a short 40mm package. Its M14x1.5 thread provides a secure mount in tight spaces. This model carries multiple international safety approvals. It comes with a 1.0-meter cable and connector protector. You receive a brand new, fully warranted sensor ready for critical monitoring.
Product Specifications in Detail
- Full Model Number: 330703-000-040-10-01-05
- Brand & Family: Bently Nevada 3300 XL Probes
- Sensing Tip: Large 11 mm diameter for stable signal output.
- Physical Size: Ultra-compact 40.0 mm overall case length.
- Mounting Specs: M14 x 1.5 thread. Max thread engagement is 21 mm.
- Wiring: Includes 1.0 meter (3.3 ft) of high-quality triaxial cable.
- Electrical Checkpoint: Standard resistance is 5.9 Ohms ± 0.5 Ohms.
- Noise Rejection: Exceptionally low sensitivity to 60 Hz magnetic interference.
- Torque Rating: Can be tightened to a robust 21.1 N•m (187 in-lb).
- Temperature Limits: Functions from -52°C to +177°C.
- Certifications: Equipped with multiple agency approvals (option -05).
Quick Start Installation Tips
- This short 40mm case is ideal for shallow mounting holes.
- Ensure the M14x1.5 mounting hole depth is sufficient for full thread engagement.
- Tighten firmly to the recommended 21.1 N•m torque for a vibration-proof seal.
- Use the attached connector protector during handling to prevent damage.
- Install promptly after removing from packaging if ambient temperature is very low.
Why Select This Specific Probe?
- Space-Saving Design: The short 40mm body solves clearance issues on compact machinery.
- Approved for Safety: Multiple global approvals simplify use in regulated facilities.
- Industrial Durability: High torque rating and stainless steel construction ensure long life.
- Enhanced Signal Integrity: Triaxial cable provides superior shielding in electrically noisy environments.
- Complete Package: A ready-to-install kit with protector and full warranty support.
Common Technical Questions
Where is a 40mm case length typically required?
Use it in gearboxes, small turbines, or motors where internal space between the casing and the shaft is very limited. It prevents interference with other components.
What is the benefit of the triaxial cable on this model?
It has an extra layer of shielding. This provides excellent protection against electrical noise from variable frequency drives (VFDs) and large motors.
Can I use this probe for both vibration and position (Keyphasor) measurement?
Yes. The 330703 is a standard proximity probe suitable for both vibration and once-per-revolution timing (Keyphasor) signals when paired with the appropriate monitor.
How do the multiple approvals (-05) benefit my procurement process?
It means the probe is pre-certified for various international standards. This reduces the time and cost needed for site-specific certification reviews.
What is your process for order fulfillment and delivery?
Contact us for stock and pricing. We confirm your order quickly. We ship using reliable carriers like FedEx, UPS, or DHL. Your probe includes a 12-month warranty and full documentation.
Complete Offering & Support
- Product: One Bently Nevada 330703-000-040-10-01-05 probe.
- Quality Guarantee: 100% original, unused, in factory packaging.
- Warranty Period: Protected by a 12-month manufacturer’s warranty.
- Logistics: Fast, tracked shipping to your location worldwide.
Ready to order or need a competitive quote? Our sales team is here to help.
