Yaskawa Sigma II Servo Motor: High Precision & Power

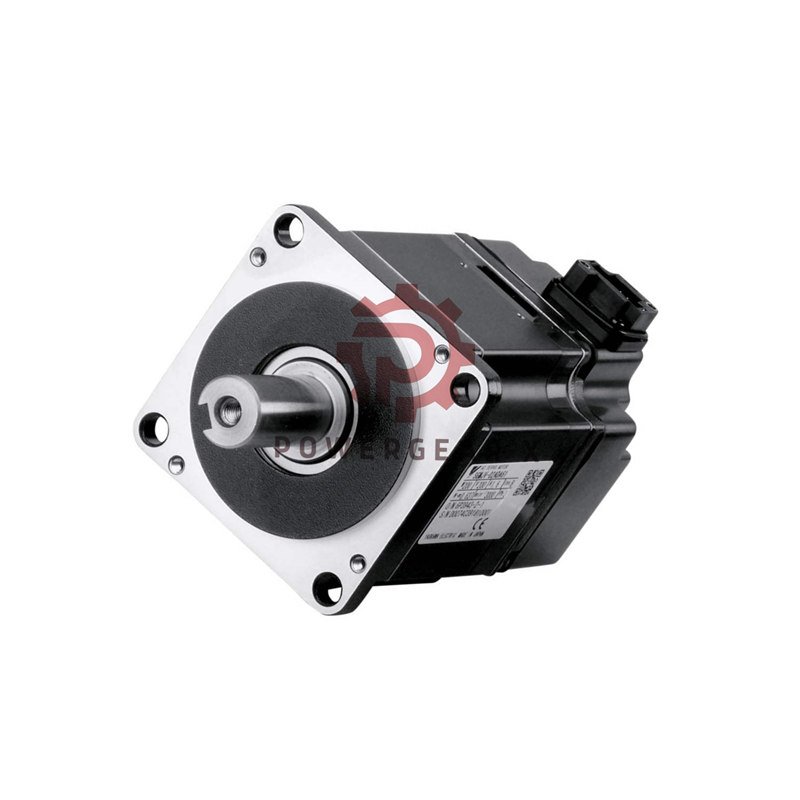

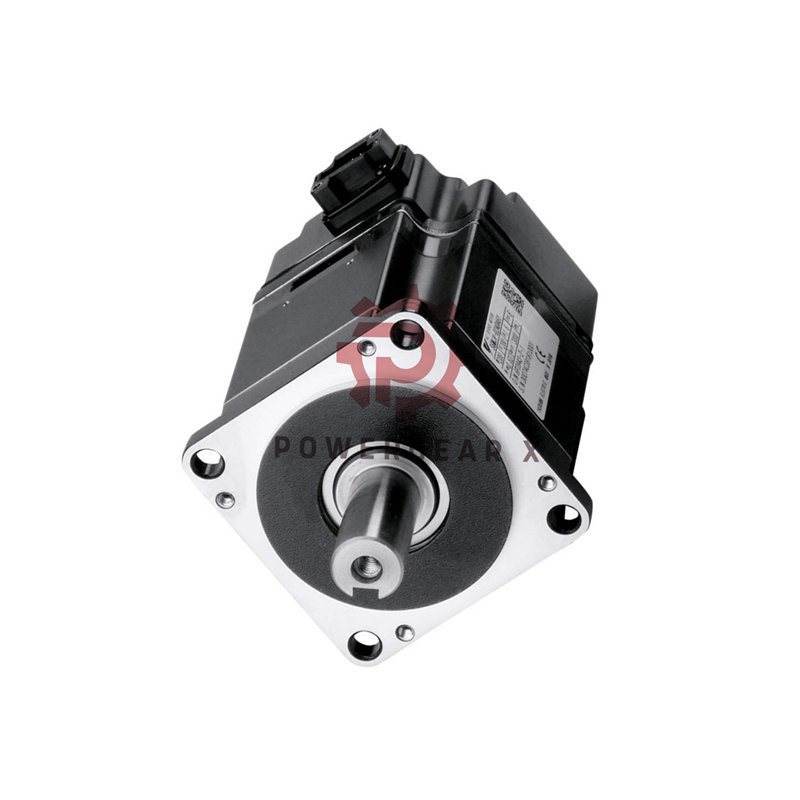

This is the Yaskawa SGMAV-04ADA61 servo motor. It offers precise motion control for machines. Perfect for automation, robotics, and CNC applications. Delivers reliable performance in tough conditions.
Author: Powergear X Automation
Quick Specifications: SGMAV-04ADA61
- Brand & Series: Yaskawa Sigma II
- Key Model: SGMAV-04ADA61
- Rated Power: 400 Watts
- Rated Torque: 1.27 Nm
- Max Torque: 3.82 Nm
- Rated Speed: 3000 RPM
- Max Speed: 6000 RPM
- Protection Rating: IP65 (Dust & Water Jet Resistant)
- Condition: New & Original
- Warranty: 12 Months
- Shipping: Global via FedEx, UPS, DHL
Detailed Technical Data
- Electrical: 200V AC Supply. 2.6A Rated Current. 8.5A Max Current.
- Mechanical: Straight shaft with key and tap for secure connection.
- Feedback: High-resolution 20-bit incremental encoder.
- Drive Method: Direct drive for efficient power transfer.
- Environment: Operates from 0°C to 40°C. Stores from -20°C to 85°C. Non-condensing.
- Physical: Weight is 5.0 lbs (2.27 kg).
Why Choose This Motor?
- Superior Precision: 20-bit encoder gives excellent positioning accuracy.
- Built to Last: IP65 rating protects against dust and water sprays.
- High Performance: Delivers strong torque (3.82 Nm max) for demanding moves.
- Easy Integration: Standard shaft design fits common couplings and components.
- Trusted Quality: Genuine Yaskawa part ensures reliability and long life.
Common Questions
- What does the IP65 rating mean for my application?
- It means the motor can handle dust and water jets. It is good for most factory areas, but not for underwater use.
- Can I run the SGMAV-04ADA61 at its maximum speed continuously?
- No. Run it at the rated speed (3000 RPM) for normal use. Use the max speed (6000 RPM) only for short periods.
- Is a special drive required for this motor?
- Yes. You need a compatible Yaskawa Sigma II servo drive. Using the wrong drive can damage the motor.
- How do I maintain this servo motor?
- Keep it clean and check connections. The motor is sealed (IP65), so do not open it. Monitor operating temperature.
- The shaft has both a key and a tap. Which should I use?
- Use the keyway for a positive lock against rotation under high torque. The tapped hole is for an auxiliary safety screw.
