Product details

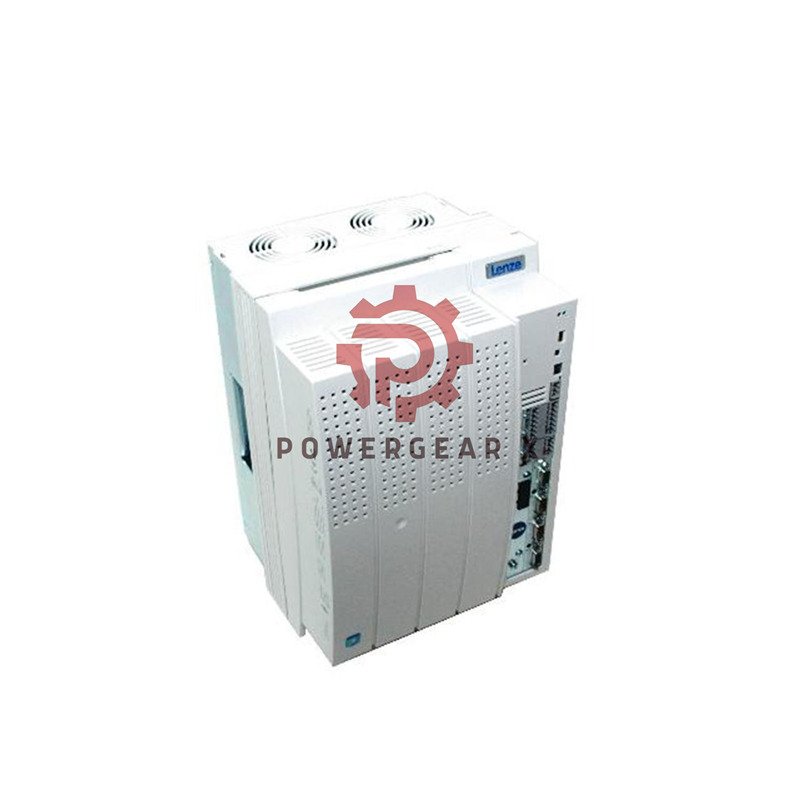

Lenze EVS9328-EPV004 Servo Position Controller
The EVS9328-EPV004 delivers precise motion control for industrial applications. This high-performance servo controller includes safe standstill functionality for enhanced safety.
Key Features
- Safe standstill capability for operator protection
- High power output up to 30 kW motor rating
- Dual voltage support for global applications
- Efficient operation with 640W power loss
- Robust construction weighing 12.5 kg
- Advanced thermal management system
Technical Specifications
- Brand: Lenze
- Model: EVS9328-EPV004
- Product Type: Servo Position Controller
- Series: 9300 High Performance
- AC Input Voltage: 3AC 320-528V
- DC Input Voltage: DC 460-740V
- Motor Power (400V): 22.0 kW
- Motor Power (480V): 30.0 kW
- Output Current (8kHz): 47.0A @400V
- Output Current (16kHz): 30.6A @400V
- Apparent Power: 32.6 kVA @400V
- Max Current (8kHz): 70.5A Peak
- Input Current: 44.0A @400V
- Power Loss: 640W Operating
- Weight: 12.5 kg
- Temperature Derating: 2%/K above 40°C
Performance Advantages
- High torque output for demanding applications
- Wide voltage range for flexible installation
- Advanced safety features protect personnel
- Efficient cooling maintains optimal performance
- Precise positioning for accuracy-critical tasks
- Reliable operation in industrial environments
Power & Current Ratings
- Motor voltage: 0-3 x mains voltage
- Output current: 47.0A @400V/8kHz
- Maximum current: 70.5A peak capability
- Apparent power: 37.0 kVA @480V
- Input current: 44.0A at 400V AC
- Power dissipation: 640W during operation
Shipping & Warranty
- 12-month comprehensive warranty
- Genuine Lenze product with certification
- Secure packaging for international shipping
- Express delivery via FedEx, UPS, DHL
- Technical documentation included
Technical Questions
- What does safe standstill functionality provide?
This safety feature prevents unexpected motor movement during maintenance periods.
- Can this controller operate on both AC and DC power?
Yes, it supports 320-528V AC and 460-740V DC input for flexibility.
- What motors are compatible with this unit?
It works with 4-pole ASM motors up to 30kW at 480V applications.
- How does temperature affect performance?
Above 40°C, output reduces by 2% per degree to protect components.
- What’s the advantage of different switching frequencies?
Higher frequencies reduce motor noise while lower frequencies increase output current.
