Series 9300 EVS9324-EP Servo Inverter | Lenze 3 kW Axis Control

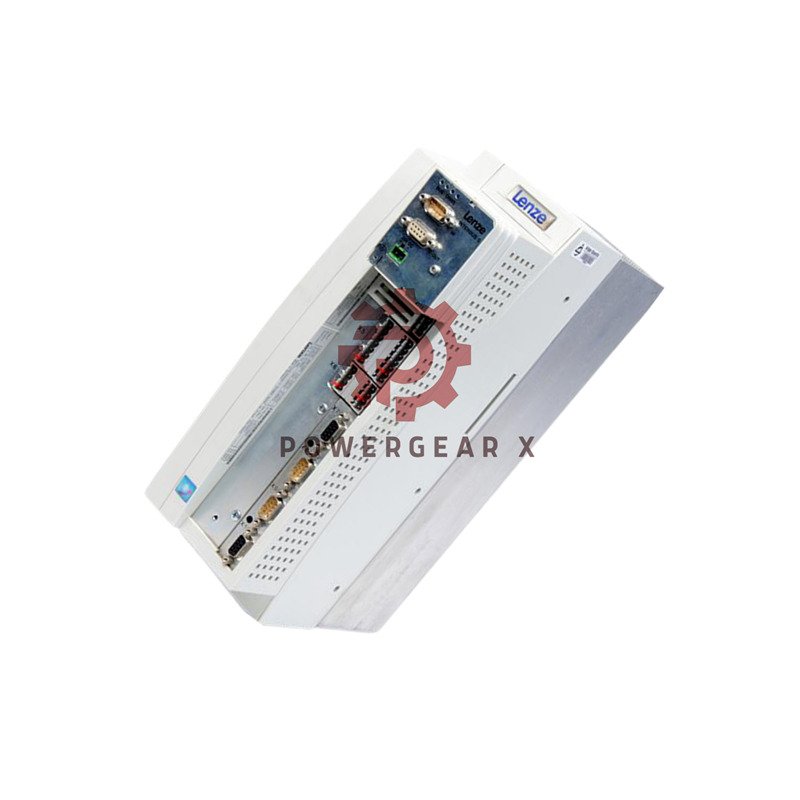

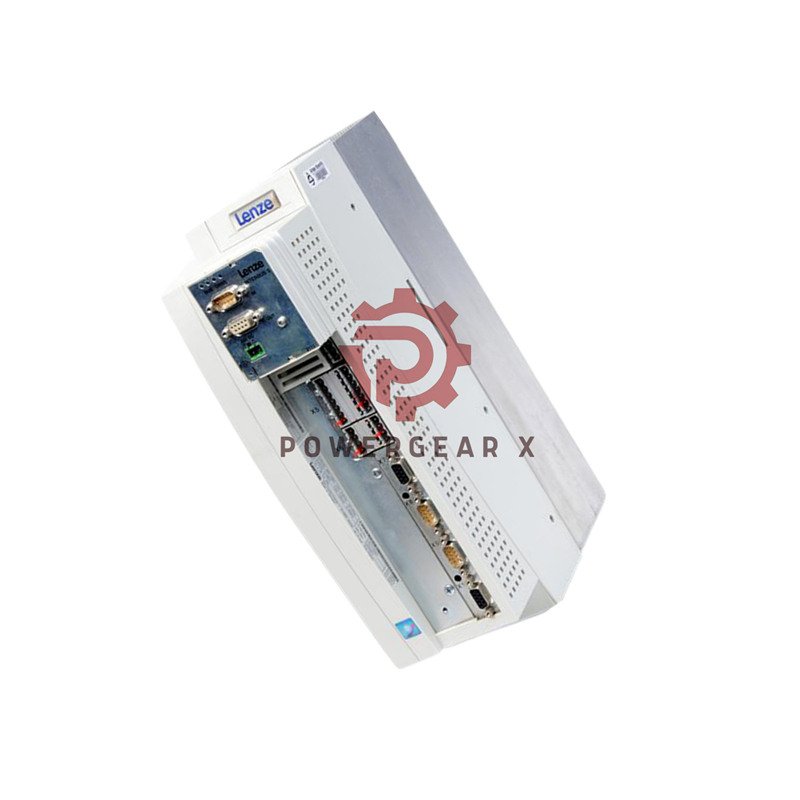

Introducing the Lenze EVS9324-EP Servo Inverter

The Lenze EVS9324-EP delivers robust motion control for industrial automation. This advanced servo inverter axis module from the Series 9300 provides exceptional performance and reliability. It expertly drives a 3 kW, 4-pole asynchronous motor with high efficiency.

Core Technical Specifications

• Brand: Lenze
• Model: EVS9324-EP
• Product Line: Series 9300
• Motor Power: 3 kW for a 4-pole asynchronous motor
• Mains Voltage: 3/PE AC 320–528 V; 45–65 Hz
• DC Supply: 460–740 V DC
• Rated Output Current: 7.0 A at 8 kHz
• Max. Output Current: 10.5 A at 8 kHz

High-Performance Braking System

• This unit features a powerful integrated brake chopper.
• It handles a continuous braking power of 11 kW.
• The system achieves a peak braking power of 25 kW.
• You need a minimum brake resistance of 27 Ω ±10%.

Physical Dimensions and Installation

• The compact dimensions are 350 mm (H) x 97 mm (W) x 250 mm (D).
• Its total weight is approximately 5 kg for easy handling.
• You can use a shielded motor cable up to 50 meters long.
• The default switching frequency is 8 kHz for optimal performance.

Frequently Asked Questions

• What motor type works with the EVS9324-EP?
  This servo inverter drives a standard 3 kW, 4-pole asynchronous motor.
• Can I use a DC power supply?
  Yes, the unit accepts an alternative DC supply from 460 to 740 V DC.
• What is the maximum output current?
  The drive delivers a maximum of 10.5 A at its default 8 kHz setting.
• How do I select a brake resistor?
  Ensure the resistor value is at least 27 ohms with a 10% tolerance.
• What is the typical power loss?
  The device has a typical power loss of 200 watts during operation.

Packaging and Shipping

• Our packaging includes the EVS9324-EP unit and its user manual.
• We ship all orders via reliable carriers like FedEx, UPS, and DHL.
• You will receive your tracking information immediately after dispatch.
