Product Description

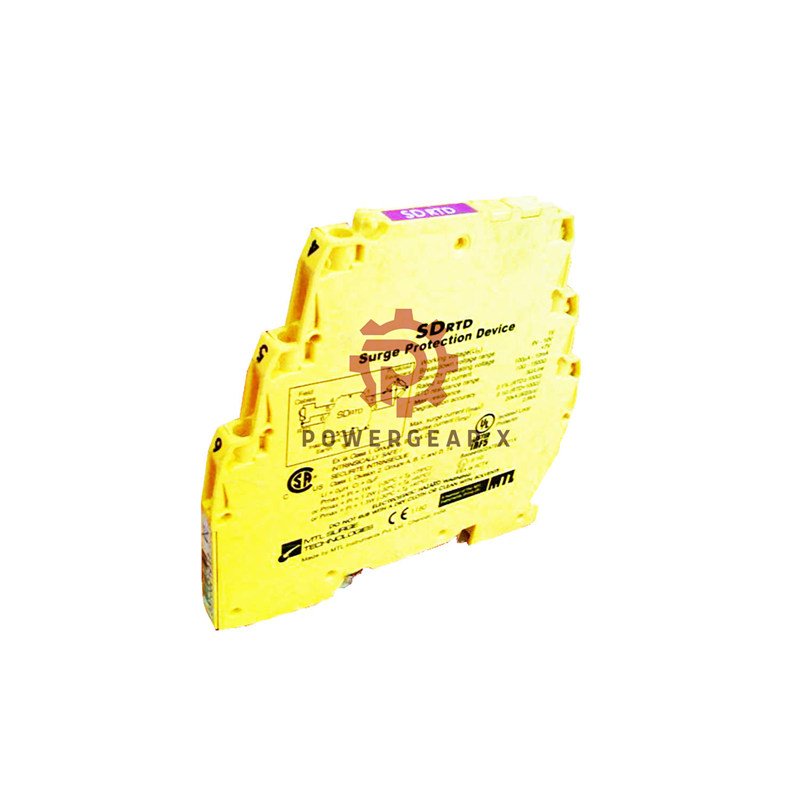

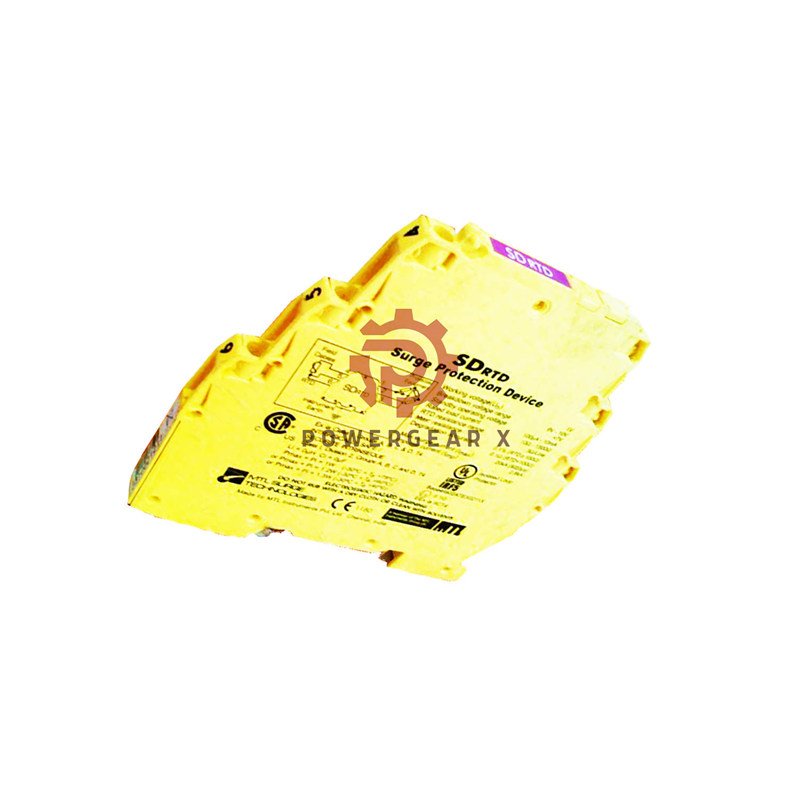

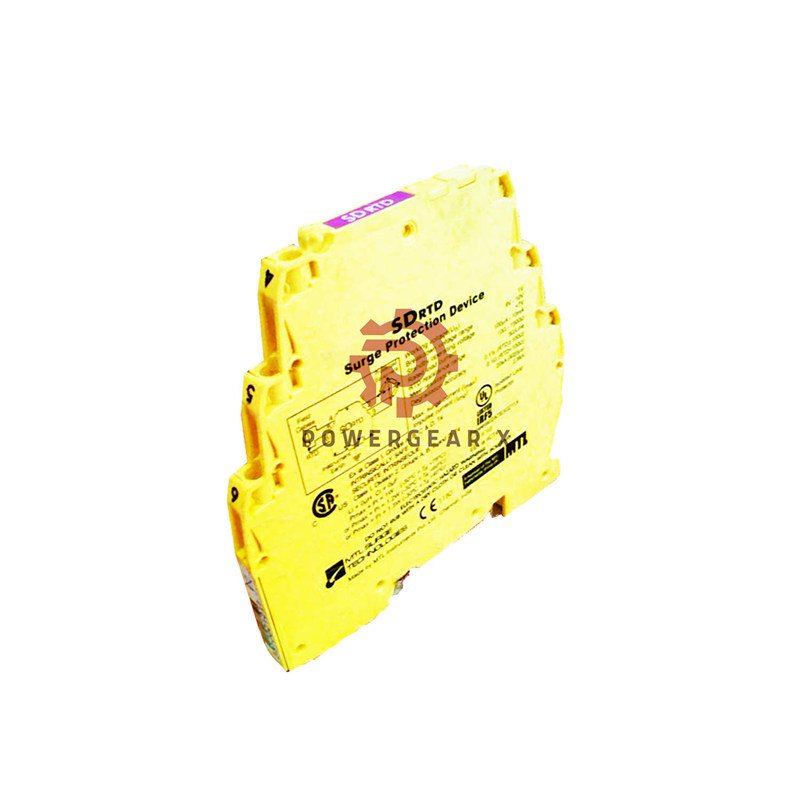

MTL Instruments presents the SDRTD Resistance Temperature Detector surge protector. This device offers robust intrinsic safety and surge protection. Its ultra-slim design saves crucial panel space. The multistage hybrid circuit handles high surge currents. It is ideal for process input and output applications. This model also supports 3-wire RTD configurations.
Technical Data
- Brand: MTL Instruments
- Model: SDRTD
- Product Type: Resistance Temperature Detector Surge Protector
- Nominal Voltage (Un): 1 Vdc / 0.75 Vac
- Nominal Current (In): < 10 mA
- Series Resistance: 2.7 Ω/line
- Max. Leakage Current: 0.3 µA
- Rated Voltage (MCOV) (U): 5 V
- Voltage Protection Level (Up): < 12 V
- Residual Voltage: 38 V
- Bandwidth (Frequency): 50 MHz
- Special Feature: 3-wire RTD support
- Measurement Range: Consult manual for full details
- Frequency Response: Up to 50 MHz
- Linearity: High level of signal integrity
- Temperature Range: Standard industrial ratings
- Environmental Durability: Designed for harsh conditions
- Interference Immunity: Excellent noise rejection
FAQ
- What is the nominal voltage? 1 Vdc / 0.75 Vac.
- Is this a 3-wire device? Yes, it supports 3-wire RTD.
- What is the warranty period? 12 months.
