Compact Communication Bridge for Quantum Systems

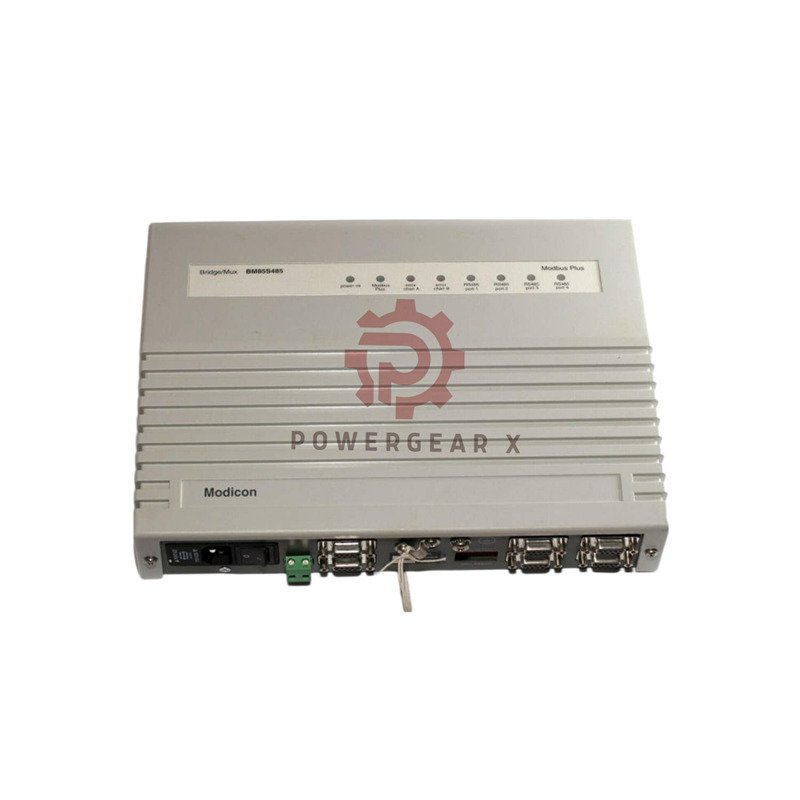

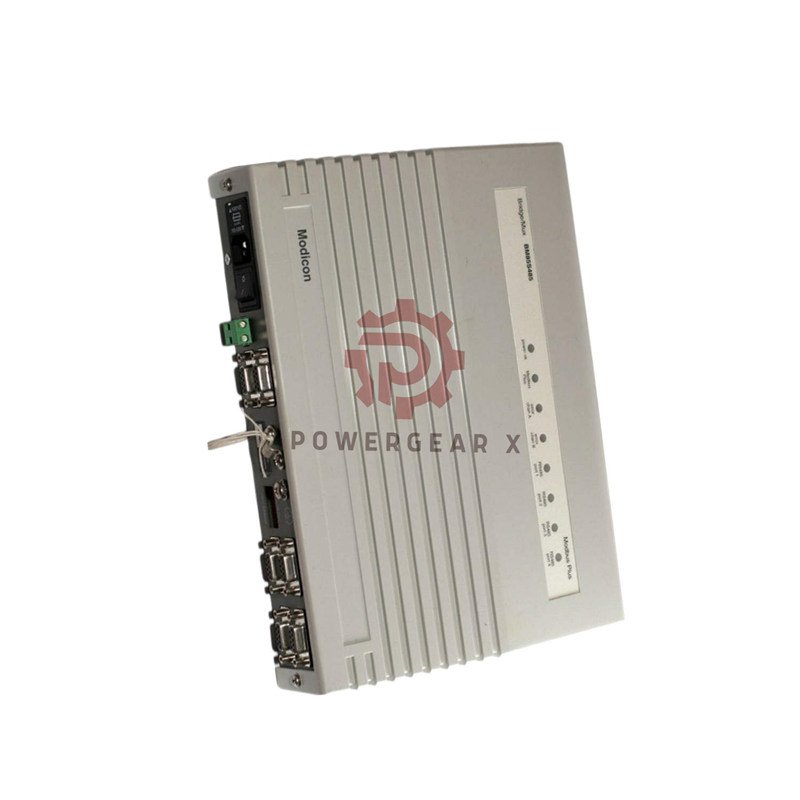

Meet the Schneider Electric NW-BM85S485 multiplexer bridge. This module works in Modicon Quantum series. It connects systems using Modbus RTU protocol. RS-485 communication ensures reliable data exchange. Perfect for industrial automation networks.
Core Advantages
- Fast Data Transfer: Supports speeds up to 115.2 kbps for quick communication.
- Strong Protection: Galvanic isolation protects signals from electrical noise.
- Easy Connection: RJ45 ports allow simple cable installation.
- Wide Compatibility: Works with Modicon Quantum and Premium platforms.
- Energy Efficient: Uses less than 1 watt of power during operation.
Detailed Technical Information
- Brand: Schneider Electric
- Model: NW-BM85S485 Multiplexer Bridge
- Product Series: Modicon Quantum
- Communication Protocol: Modbus RTU over RS-485
- Maximum Data Rate: 115.2 kilobits per second
- Isolation Protection: 1500V RMS galvanic isolation
- Connection Ports: 4 RJ45 connectors
- Supported Voltage: 12-24V DC (10-30V DC range)
- Power Use: 0.8 watts typical
- Operating Temperature: -20°C to +70°C (-4°F to 158°F)
- Storage Temperature: -40°C to +85°C (-40°F to 185°F)
- Humidity Range: 5% to 95% non-condensing
- Protection Rating: IP20 enclosure
- Cable Type: Shielded twisted pair recommended
- Maximum Cable Length: 1200 meters at lower speeds
- Module Dimensions: 100mm × 50mm × 25mm
- Product Weight: 2.07 kilograms
- Mounting Style: Standard DIN rail or panel mount
Package Contents & Shipping
- Single unit package contains one NW-BM85S485 module
- Package size: 33.5cm × 28.5cm × 16.3cm
- Shipping weight: 2.836 kilograms per unit
- Bulk package available for 10 units
- Global shipping via FedEx, UPS, and DHL
- Order processing within 24 business hours
Installation & Setup Guide
Mount the module on a DIN rail. Connect power between 12-24V DC. Use shielded cables for communication. Link devices to the RJ45 ports. Set proper termination resistors. Configure Modbus addresses correctly. Always follow local electrical codes.
Performance Features
- Handles up to 247 Modbus devices on one network
- Automatic baud rate detection capability
- LED indicators show port activity and power
- Built-in surge protection for communication lines
- Supports both 2-wire and 4-wire RS-485 connections
Quality Assurance
This product meets international standards. We provide a 12-month warranty from purchase date. Warranty covers manufacturing defects. Fast replacement for faulty units. Professional technical support available.
Frequently Asked Questions
What is the maximum network distance for this module?
You can reach 1200 meters with proper cable. Use quality shielded twisted pair. Lower speeds allow longer distances.
Can this module connect to Modbus TCP networks?
No. The NW-BM85S485 only supports Modbus RTU. You need a separate gateway for TCP conversion.
How many devices can I connect to one module?
The module itself does not limit device count. The Modbus protocol supports up to 247 addresses per network segment.
What happens if I exceed the voltage range?
The module has overvoltage protection. However, consistent high voltage may damage internal components. Always stay within 10-30V DC.
From field experience, what improves communication stability?
Always use termination resistors at network ends. Proper grounding reduces noise issues. Keep communication cables away from power lines.
