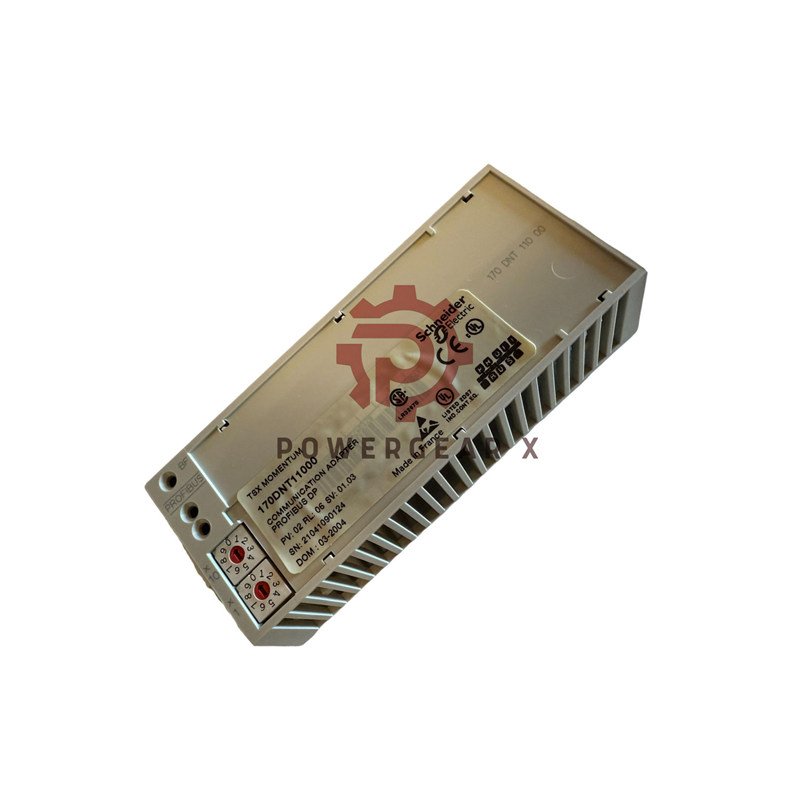

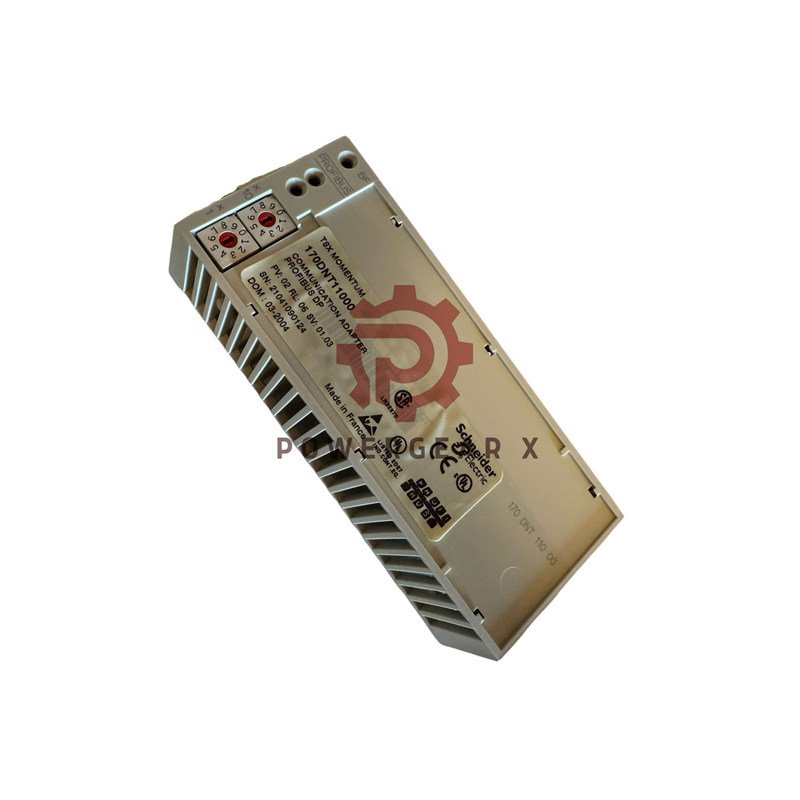

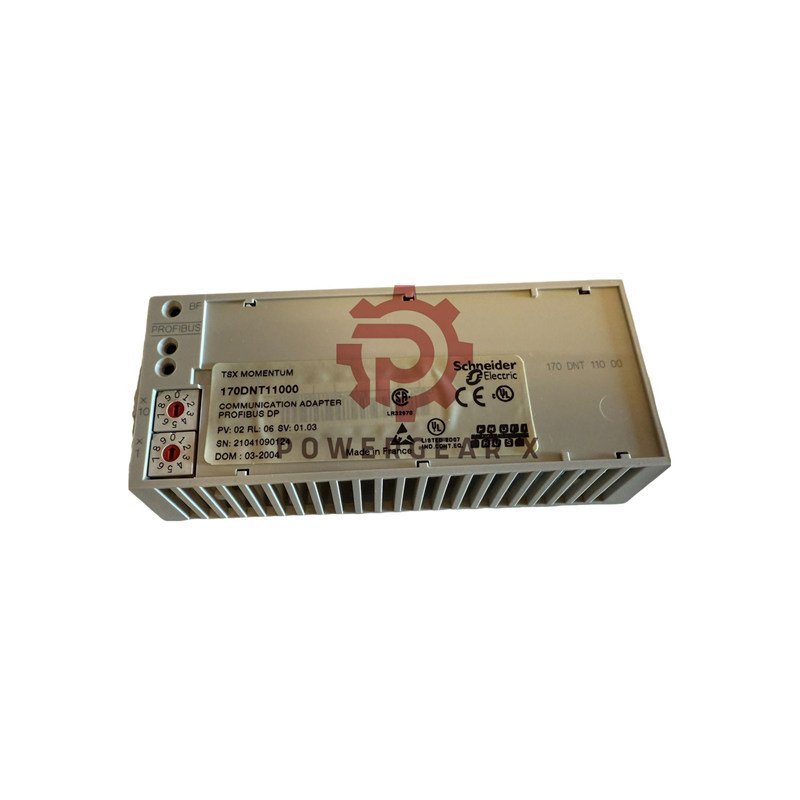

Schneider Electric Modicon Momentum 170DNT11000 Profibus DP Network Adaptor

Overview

The Schneider Electric 170DNT11000 adaptor offers fast and stable Profibus DP communication for Modicon Momentum systems.

Product Overview

• The 170DNT11000 links controllers and devices on Profibus DP networks.
• It runs at 9.6–12 Mbit/s for fast data exchange.
• It supports up to 126 devices on one segment.
• It fits multidrop and ring layouts for flexible setups.
• Content by Powergear X Automation.

Technical Specifications

• Brand: Schneider Electric; Model: 170DNT11000; Series: Modicon Momentum.
• Protocol: Profibus DP communication adaptor.
• Speed: 9.6–12 Mbit/s over twisted-pair cable.
• Topology: Multidrop and ring.
• Capacity: 126 devices.
• Cable Length: 1200 m max.
• Addressing: Switch selection.
• Check Method: CRC-16 for stable data.
• Connector: 9-pin SUB-D.
• Rating: IP20.
• Temp Range: 0–60°C operating; –40–85°C storage.
• Humidity: Up to 95% non-condensing.
• Weight: 0.19 lbs (0.09 kg).
• Certifications: UL, CSA.

Performance & Reliability

• CRC-16 ensures clean data on long lines.
• Stable communication across long cable runs.
• IP20 design fits indoor cabinets.
• Handles normal factory humidity and heat.

Installation Guide

• Mount inside a clean control cabinet.
• Connect the Profibus cable to the SUB-D port.
• Set the device address with the switch block.
• Apply proper termination at cable ends.
• Check baud rate and signal quality with a tester.

Packing List

• One 170DNT11000 adaptor.
• Quick-start leaflet.
• Product label and ID card.
• Ships via FedEx, UPS, or DHL.

Shipping & Handling

• Global delivery through FedEx, UPS, or DHL.
• Anti-static and shock-proof packaging.
• Transport within safe temperature limits.

FAQ

• Q: How do I reduce communication noise?
• A: Use quality cable, correct grounding, and proper termination.
• Q: Can I use devices from other brands?
• A: Yes. Match the baud rate and device profile.
• Q: What if two devices share the same address?
• A: Change one address to clear the conflict.
• Q: How do I confirm speed settings?
• A: Check with a Profibus analyzer.
