Product details
Overview

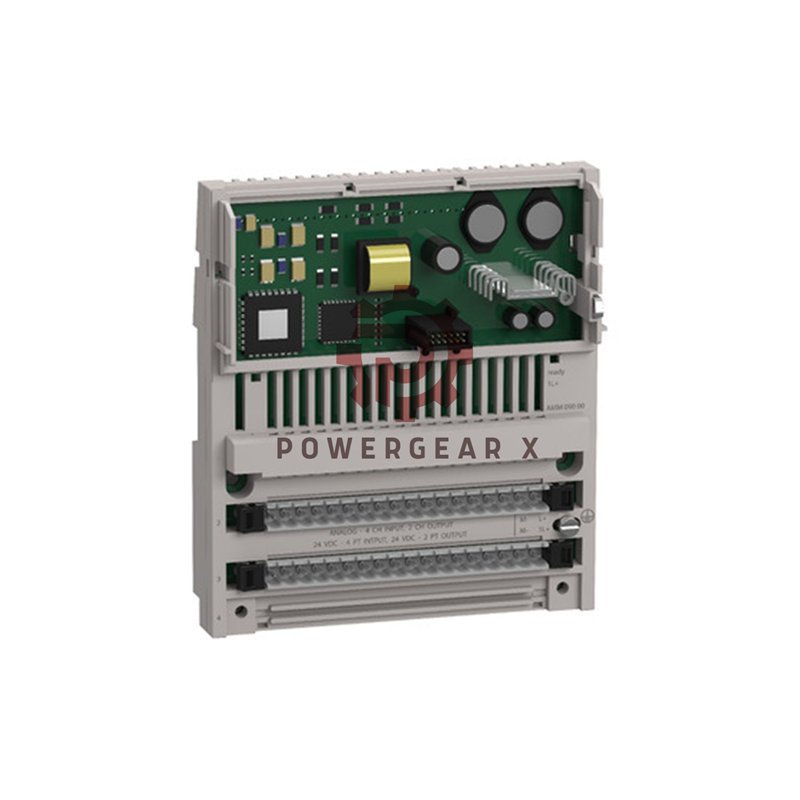

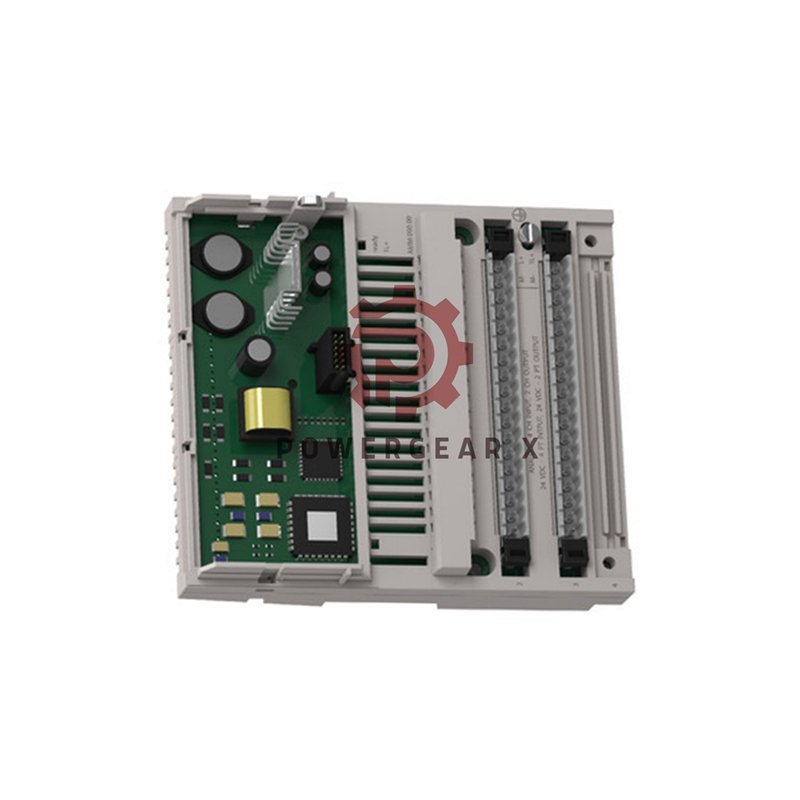

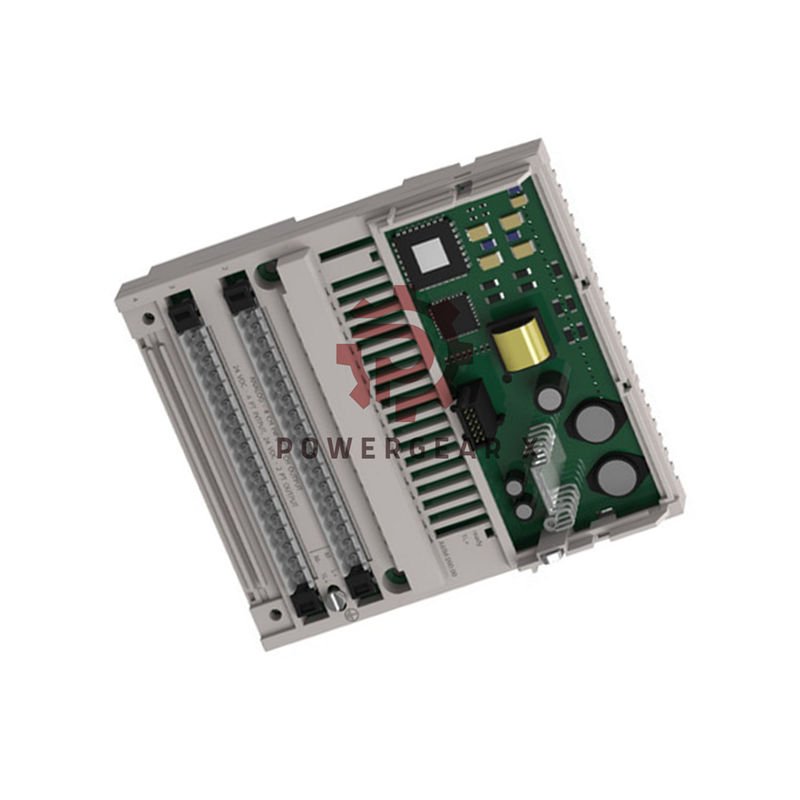

The 170ANR12091 delivers eight digital inputs and eight digital outputs for compact control.
Schneider Electric builds the Modicon Momentum series to support stable industrial automation with small footprint.
Key Technical Specifications
- Brand: Schneider Electric; Model: 170ANR12091; Series: Modicon Momentum.
- The unit offers 8 discrete inputs and 8 discrete outputs for rapid machine control tasks.
- It includes 6 analog inputs and 4 analog outputs for accurate process regulation.
- Operating range stays between 0–60 °C, and storage range stays between -40–85 °C.
- Humidity tolerance reaches 95% RH non-condensing at altitudes up to 5000 m.
- Unit weight equals 0.45 kg; EAN code equals 3595862053402.
- Install the module in clean indoor locations without corrosive chemicals.
Performance and Signal Details
- The analog channels maintain strong linearity under stable field conditions.
- Both input types deliver steady frequency response for common automation devices.
- The module reduces electrical noise through careful circuit design.
- Sensitivity remains stable across supported industrial signal ranges.
Installation Guide
- Mount the 170ANR12091 on a grounded DIN rail before wiring any device.
- Check wiring polarity and power ratings before activating the system.
- Keep analog wiring away from power cables to improve signal integrity.
- Run a channel test after installation to confirm complete I/O mapping.
Packaging Contents
- Package includes one Modicon Momentum I/O module, connectors, and simple mounting instructions.
- No warranty or certificate details appear in this section by request.
- Shipping uses FedEx, UPS, or DHL with export tracking.
- Powergear X Automation prepares documentation for smooth customs handling.
Practical FAQ
- How can I improve analog accuracy?
Use shielded twisted pairs and route them away from high-current lines. - Should I replace the unit while the system runs?
Stop the controller and power down to prevent data issues. - What routine work reduces downtime?
Tighten terminals and inspect cabinet airflow every quarter. - How do I map channels quickly?
Label each wire and match channel names in the PLC project.
Ordering and Contact
- For purchase details email sales@powergearx.com or call +86 18030005825.
- Powergear X Automation provides related Modicon Momentum parts on request.
