Product details

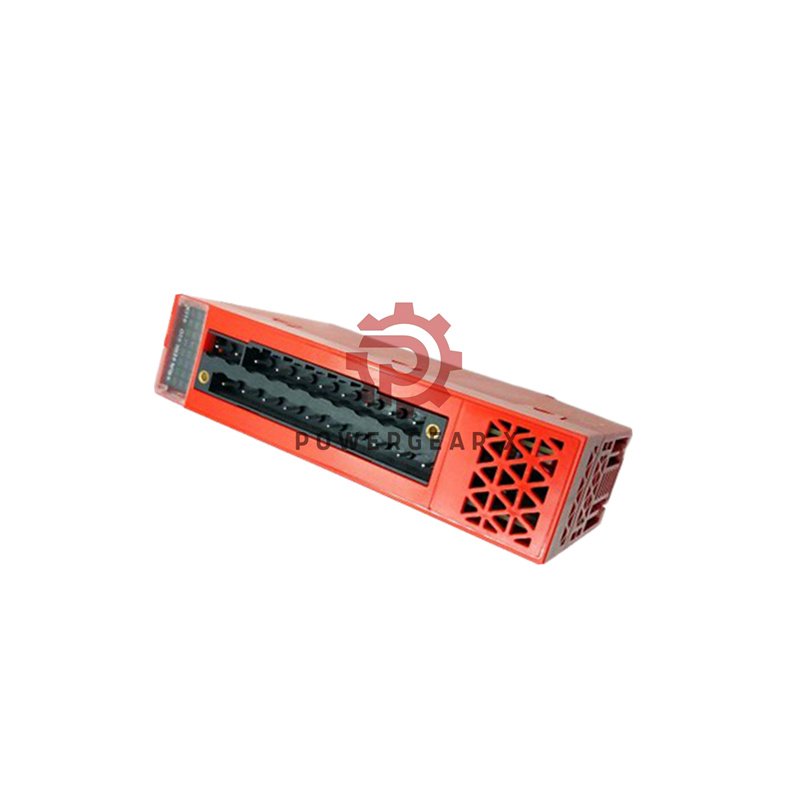

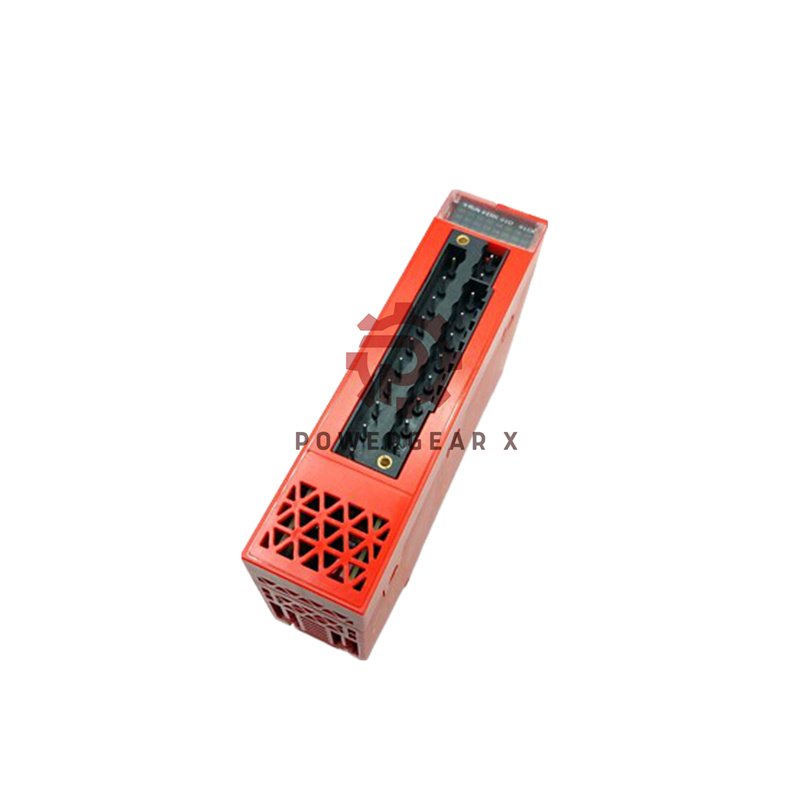

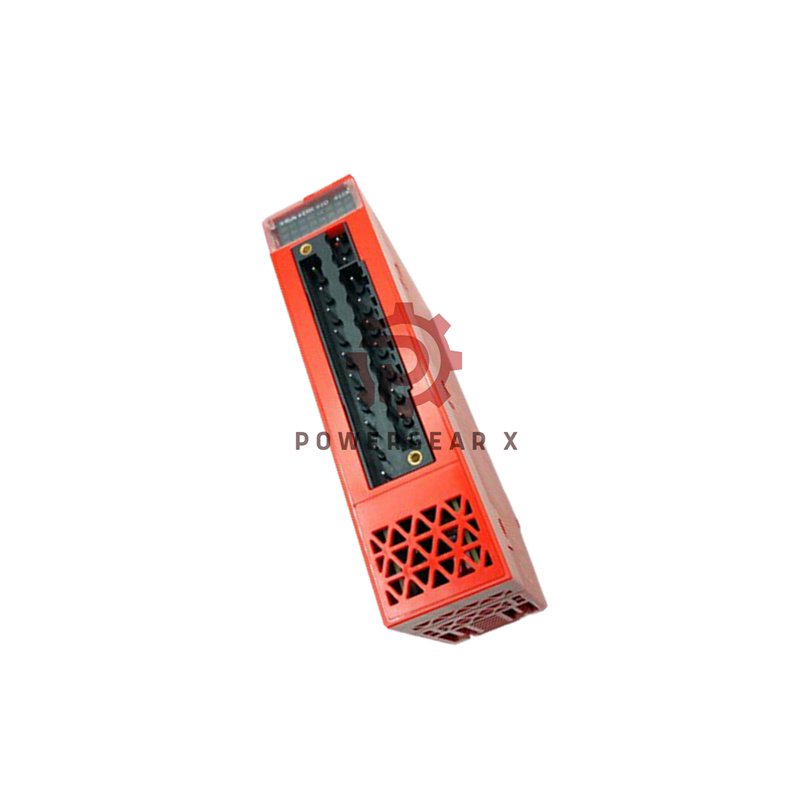

Modicon X80 BMXSAI0410 Safety Analog Input Module
The BMXSAI0410 safety analog input module delivers precise 4-20mA signal acquisition for critical applications. This Modicon X80 series module features four isolated channels with SIL3 safety certification. It ensures reliable performance in harsh industrial environments with excellent noise immunity.
Detailed Specifications
- Brand: Schneider Electric
- Model: BMXSAI0410 (Complete suffix: BMXSAI0410)
- Input Type: 4-20mA current, 4 channels
- Isolation: 500V between channels, 1500V to ground/bus
- Resolution: 16-bit conversion, 13-bit effective (0-12500 counts)
- Accuracy: ≤0.3% full scale with 30ppm/°C temperature drift
- Connection: 20-pin connector for easy wiring
- Power Consumption: 200mA at 3.3V DC, 115mA at 24V DC
- Weight: 0.143 kg, compact design saves panel space
Environmental Performance
- IP20 protection rating with conformal coating
- Resists vibration (3 gn) and shock (15 gn) in tough conditions
- Certified for ATEX, UL, CSA, TÜV, and marine applications
- Operates at altitudes up to 5000 meters with derating
- Resistant to gas, dust, sand, salt, and fungal growth
Installation & Warranty
- Easy integration with Modicon X80 PLC systems
- LED indicators for channel status and fault diagnosis
- 12-month warranty with global technical support
- Worldwide shipping via FedEx, UPS, and DHL
- Digital filtering reduces noise for accurate measurements
Technical FAQ
- What is the minimum current resolution of the BMXSAI0410?
The module provides 2μA resolution for precise 4-20mA signal measurement. - How does the isolation protect the system?
500V channel isolation prevents cross-talk and ground loop issues. - What is the sampling rate for four channels?
All four channels update every 6ms for fast process control. - Can this module handle signal overloads?
Yes, it withstands 25mA overloads without damage to inputs. - Is the BMXSAI0410 suitable for safety applications?
Yes, it meets SIL3 requirements for safety-critical systems.
Ordering & Support
- Email: sales@powergearx.com
- Phone: +86 18030005825 (WhatsApp)
- Package includes: 1x BMXSAI0410 module with documentation
