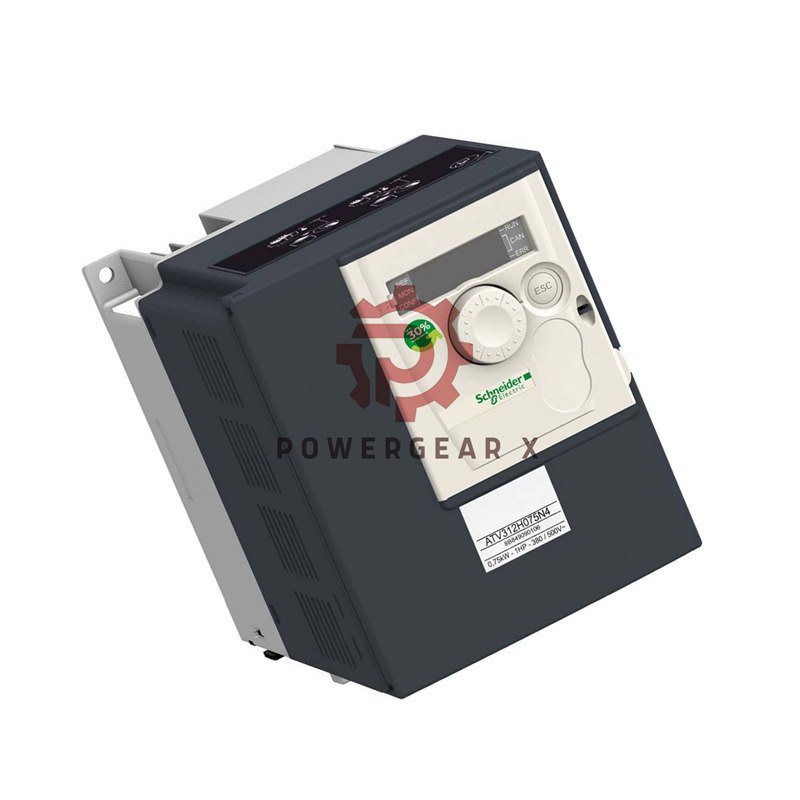

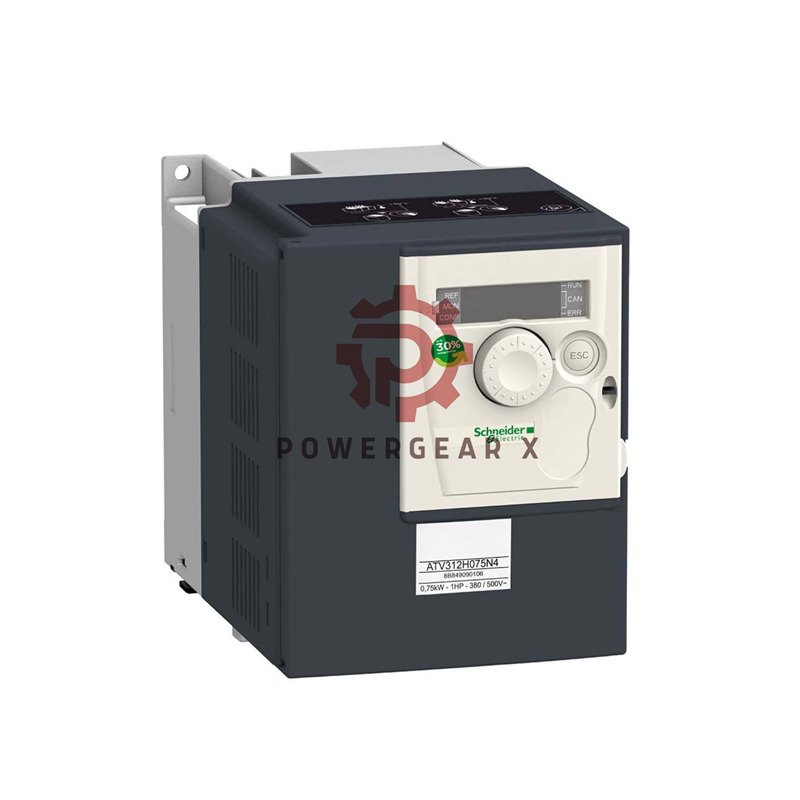

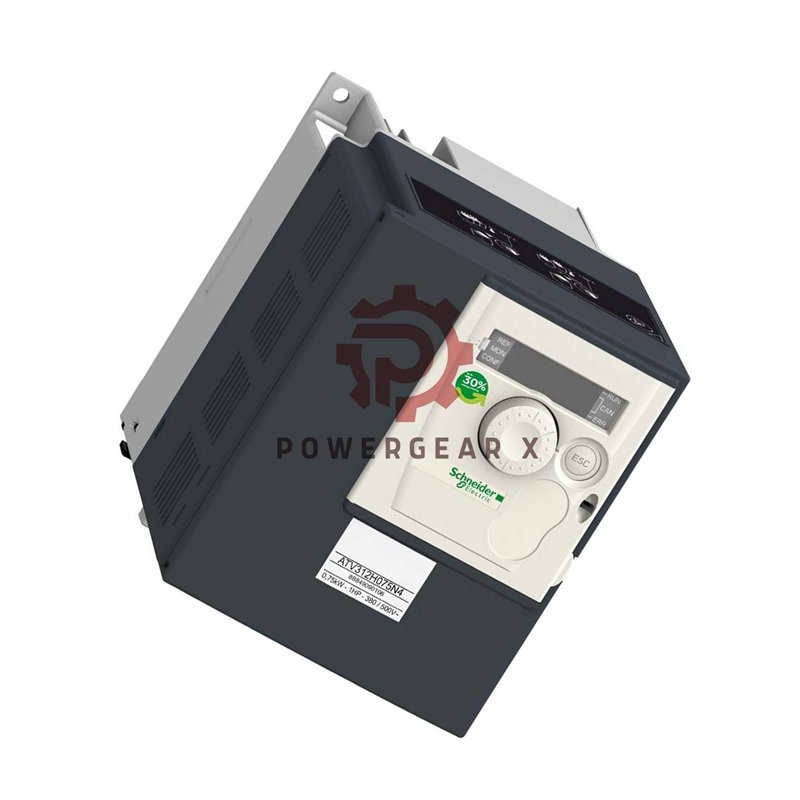

Schneider Electric ATV312 Drive – Advanced Motor Control Solution
The ATV312HU15N4 variable speed drive delivers exceptional 2 HP motor control with advanced features. This compact drive offers reliable performance for industrial applications with 380-500V three-phase operation.
Key Performance Advantages
- High Power Density: 1.5 kW in compact 107x143x152 mm design
- Wide Voltage Range: 380-500V ±15% input flexibility
- Advanced Control: Sensorless vector PWM technology
- Multiple Protocols: Modbus, CANopen, DeviceNet support
- Robust Protection: IP20 rating with integrated EMC filter
- High Torque: 170-200% transient overtorque capability
- Flexible I/O: 6 digital inputs, 3 analog inputs
Technical Specifications
- Manufacturer: Schneider Electric
- Model: ATV312HU15N4
- Rated Power: 1.5 kW (2 HP)
- Input Voltage: 380-500V three-phase
- Line Current: 6.4A at 380V, 4.8A at 500V
- Apparent Power: 4.2 kVA capacity
- Output Frequency: 0-500 Hz range
- Switching Frequency: 2-16 kHz adjustable
- Braking Torque: 150% for 60 seconds
- Communication: RS485, Modbus, CANopen
- Dimensions: 107x143x152 mm (WxHxD)
- Weight: 1.8 kg net weight
- Protection Rating: IP20/IP31/IP41 options
- Temperature Range: -10°C to +50°C operation
- Altitude Rating: 1000m without derating
- Efficiency: High power factor 0.95
Installation & Setup Features
- Vertical mounting with ±10° tolerance
- Integrated heat sink for cooling
- Multiple communication card options
- Easy parameter configuration
- Compact space-saving design
- Simple wiring with clear terminals
Package & Support Information
- Complete ATV312HU15N4 drive unit
- Professional documentation included
- 12-month comprehensive warranty
- Express shipping: FedEx, UPS, DHL
- Global certification compliance
- Author: Powergear X Automation
Expert Technical Questions
- What motor types work with this drive?
The drive controls standard asynchronous motors up to 1.5 kW with sensorless vector control.
- Can I use this drive in humid environments?
It handles 95% humidity without condensation but requires proper enclosure for wet conditions.
- What communication options are available?
The drive supports Modbus, CANopen, DeviceNet, Profibus DP, and other major protocols.
- How does the braking system work?
It provides 150% braking torque with or without external resistor for quick stopping.
- What maintenance does this drive require?
Regular cleaning, ventilation checks, and firmware updates ensure optimal performance.
