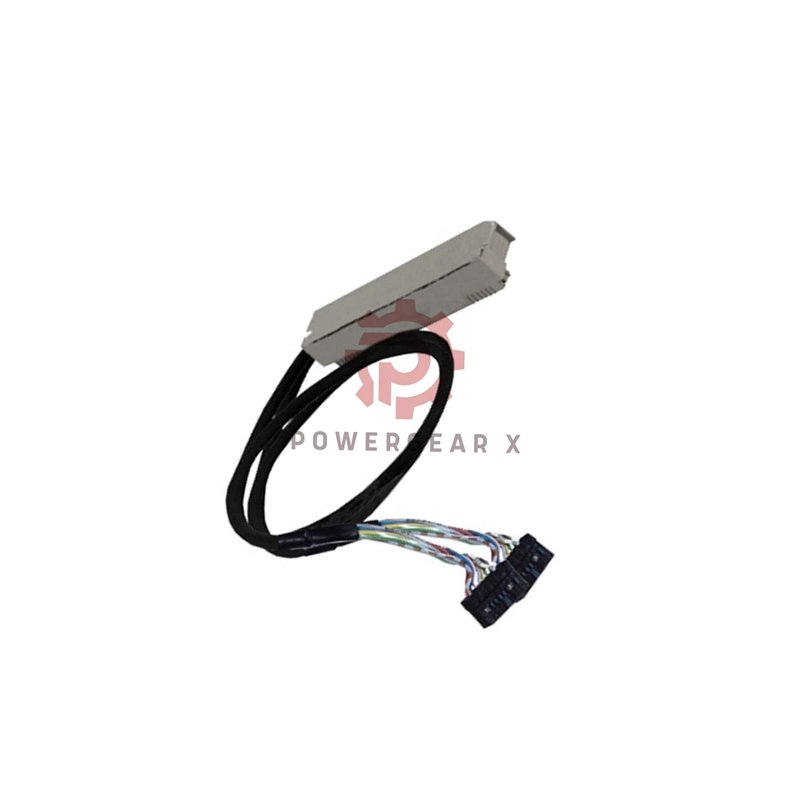

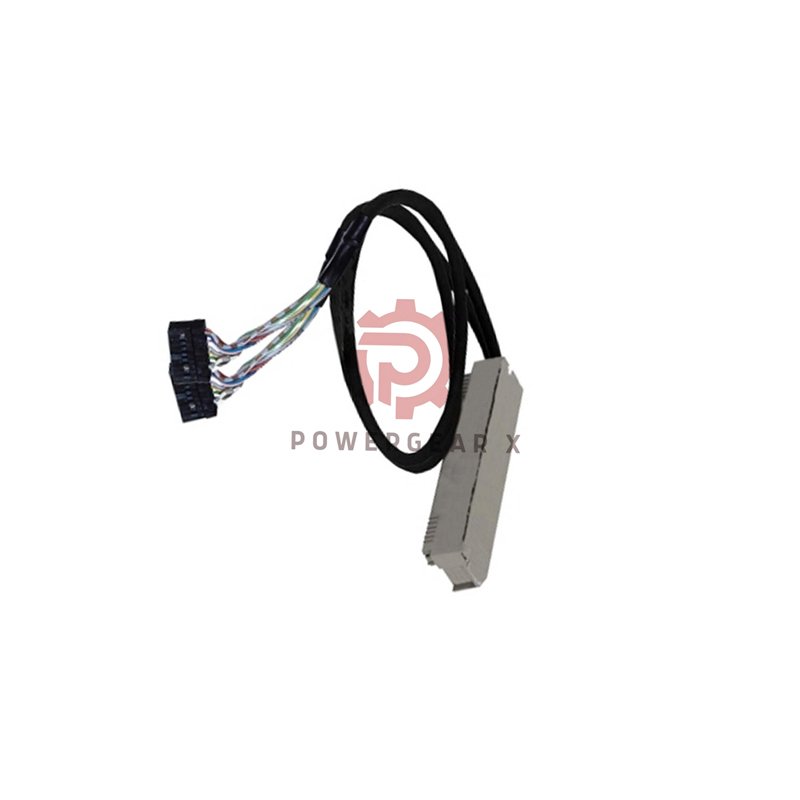

Schneider Electric ABFM16H301 Modicon Quantum Cabled Connector

Schneider Electric ABFM16H301 Modicon Quantum Cabled Connector

• Author: Powergear X Automation
• The ABFM16H301 ensures clean and stable signal routing for Modicon Quantum PLC systems.
• This connector supports digital relay output wiring in compact control cabinets.

Design Highlights

• 16 Channels: Supports multi-point output wiring in one cable.
• Dual HE10 Ends: Allows fast and secure PLC interface connection.
• Shielded Cable: Reduces noise in industrial environments.
• Channel Split: Two groups of eight channels improve wiring flexibility.

Product Structure

• Cabled Connector Assembly
  • Series: Modicon Quantum
  • Channels: 16 total
  • Channel Layout: 2 × 8 split
  • Cable Length: 3 meters

Electrical Performance

• Rated Voltage: Up to 250 V for relay output circuits.
• Rated Current: 0.5 A per channel.
• Wire Gauge: AWG 22 for balanced flexibility and strength.
• Wire Section: 0.324 mm² copper conductor.
• Contact Ways: 20 ways support complex signal mapping.

Environmental Limits

• Operating temperature stays stable from -20 °C to +60 °C.
• Shielding protects signals from EMI and cabinet vibration.
• Multi-core cable resists bending during maintenance work.

Installation Notes

• Align HE10 connectors carefully before insertion.
• Avoid sharp bends near the connector ends.
• Route the cable away from high-power conductors.

Typical Applications

• PLC output wiring for industrial automation panels.
• Relay signal distribution in process control systems.
• Machine control cabinets using Quantum PLC hardware.

Package Contents

• ABFM16H301 cabled connector assembly.
• Factory-installed dual HE10 connectors.

Warranty and Logistics

• Standard factory warranty covers 12 months.
• Global shipping via FedEx, UPS, or DHL.

Professional FAQ

• Can this cable reduce wiring time?
  Yes, pre-terminated connectors speed up panel installation.
• Does shielding help in noisy plants?
  Yes, it limits interference from motors and drives.
• Is this connector reusable after removal?
  Yes, careful handling allows repeated installations.
• Does cable length affect signal quality?
  No, the 3 m length stays within safe signal limits.
• Is this suitable for continuous operation?
  Yes, it supports long-term industrial duty cycles.
