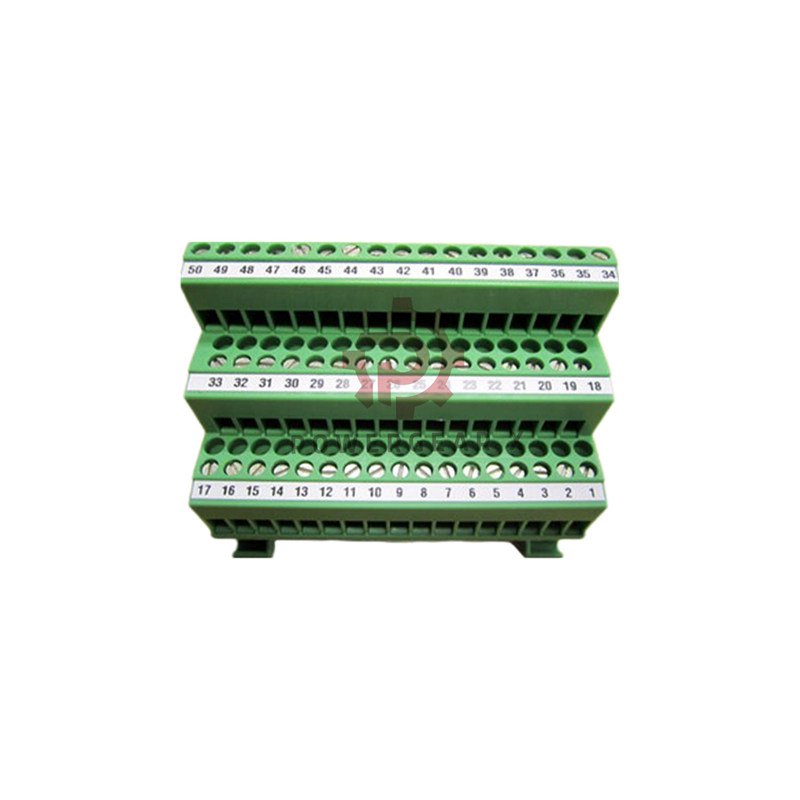

Schneider Electric 690MCB00000 Field Wiring Block | Modicon Quantum

Product Overview

• Product name: 690MCB00000 Field Wiring Block
• Manufacturer: Schneider Electric
• Series: Modicon Quantum
• Category: Motion control breakout module
• Author: Powergear X Automation

Design Purpose

• Built for motion control wiring tasks.
• Acts as a clean signal breakout point.
• Improves wiring order and clarity.
• Reduces installation errors.

Connection Structure

• Screw terminals: 50 points
• Main connector: 50-pin male type
• Strong contact for stable signals.
• Easy access for field wiring.

Mechanical Details

• Mounting: Panel mounted
• Weight: 0.48 kg
• Dimensions: 105 × 180 × 265 mm
• Compact layout saves panel space.

Electrical Characteristics

• Designed for low-voltage control signals.
• Supports stable current paths.
• Low contact resistance.
• Suitable for long-term operation.

System Compatibility

• Fully compatible with Modicon Quantum PLCs.
• Matches Quantum motion control modules.
• Integrates into existing cabinets.

Typical Applications

• Motion control signal distribution.
• Servo and drive wiring panels.
• Industrial automation cabinets.
• OEM control system builds.

Warranty & Shipping

• Warranty: 12 months
• Shipping methods: FedEx, UPS, DHL
• Export-grade protective packaging.

Professional FAQ

• Is this block required for Quantum motion modules?
• It is recommended for clean and safe wiring.
• Can it handle frequent wiring changes?
• Yes. Screw terminals allow repeated use.
• Does it reduce cabinet troubleshooting time?
• Yes. Clear terminal layout helps fast checks.
• Is this suitable for retrofit projects?
• Yes. It fits existing Quantum panels well.
• How to choose the right wiring block?
• Match pin count and PLC series first.
