Product details

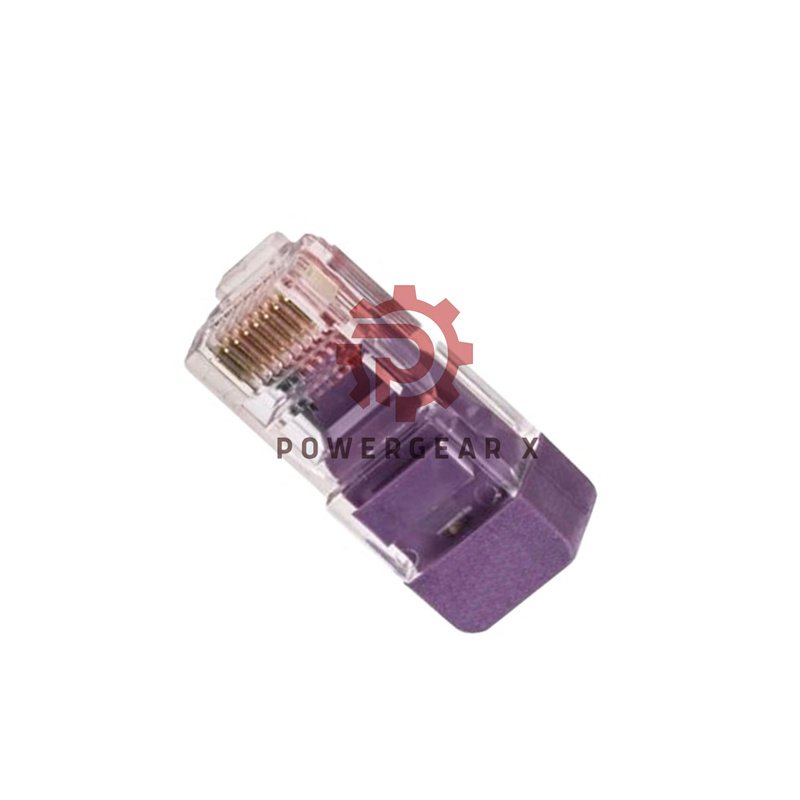

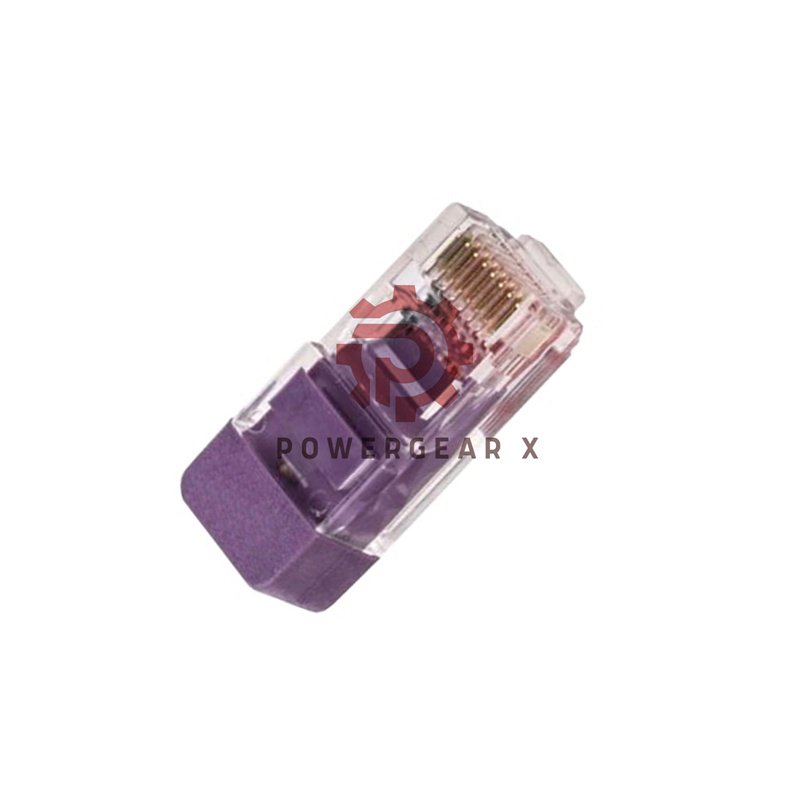

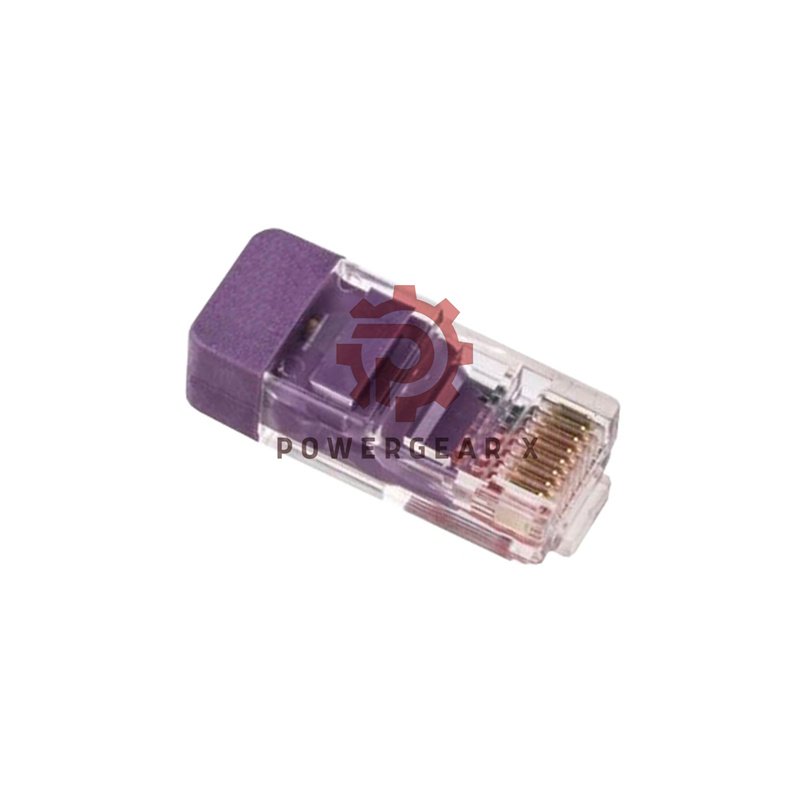

Schneider Electric ModBus Plus Terminator
The 170XTS02100 ensures reliable network communication for industrial systems. This robust line terminator supports stable data transmission in demanding environments.
Quick Product Facts
- Professional ModBus Plus network termination
- Easy DIN rail or panel mounting installation
- Wide operating temperature from -10°C to 55°C
- 24V DC power supply for industrial use
- RJ45 connectors for simple network integration
- Rugged design withstands vibration and shock
Technical Specifications
- Manufacturer: Schneider Electric
- Model Number: 170XTS02100
- Product Type: ModBus Plus Line Terminator
- Product Series: Modicon Momentum
- Power Requirements: 24V DC Operating Voltage
- Temperature Range: -10°C to 55°C Operating
- Storage Temperature: -25°C to 70°C
- Humidity Tolerance: 5% to 95% Non-Condensing
- Physical Dimensions: 100mm x 100mm x 40mm
- Enclosure Rating: IP20 Protection Class
- Connection Interface: Standard RJ45 Ports
- Shock Resistance: 50g Peak Acceleration
- Vibration Resistance: 5g RMS Capability
- Certifications: CE, UL, CSA Approved
- Product Weight: 0.5 Kilograms
Key Benefits
- Ensures signal integrity in ModBus Plus networks
- Easy installation on standard DIN rails
- Works with multiple Modicon platforms
- Robust construction for harsh conditions
- International safety certifications
- Compact size saves control panel space
Environmental Ratings
- IP20 protection against dust and contact
- Wide humidity range: 5% to 95% RH
- Broad operating temperature: -10°C to 55°C
- Extended storage range: -25°C to 70°C
- Strong vibration resistance: 5g RMS
- High shock tolerance: 50g peak
Ordering & Support
- 12-month manufacturer warranty included
- Worldwide shipping via FedEx, UPS, DHL
- Fast dispatch from available stock
- Complete documentation provided
- Technical support available
Common Questions
- Why is proper network termination important?
Correct termination prevents signal reflections that cause data errors in communication networks.
- Which Schneider platforms work with this terminator?
It works with Modicon Premium, Momentum, and Quantum automation systems.
- What does the IP20 rating mean for installation?
IP20 means it’s protected against large solids but not against water. Install in dry locations.
- Can this unit withstand factory floor vibrations?
Yes, it handles 5g vibration, making it suitable for most industrial environments.
- What’s the best practice for network installation?
Always install terminators at both ends of the network and use quality shielded cables.
