Product details

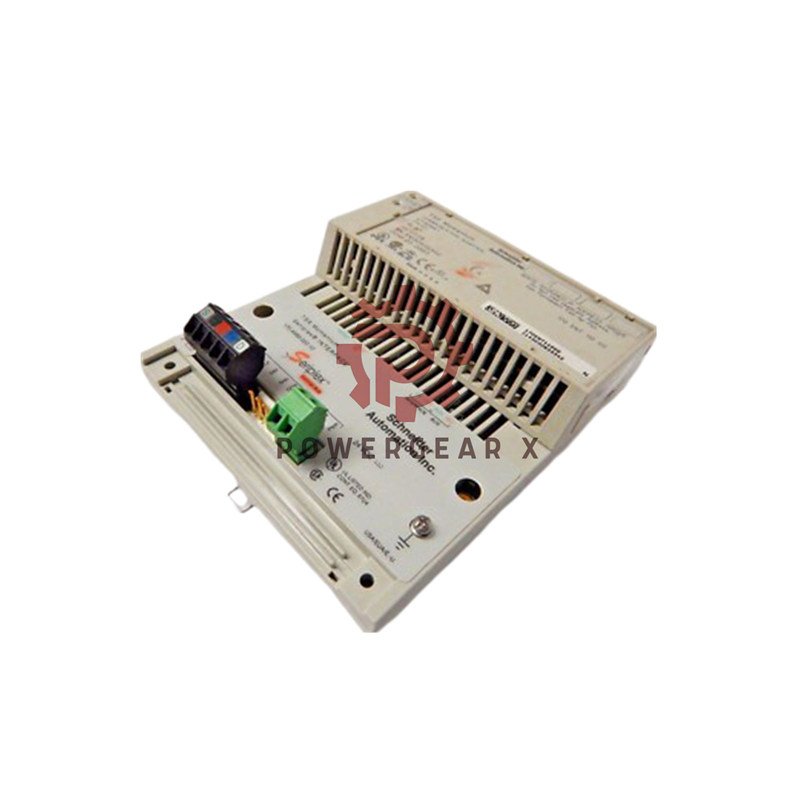

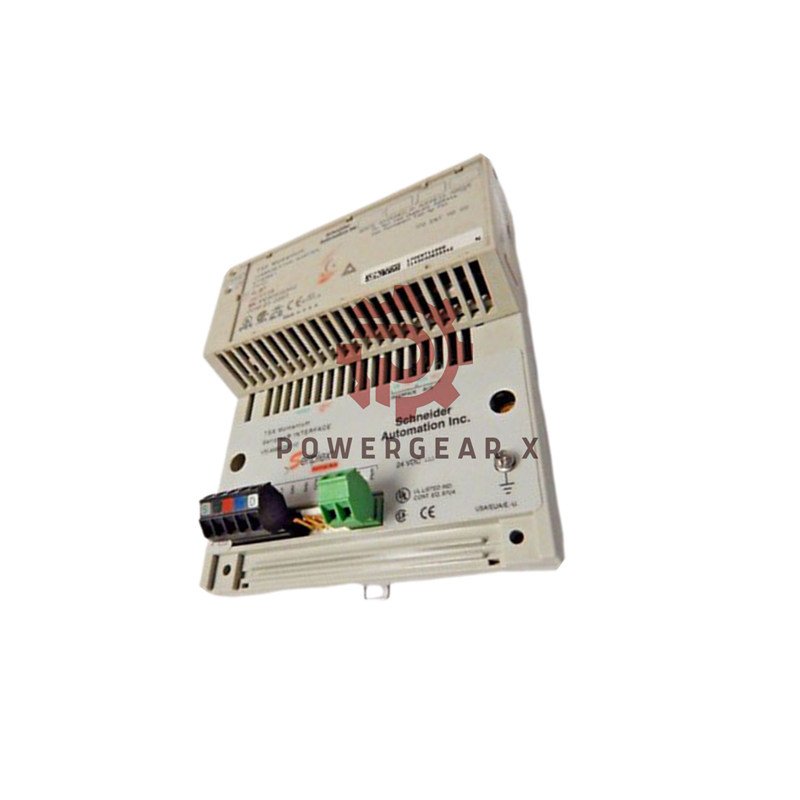

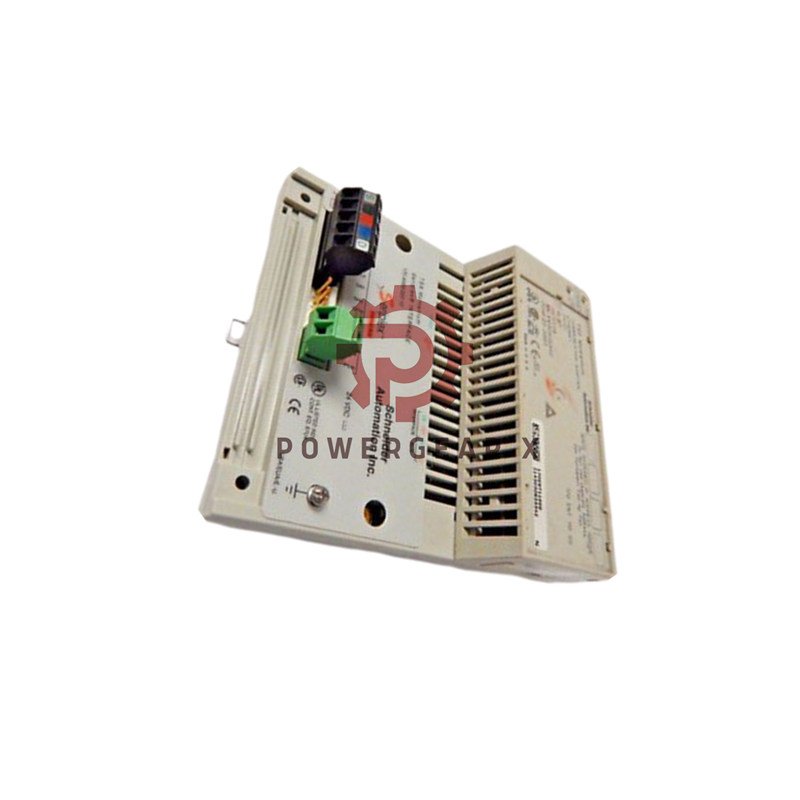

Schneider Electric Ethernet Adapter
The 170ENT11000 gives fast and stable Ethernet links in Modicon Momentum systems.
Main Highlights
- Speed: 10/100 Mbps for quick data flow.
- Modes: peer links and master–slave control.
- Medium: shielded twisted pair for clean signals.
- Network forms: star or multidrop.
- Up to 32 devices per line.
Core Specs
- Brand: Schneider Electric
- Model: 170ENT11000
- Series: Modicon Momentum
- Weight: 0.11 kg (0.25 lbs)
- Cable reach: up to 1000 m
- Port: RJ45 (100BASE‑TX)
- Error check: CRC‑32 for clean data
- Safety: auto fail‑safe mode
- Addressing: IEEE MAC + user IP
- Status: LED for link, speed, and activity
- Power draw: low‑load design for stable work
- EMI immunity: high noise tolerance for harsh sites
Why This Adapter Helps
- Works in long lines up to 1000 m with low loss.
- Handles busy traffic in plant networks.
- Fits in small panels due to light build.
- Keeps links stable with strong CRC checks.
- LEDs give instant read on link health.
Use Guide
- Plug the RJ45 and set IP values.
- Keep cable shield grounded for clean signals.
- Use star form for simple layout.
- Use multidrop for long lines with many nodes.
- Check LEDs during start‑up for proper link.
Package
- One 170ENT11000 module
- Basic install note
- Shipped by FedEx, UPS, or DHL
- 12‑month warranty
Contact
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
FAQ
- Q: How do I keep long lines stable?
A: Use shielded cable and bond both ends well. - Q: What speed should I pick?
A: Use 100 Mbps when you move large data blocks. - Q: How do I avoid IP clashes?
A: Plan IP ranges before setup and label ports. - Q: What if LEDs show slow link?
A: Replace patch cables and check switch ports. - Q: How do I cut noise issues?
A: Route cables away from drives and heavy loads.
