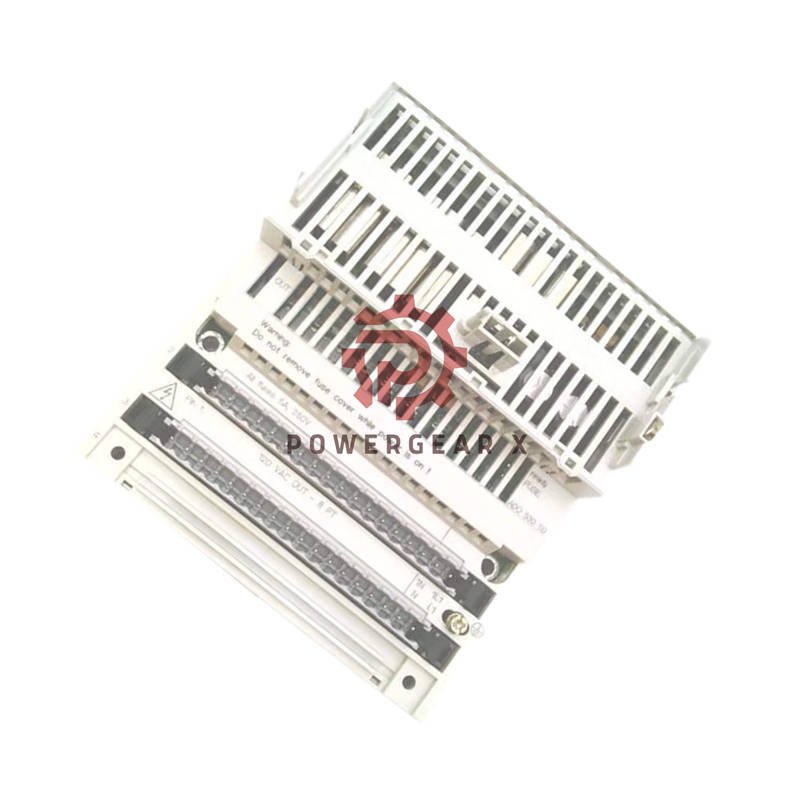

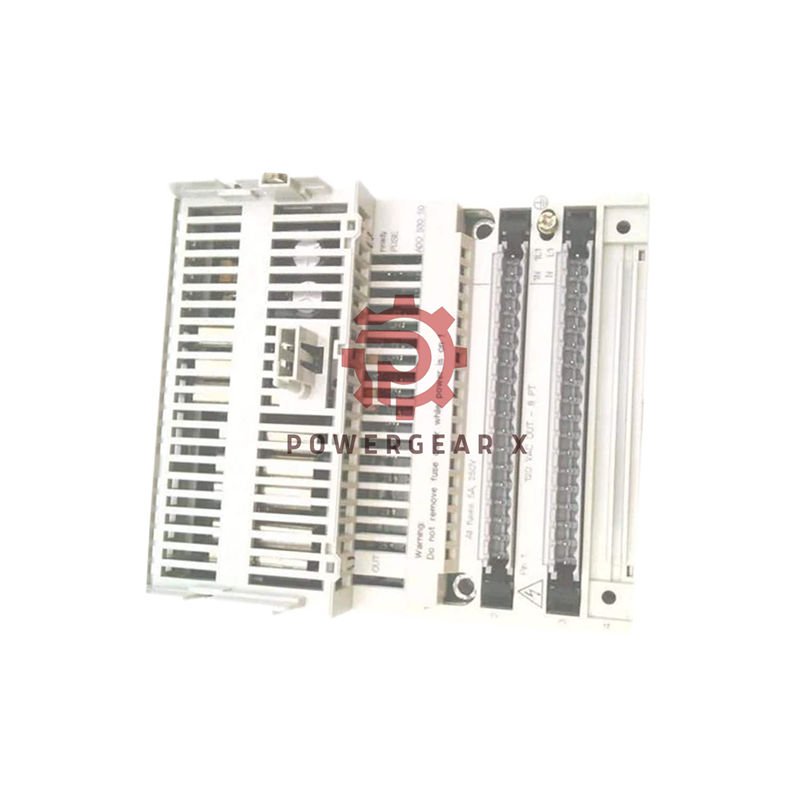

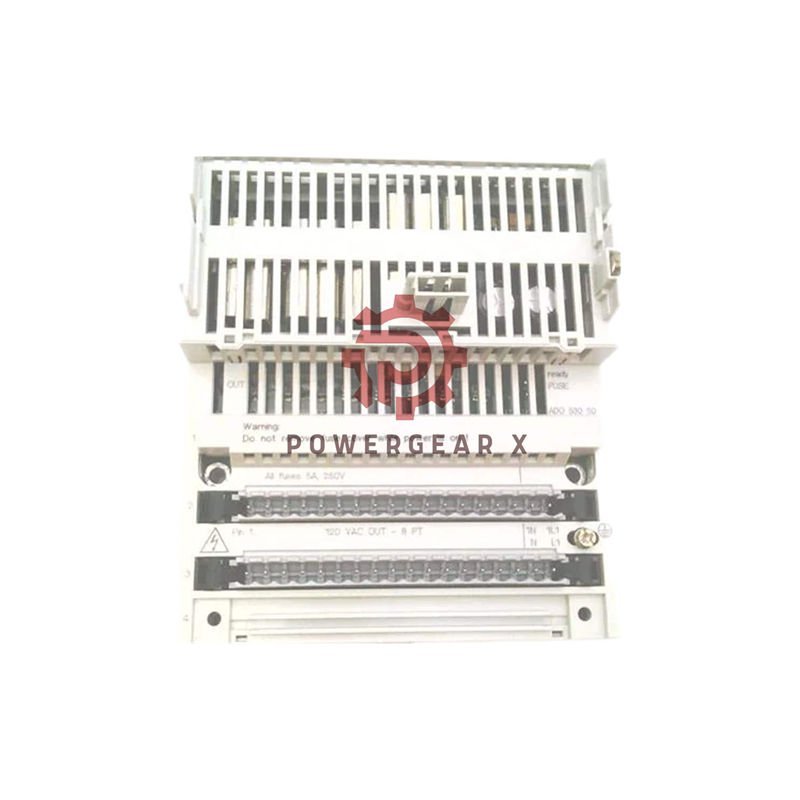

Schneider Electric 170ADO53050 Discrete Output Module
Powergear X Automation offers the 170ADO53050 for Modicon Momentum systems. It provides 8 output channels at 120 V AC with Triac switching and 2 A per channel. Includes 12-month warranty and fast global shipping via FedEx, UPS, or DHL.
Key Product Highlights
- 8 discrete outputs at 120 V AC
- 2 A current per channel, 16 A total
- Triac switching for stable AC control
- Fast switching with 0.5-cycle response
- Internal fuse protection for overload safety
Technical Specifications
- Model: 170ADO53050
- Voltage: 120 V AC switching
- Output type: Triac
- Minimum current: 5 mA
- Max leakage: 1.9 mA
- Voltage drop: <1.5 V at 2 A
- Surge endurance: 10 A for 2 cycles, 15 A for 1 cycle
- Short-circuit protection: 5 A slow-blow per group
- Channel isolation: 1780 V AC for 1 minute
- Power loss: 6 W typical, 7.5 W maximum
- Weight: 1.00 lbs (0.45 kg)
Performance Advantages
- Handles cyclical surges without loss of function
- High isolation for industrial environments
- Works well in large AC output control systems
- Simple wiring for fast installation
- Reliable switching under heavy system load
Suitable Applications
- Manufacturing automation
- Motor and actuator switching
- AC load control panels
- Industrial process control
- Modicon Momentum system expansion
Contact Information
Email: sales@powergearx.com
WhatsApp: +86 18030005825
FAQ
Q1: What installation mistake causes failures?
A: Oversized loads on one channel often trigger fuse protection.
Q2: How can I extend module service life?
A: Keep current levels below rated maximum and avoid wiring heating.
Q3: Is this module good for high-cycle operation?
A: Yes, Triac switching withstands repeated load changes.
Q4: What is the best way to confirm output faults?
A: Measure voltage drop and check downstream overcurrent conditions.
Q5: What improvement helps surge-heavy panels?
A: Use upstream surge absorbers or RC snubbers for stable switching.
