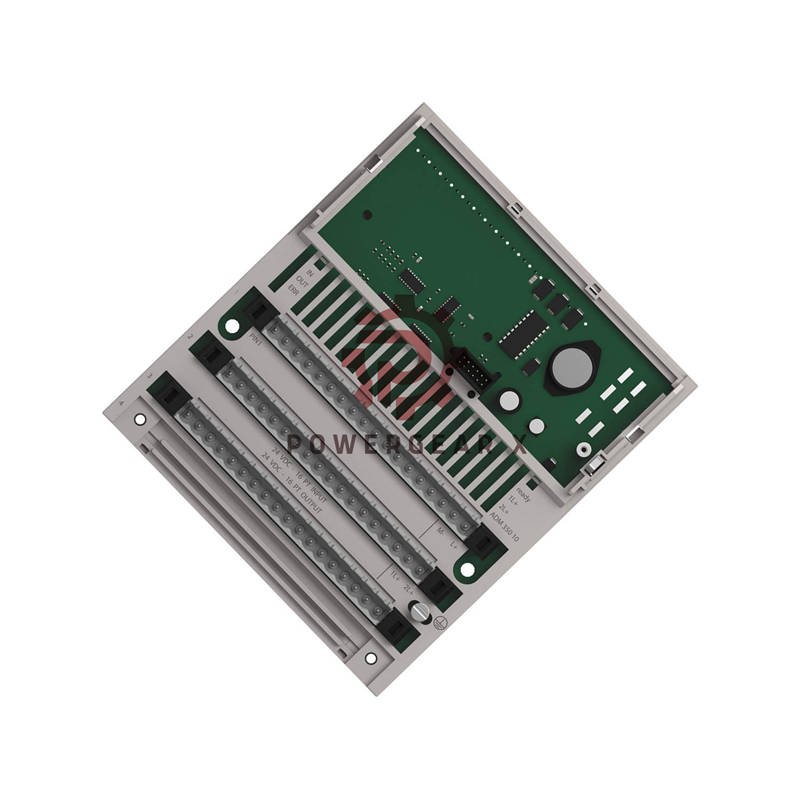

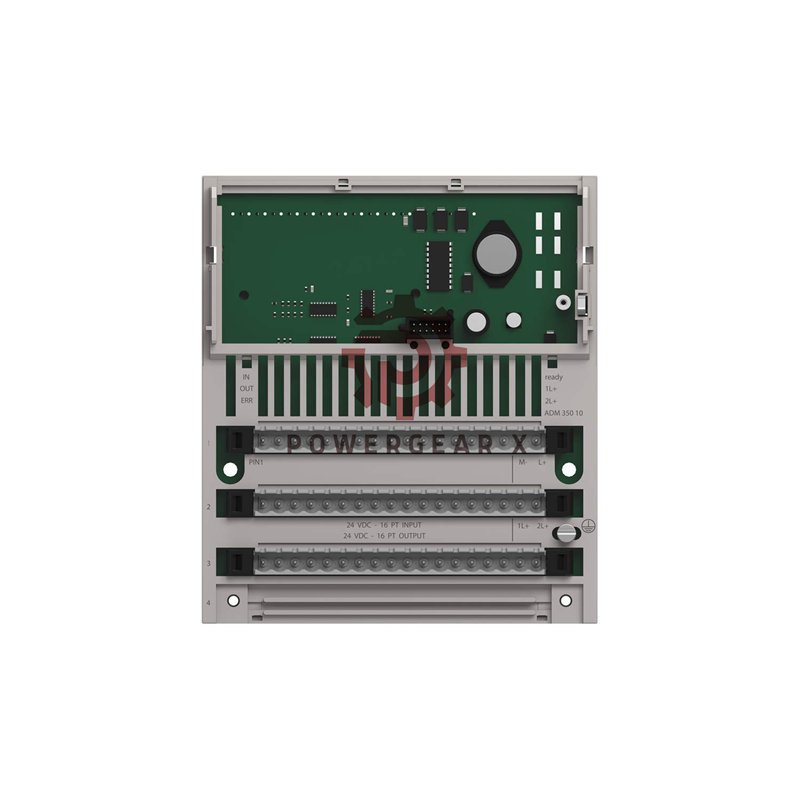

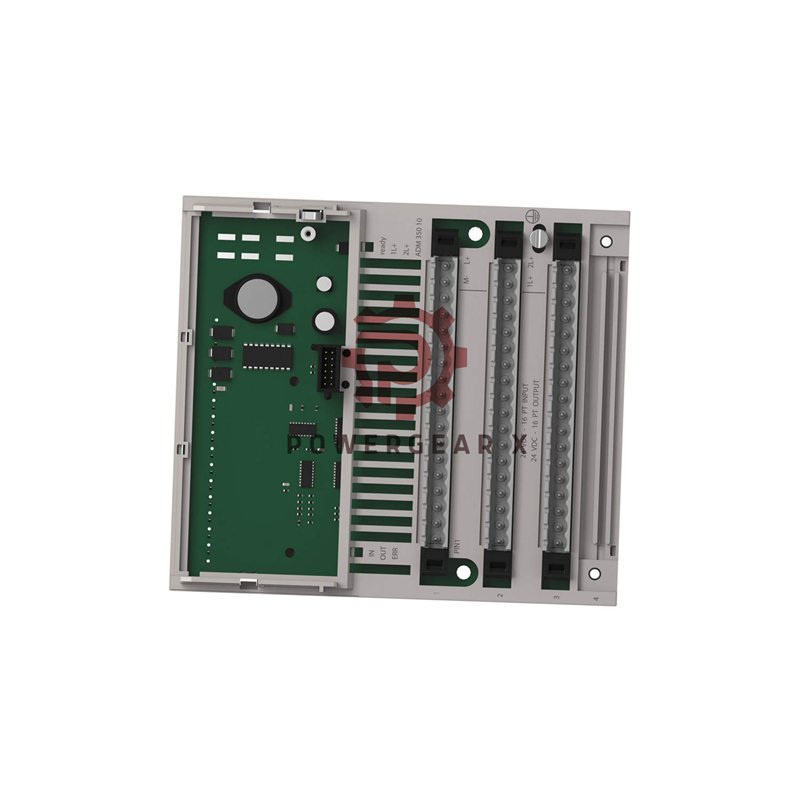

Schneider Electric 170ADM35010C Discrete I/O Module Overview
The 170ADM35010C is a robust discrete I/O module from the Modicon Momentum series. It supports 16 DI and 16 DO channels and runs at 24 V DC. Author: Powergear X Automation.
Main Features
- Model: 170ADM35010C
- Type: Discrete I/O Module
- Channels: 16 DI / 16 DO
- Input Voltage: 24 V DC
- Output Voltage: ≤ 30 V DC
- Current Rating: 0.5 A per channel
- Input Resistance: 4 kΩ
- Logic: Positive
- Protective Coating: Humiseal 1A33 conformal coating
- Temperature Range: -40°C to +70°C
- Humidity: Max 80% RH non-condensing
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
Extended Technical Data
- Network Frequency: 47–63 Hz
- Output Type: Solid State Switch
- Storage Humidity: Max 80% RH non-condensing
- Max Operating Altitude: 1000 m above sea level
- Power Consumption: 1.8 W typical
- Mounting: DIN rail compatible
- Dimensions: 100 x 22 x 120 mm
Product Advantages
- Reliable discrete I/O operations for automation projects
- Wide temperature tolerance for industrial environments
- Protected against moisture and dust with conformal coating
- Solid state outputs provide fast, stable switching
- Easy integration into Modicon Momentum systems
FAQ
Can the 170ADM35010C work in extreme cold?
Yes, it operates effectively down to -40°C according to field tests.
Is the output voltage safe for connected devices?
Yes, it provides ≤ 30 V DC with 0.5 A per channel for reliable operation.
Does it require maintenance for the protective coating?
No, the Humiseal 1A33 coating provides long-term protection without service.
Can it handle high-humidity environments?
Yes, it tolerates up to 80% RH non-condensing safely.
Is installation complicated?
No. It mounts easily on DIN rails in standard Modicon panels.
