Schneider Electric 140XTS33200 I/O Connector | Modicon Quantum Accessory

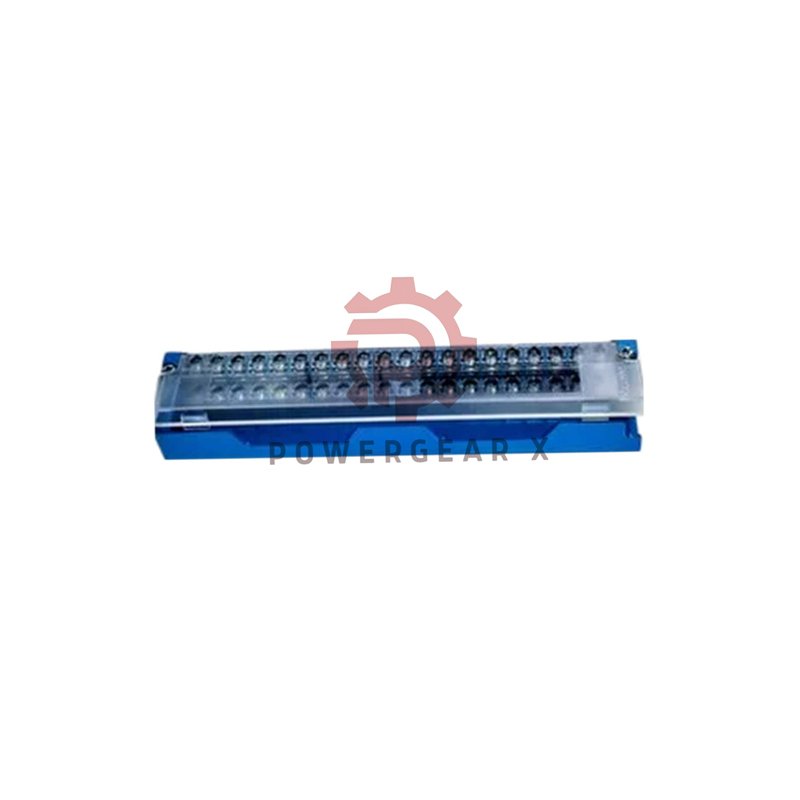

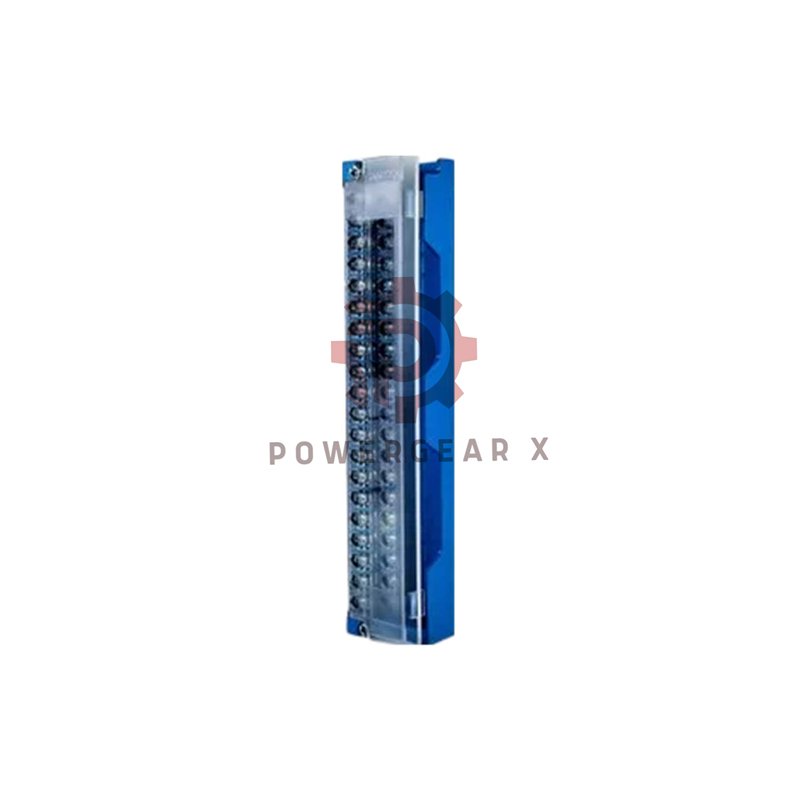

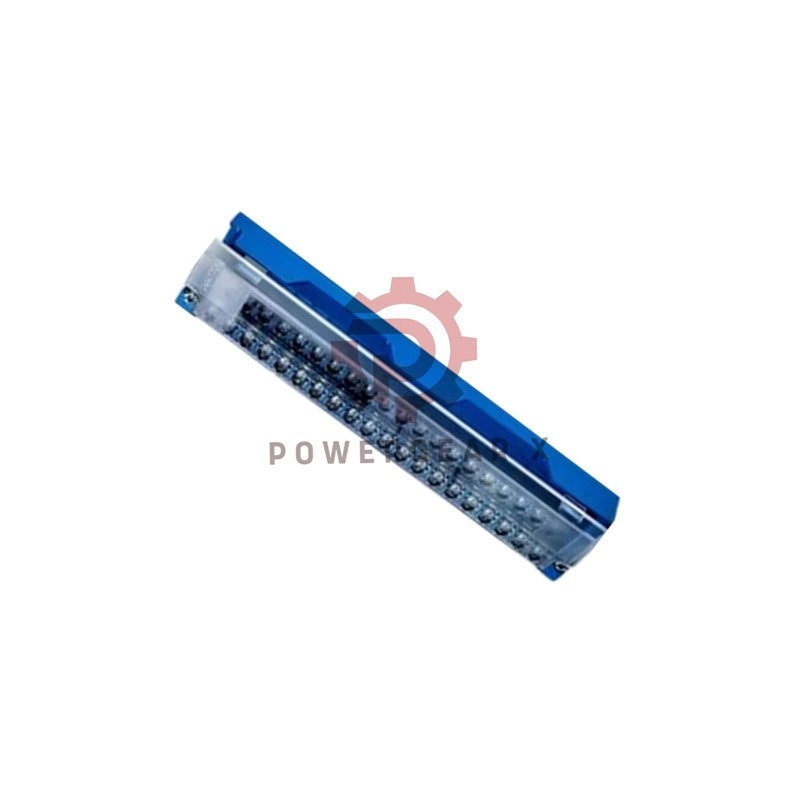

Schneider Electric 140XTS33200 I/O Connector

The 140XTS33200 is a compact and safe I/O connector designed for Modicon Quantum systems.

Key Functional Value

• 8-channel signal support enables stable multi-point connections.
• 40-pin layout ensures secure and organized wiring.
• Intrinsic safety design improves protection in sensitive control areas.

Electrical and Safety Design

• Galvanic isolation separates channels to reduce electrical interference.
• IP20 protection suits enclosed control cabinet installations.
• Low contact resistance supports consistent signal transmission.

System Compatibility

• Compatible with 140AII33000 and 140DII33000 modules.
• Supports 140DIO33000, 140AII33010, and 140AIO33000 modules.
• Designed specifically for the Modicon Quantum platform.

Mechanical and Installation Features

• Blue terminal strip improves visual identification during wiring.
• Lightweight structure reduces cabinet load and stress.
• Push-fit terminal alignment speeds up installation work.

Extended Technical Parameters

• Brand: Schneider Electric
• Model: 140XTS33200
• Product Type: Input / Output Connector
• Series: Modicon Quantum
• Channels: 8
• Pins: 40
• Isolation: Galvanic, channel-to-channel
• Protection Class: IP20
• Terminal Color: Blue
• Net Weight: 0.31 lbs (0.14 kg)

Typical Industrial Applications

• HVAC and building automation systems.
• Food and beverage processing lines.
• Power generation and energy facilities.
• Automotive testing and control benches.

Packaging and Warranty

• One Schneider Electric I/O connector unit.
• Industrial protective packaging.
• 12-month standard warranty.
• Shipping available via FedEx, UPS, and DHL.

Frequently Asked Questions

• Does this connector support intrinsic safety modules?
  Yes, the design supports intrinsically safe Quantum I/O modules.
• Can this connector reduce signal noise?
  Galvanic isolation minimizes cross-channel electrical interference.
• Is this connector suitable for field installation?
  It fits best inside protected control cabinets due to IP20 rating.
• Does terminal color affect installation speed?
  Blue terminals help technicians identify connections faster.
• Can it replace older Quantum connectors?
  It integrates smoothly with supported Quantum module references.
