Product details

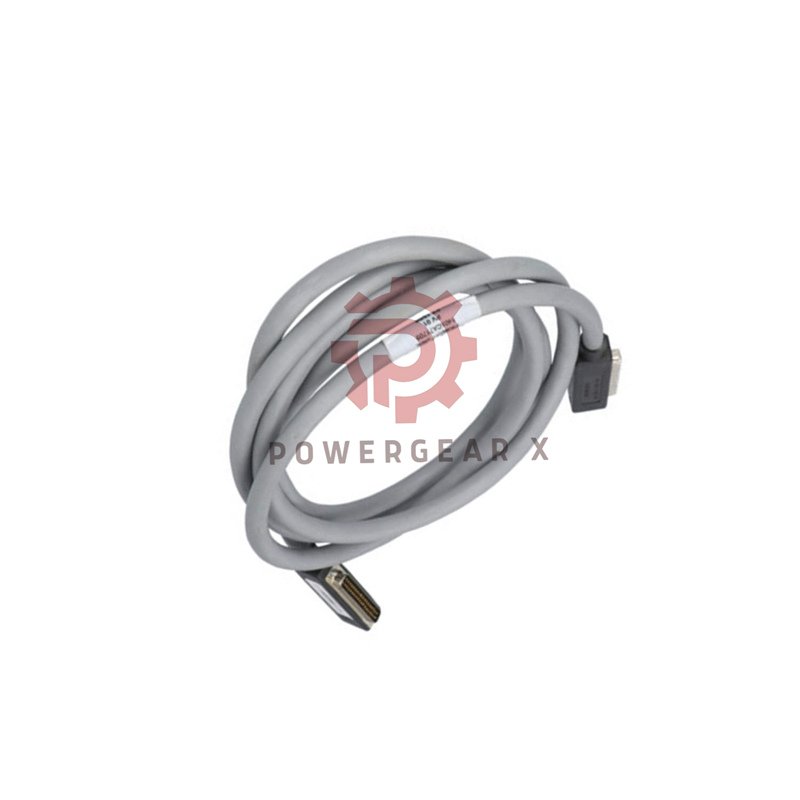

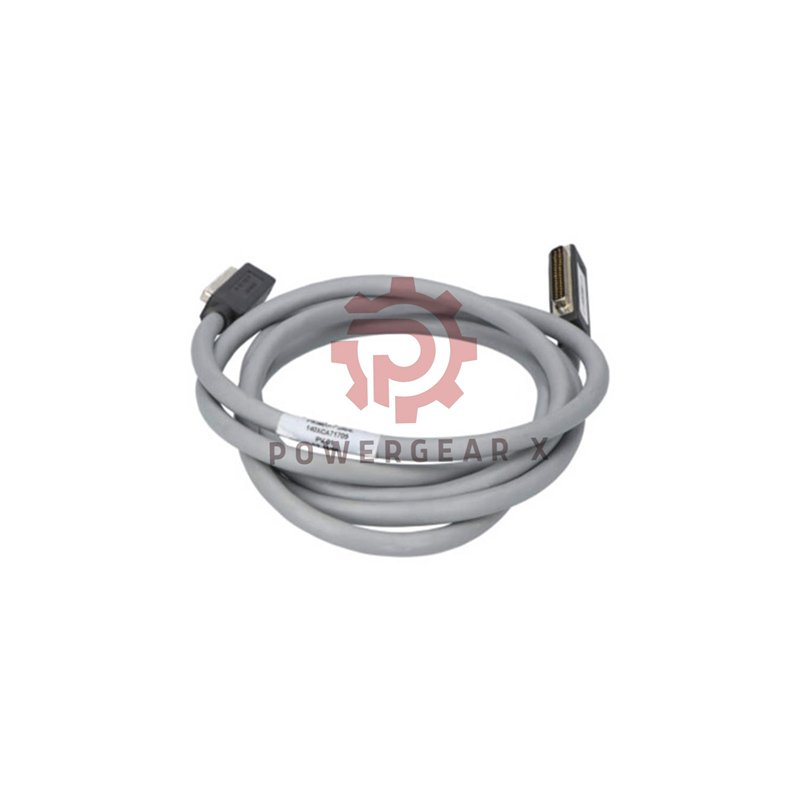

Schneider Electric Modicon Quantum Backplane Cable
Extend your system with the Schneider Electric 140XCA71709 backplane cable. This 3-meter cable connects remote racks. It ensures reliable communication for your Modicon Quantum automation platform.
Product Highlights & Key Specs
- Brand & Model: Schneider Electric 140XCA71709
- Product Type: Backplane Expander Cable
- Core Function: Extends distance between Quantum PLC racks.
- Cable Length: 3 meters (9.84 feet) for flexible layout.
- Key Compatibility: Designed for the 140XBE10000 backplane expander.
- Robust Design: Rated for operation from -20°C to 60°C.
- Connection Protocol: Uses Modbus TCP/IP for stable data transfer.
- Input Voltage: 24V DC power requirement.
- Environmental Rating: IP20 protection against dust and moisture.
- High-Altitude Use: Suitable for installations up to 2000 meters.
Reliability & Support Details
- Durability: Built for harsh industrial environments.
- Warranty: Backed by a 12-month product warranty.
- Global Shipping: We ship via FedEx, UPS, and DHL.
- Package Includes: One (1) 140XCA71709 backplane expander cable.
- Need Help? Contact our experts for integration support. Email us at sales@powergearx.com or message on WhatsApp (+86 18030005825).
Expert Installation FAQs
- • What is the main purpose of this cable?
This cable expands your Quantum system. It lets you place CPU and I/O racks 3 meters apart for layout flexibility. - • What devices can I connect with the 140XCA71709?
It connects a Modicon Quantum CPU rack to a 140XBE10000 remote I/O drop. It is not a general-purpose network cable. - • Why is the 3-meter length significant?
This specific length is optimal. It maintains signal integrity for high-speed backplane communication over distance. - • Can this cable be used outdoors?
No. The IP20 rating is for indoor use only. Protect it from direct moisture and extreme weather conditions. - • How do I ensure a reliable connection?
Always secure the connectors firmly. Route the cable away from high-power lines to prevent electrical noise interference.
