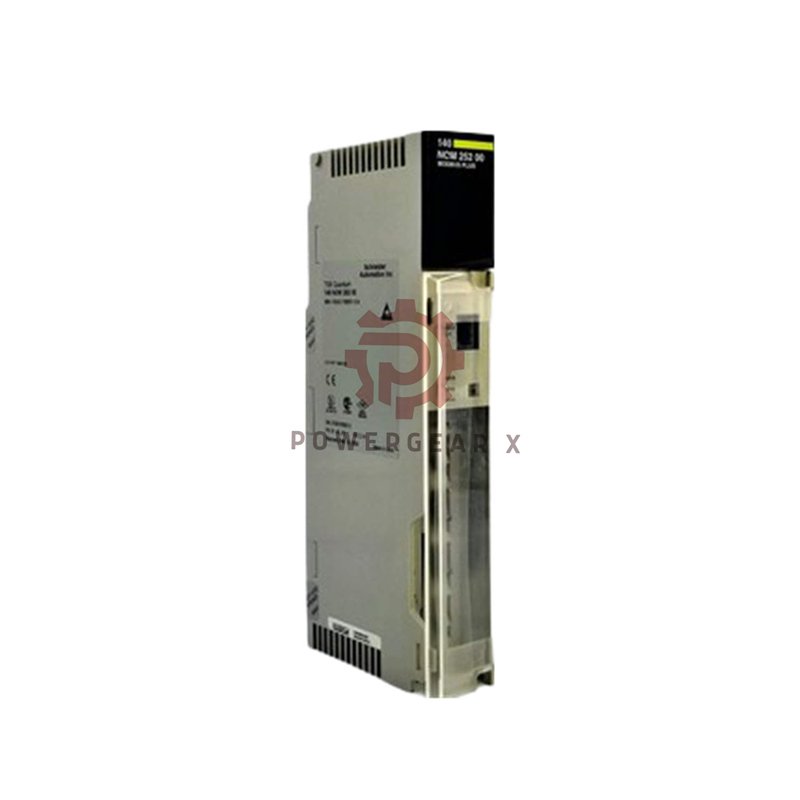

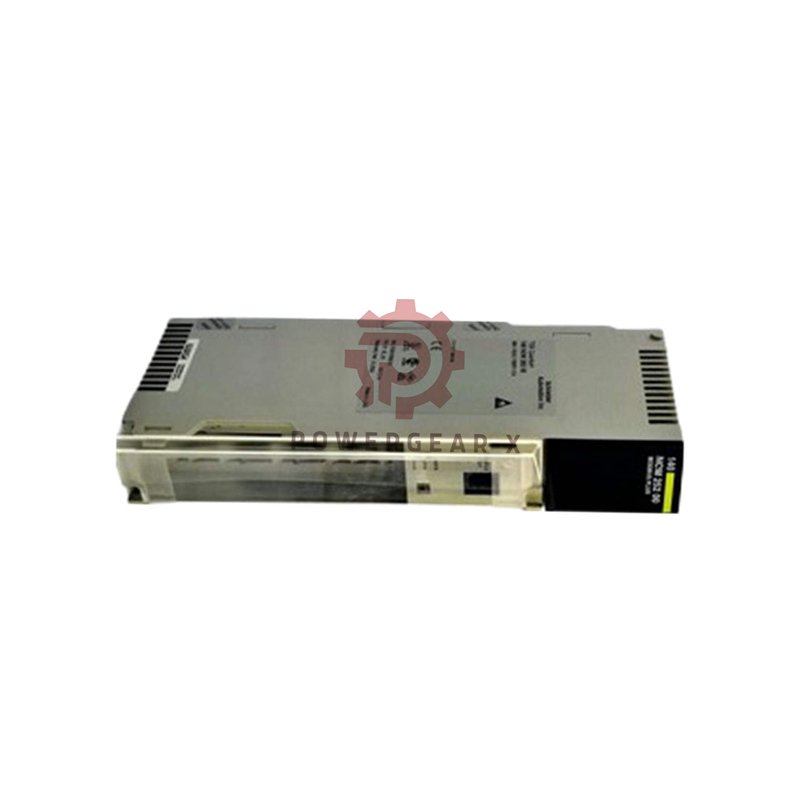

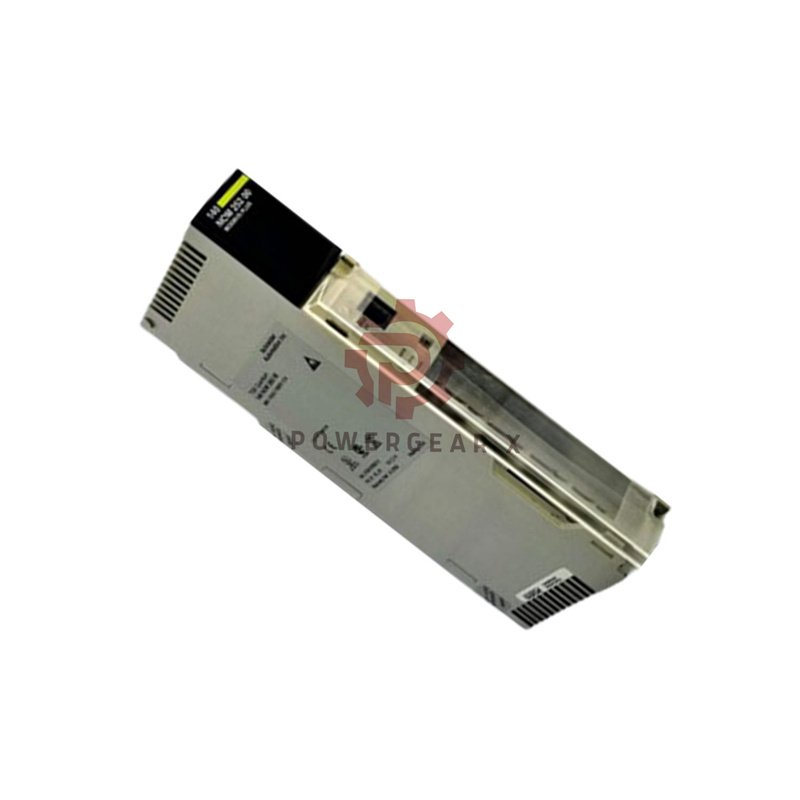

Schneider Electric 140NOM25200C DIO Head-End Adapter
The 140NOM25200C by Schneider Electric connects Modicon Quantum systems. This DIO head-end adapter enables reliable communication between devices. It offers two interface types for flexible installation.
Essential Technical Data
- Part Number: 140NOM25200C
- Brand: Schneider Electric
- Product Line: Modicon Quantum
- Interfaces: 1 Modbus fiber, 1 Modbus RS-232
- Transmission Speed: 1 Mbps maximum rate
- I/O Capacity: 30 input words, 32 output words
- Power Consumption: 4 watts total dissipation
- Bus Current: 750 mA required current
- Temperature Range: 0 to 60 °C operating
- Pulse Distortion: 5 nanoseconds maximum
- Signal Response: 20 nanoseconds rise/fall
- Dynamic Range: 20 dB performance rating
- Compliance: UL 508 safety standard
Communication Features
- Dual interface design for system flexibility
- Modbus fiber optic connection option
- RS-232 serial communication port
- RJ45 connector for easy installation
- TX/RX connectors for signal transmission
- 1 Mbps fast data transfer rate
- Multiple protocol support
Performance Specifications
- Minimum pulse width: 5 ns jitter
- Wavelength: 820 nm optical
- Power loss budget: 11-16.5 dB
- Optical transmission: -19.8 to -3.5 dBm
- Sensitivity scale: >30 dBm
- Detected silence: -36 dBm threshold
- ESD resistance: 4-8 kV protection
- EMF resistance: 10 V/m at 80-2000 MHz
Environmental Ratings
- Operating temperature: 0-60°C (32-140°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Humidity tolerance: 95% non-condensing
- Altitude rating: Up to 5000 meters
- Protective coating: Conformal Humiseal 1A33
- Industrial environment suitable
Certifications & Approvals
- UL 508 industrial standard
- CSA Class 1 Division 2
- RINA marine certification
- DNV offshore approval
- GL Germanischer Lloyd
- GOST Russian standard
- RMRS shipping registry
- C-tick Australian compliance
Product Advantages
- High-speed 1 Mbps communication
- Dual interface flexibility
- Wide temperature operation range
- Multiple industry certifications
- Low power consumption design
- Compact form factor
- Easy installation process
- Reliable signal transmission
Package Information
- Unit package: Single piece
- Dimensions: 31.5 x 16.5 x 5.0 cm
- Weight: 511 grams total
- GTIN: 3595861136984
- Category: US1PC2118150
- Discount schedule: PC21
Warranty & Shipping
- Warranty: 12 months from Powergear X Automation
- Shipping: FedEx, UPS, DHL available
- Processing: Same business day for stock items
- Tracking: Provided for all shipments
- Support: Technical assistance included
Expert Questions & Answers
- Q: What systems does this adapter work with?
- A: It’s designed for Modicon Quantum automation platforms specifically.
- Q: How many devices can connect simultaneously?
- A: The dual interfaces allow connection to two different network types at once.
- Q: What’s the maximum cable length supported?
- A: Fiber optic connections can extend much farther than copper, typically kilometers.
- Q: Does it need special configuration software?
- A: Standard Modicon programming tools work with this adapter module.
- Q: Can it operate in harsh industrial environments?
- A: Yes, with its wide temperature range and protective coating, it’s industrial-grade.
