Product details

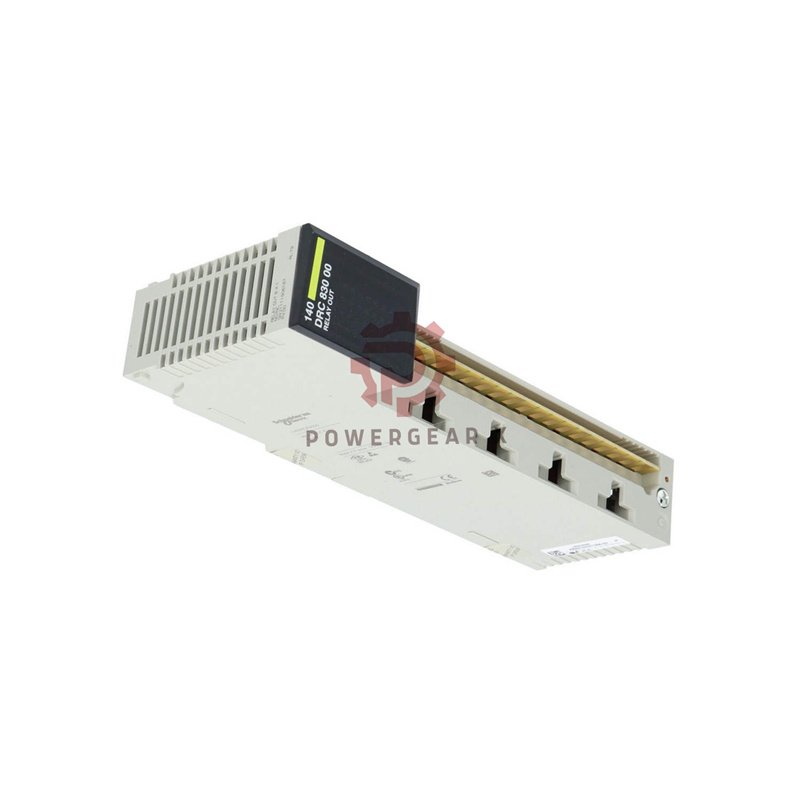

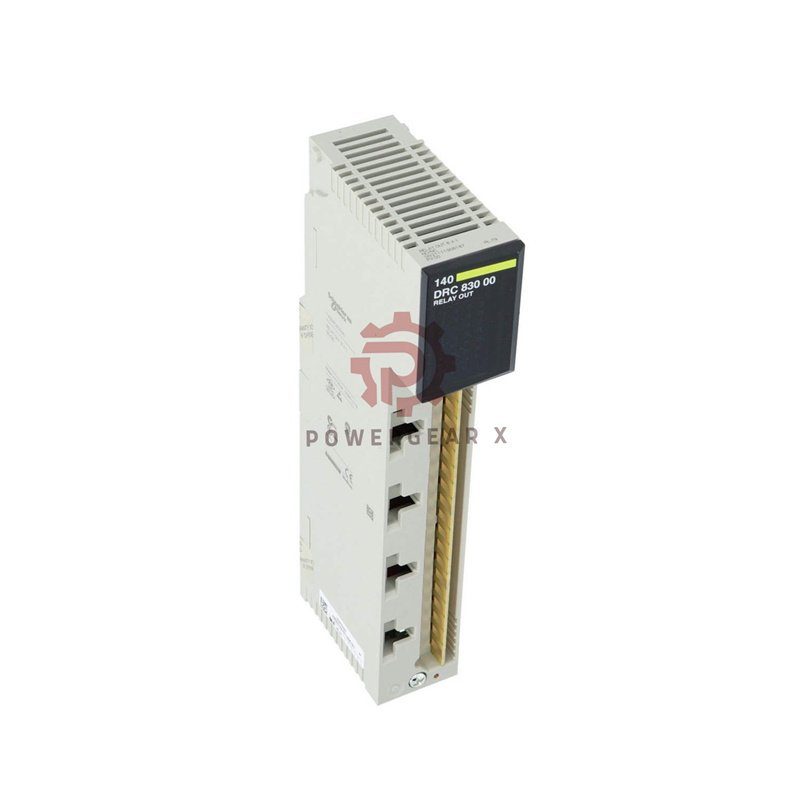

Schneider Electric 140DRC83000C Discrete Output Module
The 140DRC83000C controls field devices with confidence.
It offers reliable relay switching.
The design suits critical automation tasks.
It works well in harsh plants.
Product Identity
- Brand: Schneider Electric
- Series: Modicon Quantum
- Model: 140DRC83000C
- Module Type: Relay discrete output
- Author: Powergear X Automation
Output Architecture
- Total Channels: 8 outputs
- Contact Style: NO and NC
- Contact Form: Form C
- Address Space: 0.5 output word
Electrical Load Capability
- AC Voltage: 20 to 250 V AC
- DC Voltage: 30 to 150 V DC
- Low DC Control: 5 to 30 V DC
- Maximum Surge: 20 A for short duration
- Resistive Load: Up to 5 A
Switching Performance
- Switching Rate: 30 Hz resistive
- Response Time: 10 to 20 ms
- Mechanical Life: 10 million operations
- Electrical Life: Up to 200,000 cycles
Protection and Isolation
- Overvoltage Protection: Internal varistor
- Channel Isolation: 1780 Vrms AC
- Bus Isolation: 2500 V DC
- ESD Immunity: 4 kV contact, 8 kV air
- EMC Resistance: 10 V/m field strength
Environmental Endurance
- Operating Temperature: 0 to 60 °C
- Storage Temperature: -40 to 85 °C
- Humidity: Up to 95 percent
- Protection: Conformal coated surface
Diagnostics and Indicators
- Green LED for bus activity
- Red LED for external faults
- Eight LEDs for output status
Key Benefits
- Handles mixed voltage loads
- Long relay service life
- Clear status indication
- Strong electrical isolation
- Low power dissipation
Typical Applications
- Motor starters and contactors
- Solenoid valve control
- Alarm and signaling circuits
- Process automation outputs
- Power distribution panels
Warranty and Shipping
- Warranty: 12 months
- Shipping Services: FedEx, UPS, DHL
- Industrial-grade packaging
Professional FAQ
- When should I choose relay output instead of transistor?
- Use relay outputs for high voltage or mixed loads.
- Can this module drive inductive loads?
- Yes. Internal protection handles switching spikes.
- How do I extend relay life?
- Stay within rated current and reduce switching frequency.
- Is this module safe for noisy environments?
- Yes. It has strong EMC and ESD protection.
- What should I check before buying?
- Confirm load voltage, current, and channel count.
