Schneider Electric 140DRC83000 Relay Output Module | Modicon Quantum

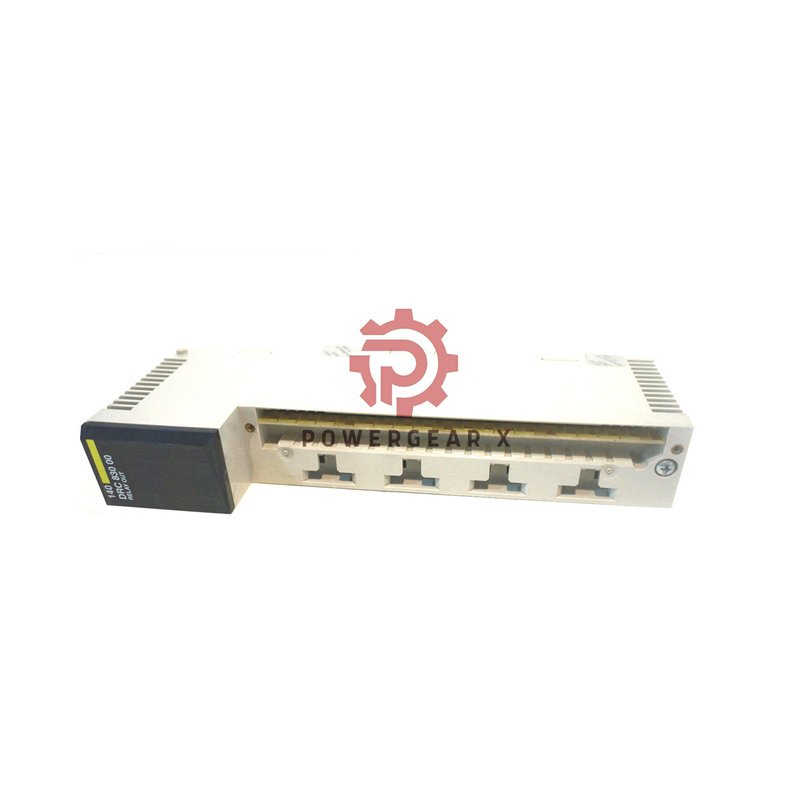

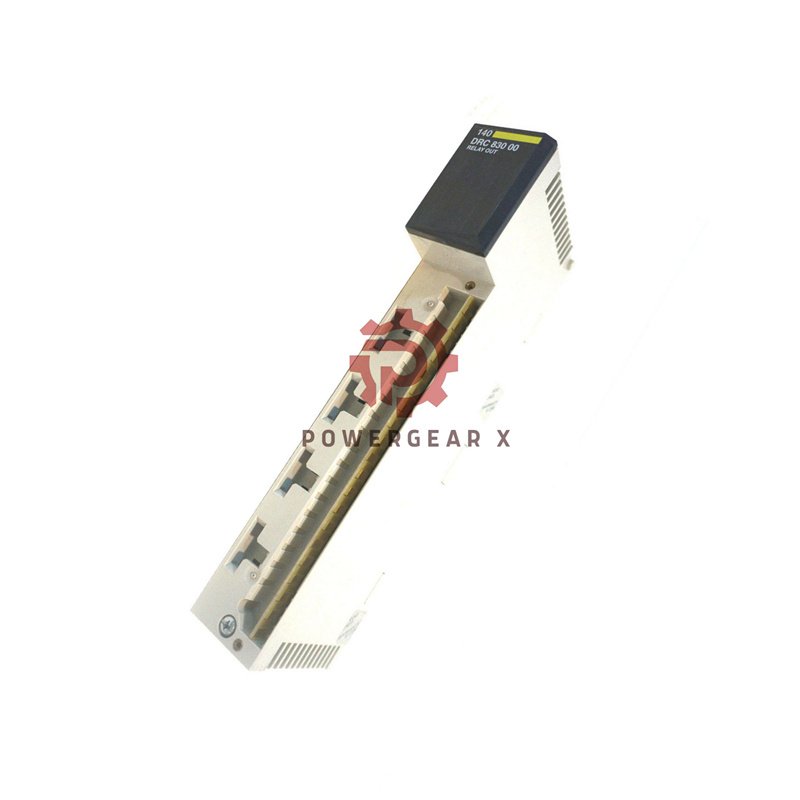

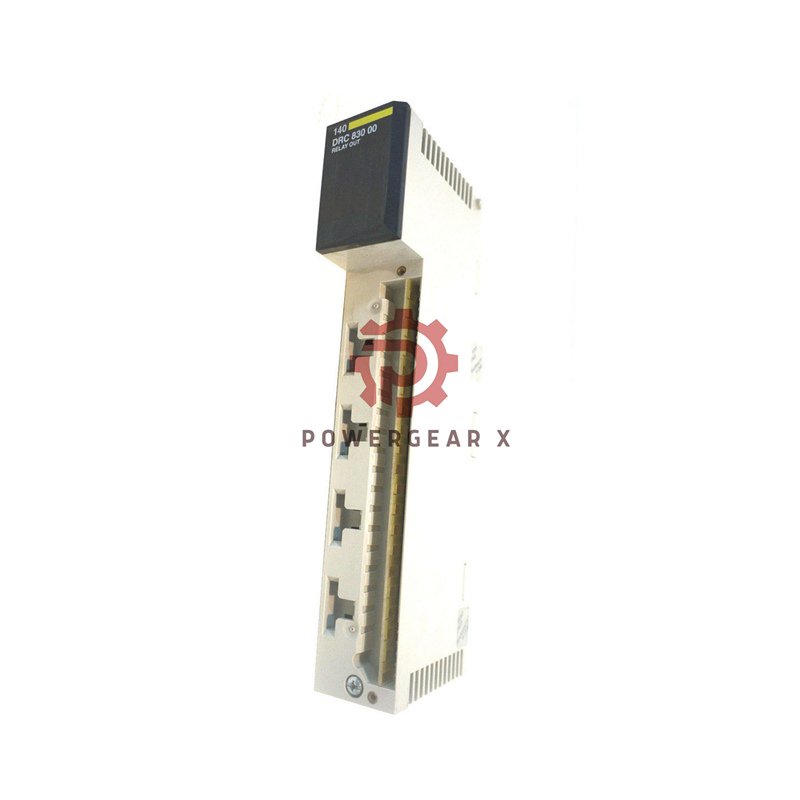

Introducing Schneider Electric Modicon Quantum 140DRC83000 Relay Output Module

The 140DRC83000 relay output module delivers robust performance for industrial automation. This 8-channel module supports versatile load control with high reliability. Schneider Electric designs it for harsh environments and complex applications.

Core Technical Specifications

• Brand: Schneider Electric
• Model: Modicon Quantum 140DRC83000
• Discrete Outputs: 8 channels with Form C (1NO/1NC) contacts
• Output Voltage Range: 5–250V AC/DC
• Max Load Current: 5A resistive (250V AC/30V DC)
• Switching Frequency: 30 Hz resistive load
• Isolation: 1780 Vrms between channels and bus
• Operating Temperature: 0°C to 60°C

Environmental Durability & Certifications

• ESD Protection: 4kV contact, 8kV air (IEC 801-2)
• EMI Resistance: 10V/m (80–2000 MHz)
• Operating Altitude: Up to 5000 meters
• Humidity Tolerance: 95% non-condensing
• Certifications: UL 508, CSA C22.2, FM Class 1 Div 2, GOST, ABS, DNV

Installation & Indicators

• Bus Current Requirement: 560 mA
• Addressing: 0.5 output word
• Status LEDs: Green for comms, red for faults, per-point green LEDs
• Power Dissipation: 2.75W + (0.5 x active points)
• Module Format: Standard Quantum form factor

Packaging & Shipping

• Unit Package Includes: One 140DRC83000 module
• Box Dimensions: 12.28″ x 6.42″ x 1.77″ (31.2 x 16.3 x 4.5 cm)
• Weight: 16.8 oz (475 g)
• Shipping: FedEx, UPS, DHL worldwide

FAQ

• Q: What loads can this module drive?
  A: It handles resistive, inductive, lamp, and motor loads.
• Q: Is surge protection included?
  A: Yes, an internal varistor protects up to 275V.
• Q: What is the mechanical lifespan?
  A: It endures 10 million mechanical cycles.
