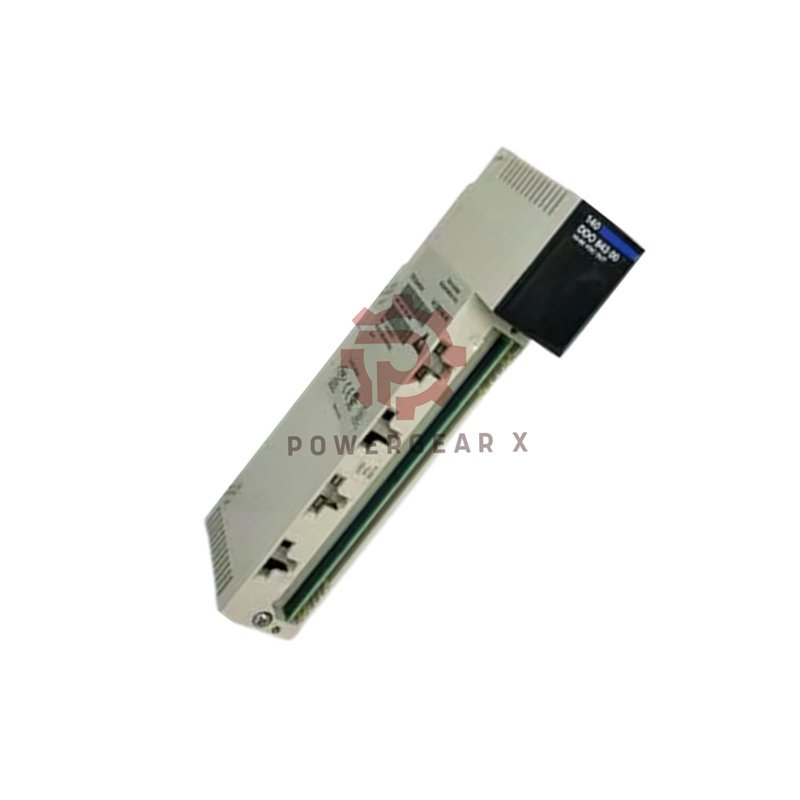

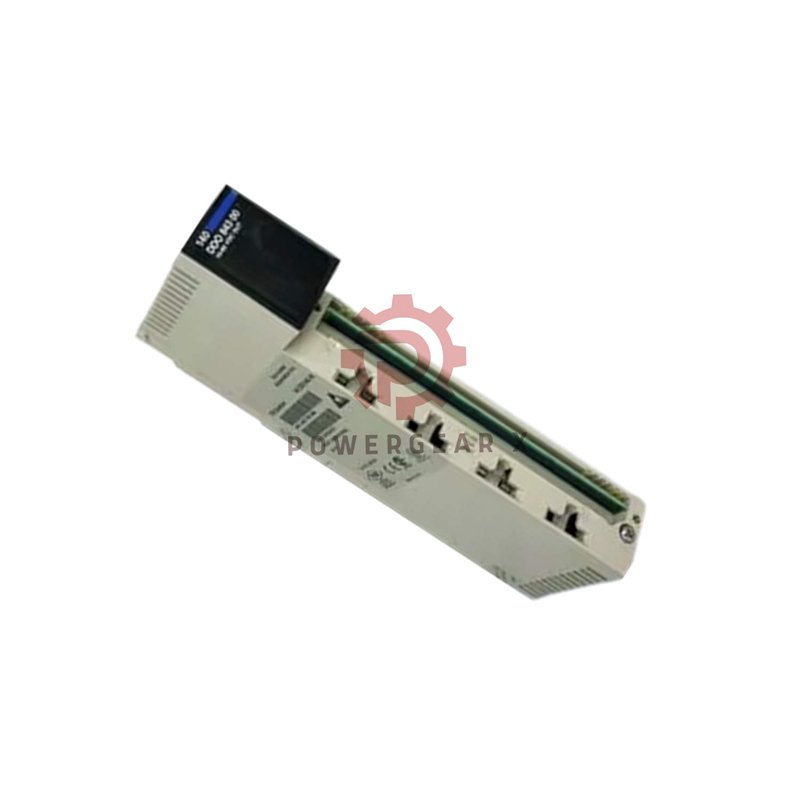

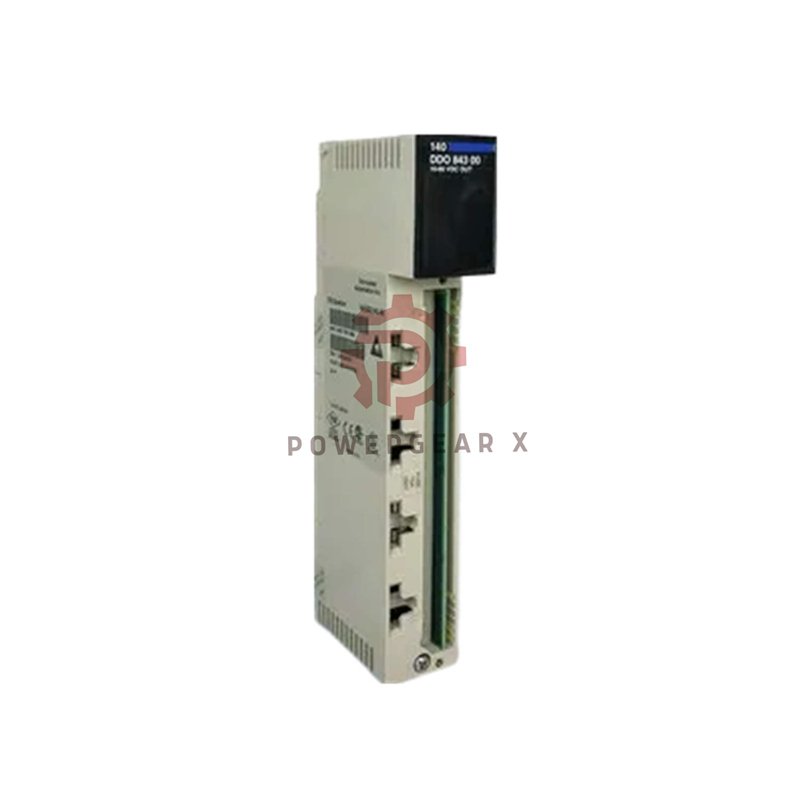

Schneider Electric 140DDO84300C Discrete Output Module | Modicon Quantum
Author: Powergear X Automation
Product Overview
The 140DDO84300C is a DC discrete output module designed for stable and fast field control.
It offers clear status indication and strong protection.
This module fits demanding industrial systems.
Main Features
- 16 DC discrete outputs
- Two isolated groups with 8 outputs each
- Fast switching time under 1 ms
- Wide DC voltage range
- Clear LED status display
Electrical Performance
- Operating voltage: 10–60 V DC
- Maximum voltage: 72 V DC
- Total module current: up to 12 A
- Group current limit: 6 A
- Voltage drop: less than 1 V at 2 A
- Leakage current: below 1 mA
- Bus current consumption: 160 mA
Protection & Safety
- Internal 8 A fuse per output group
- 2 A fuse per output point
- Channel to bus isolation: 2500 Vrms
- Group isolation: 700 Vrms
- Conformal coated circuit board
Environmental Ratings
- Operating temperature: 0 to 60 °C
- Storage temperature: -40 to 85 °C
- Humidity: up to 95% non-condensing
- Operating altitude: up to 5000 m
System Compatibility
- Platform: Modicon Quantum
- Logic type: Positive logic (sourcing)
- Address usage: 1 output word
- Standard Quantum module format
- Certifications: CE, UL, CSA, FM Class I Div 2
Application Advantages
- Reliable control of valves and relays
- Reduced downtime with LED diagnostics
- Handles inductive loads safely
- Easy replacement in existing systems
Warranty & Shipping
- Warranty period: 12 months
- Shipping methods: FedEx, UPS, DHL
Contact Information
Email: sales@powergearx.com
WhatsApp: +86 18030005825
Professional FAQ
Is this module suitable for high-load outputs?
Yes. Distribute loads evenly across both groups to maintain long-term stability.
Can it be used with inductive field devices?
It is suitable for inductive loads when correct wiring and protection rules are followed.
What should be checked before installation?
Verify voltage range, load current, and PLC addressing configuration.
Is it suitable for system upgrades?
Yes. It matches standard Quantum dimensions and simplifies retrofits.
How does LED indication help maintenance?
LEDs allow fast fault location and reduce troubleshooting time.
Short Product Description
- 16-channel DC discrete output module
- 10–60 V DC operating range
- Fast response under 1 ms
- Conformal coating for durability
- Designed for Modicon Quantum PLC
