Schneider Electric 140DAO84220 – 16-point AC Output Module 56V

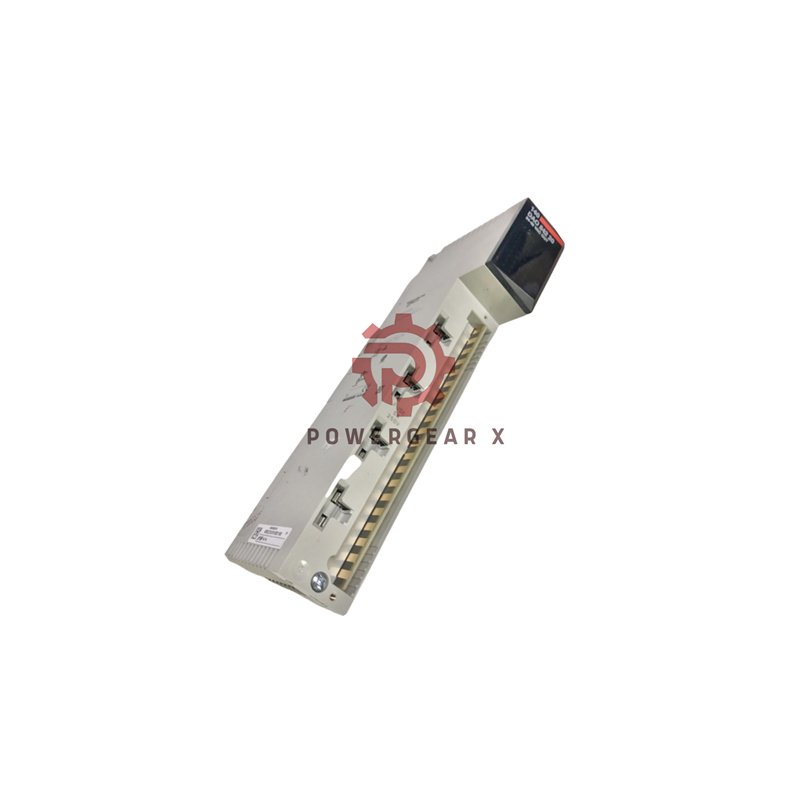

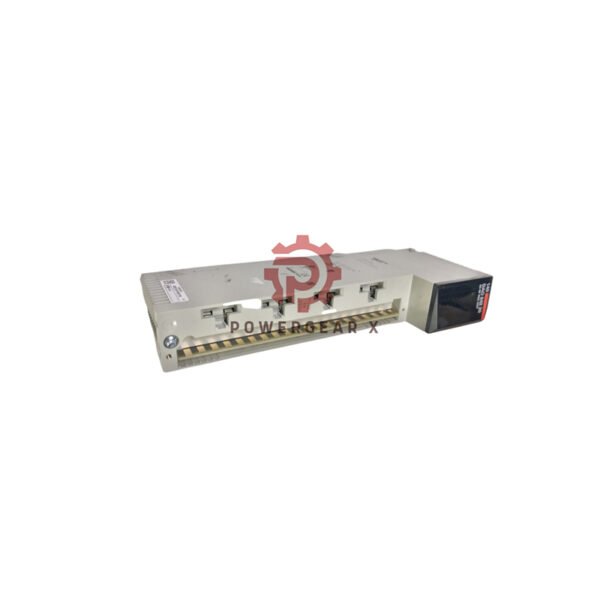

Schneider Electric 140DAO84220 AC Output Module

The Schneider Electric 140DAO84220 delivers precise low-voltage AC output control for industrial automation. This 16-point module offers reliable performance for 20-56V AC applications.

Technical Specifications

• Brand: Schneider Electric
• Model: 140DAO84220
• Type: 16-point AC Output Module
• Voltage Range: 20-56V AC
• Current Rating: 4A per point, 16A total
• Surge Capacity: 45A (1 cycle)
• Response Time: 0.5ms on/off
• Isolation: 500V DC typical
• Power Consumption: 350mA backplane
• Frequency Range: 47-63Hz
• Certifications: cUL, FM Class 1 Div 2
• Warranty: 12 months

Protection & Safety

• 5A fuse protection per channel group
• RC filtering for noise suppression
• Blown fuse detection circuitry
• Loss of field power indication
• 400V/ms dv/dt rating
• ESD protection: 8kV air discharge
• EMI immunity: 10V/m (80-1000MHz)

Shipping & Packaging

• Package Includes: 1 output module
• Dimensions: 31.2 × 16.3 × 4.5 cm
• Weight: 644 grams
• Shipping: FedEx, UPS, DHL available
• Delivery: Worldwide express service
• Origin: France (FR)

Frequently Asked Questions

• What is the maximum voltage rating?
  Rated for 20-56V AC operation with 63V AC maximum for 10 seconds.
• How are the outputs grouped?
  4 groups of 4 channels with independent fuse protection.
• What protection features are included?
  5A fuses per group, RC filters, and surge protection.
• Is this module suitable for hazardous locations?
  Yes, FM Class 1 Division 2 certified for hazardous areas.
• What is the power consumption?
  Consumes 350mA from backplane with 5.5W maximum dissipation.
