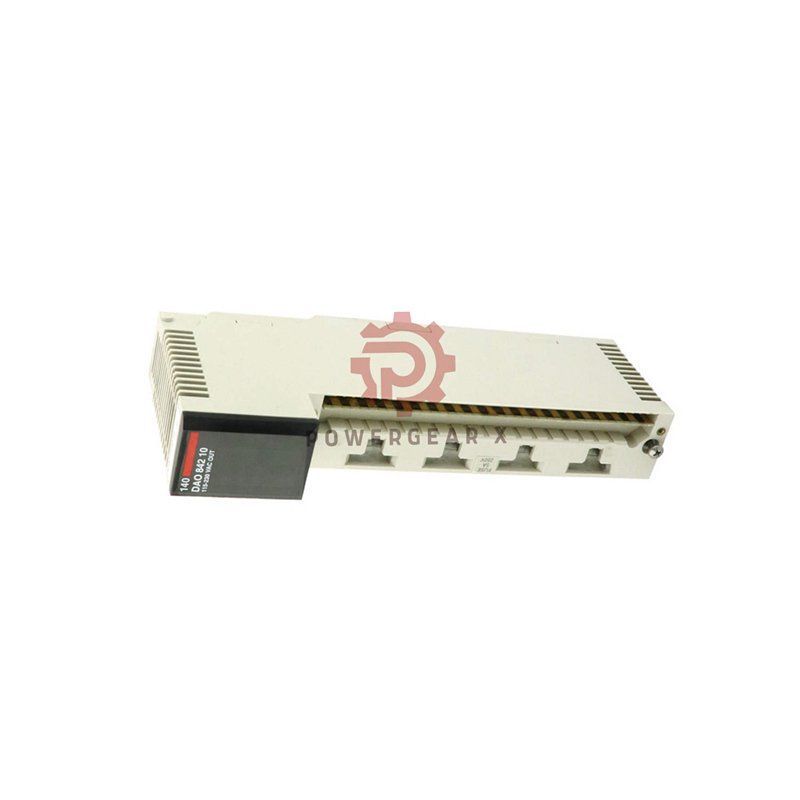

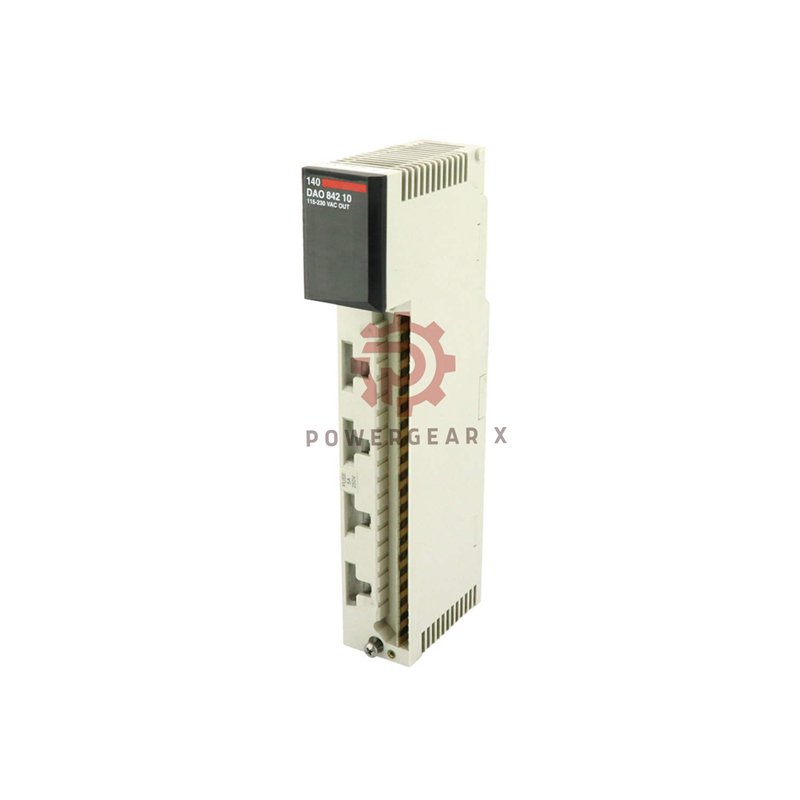

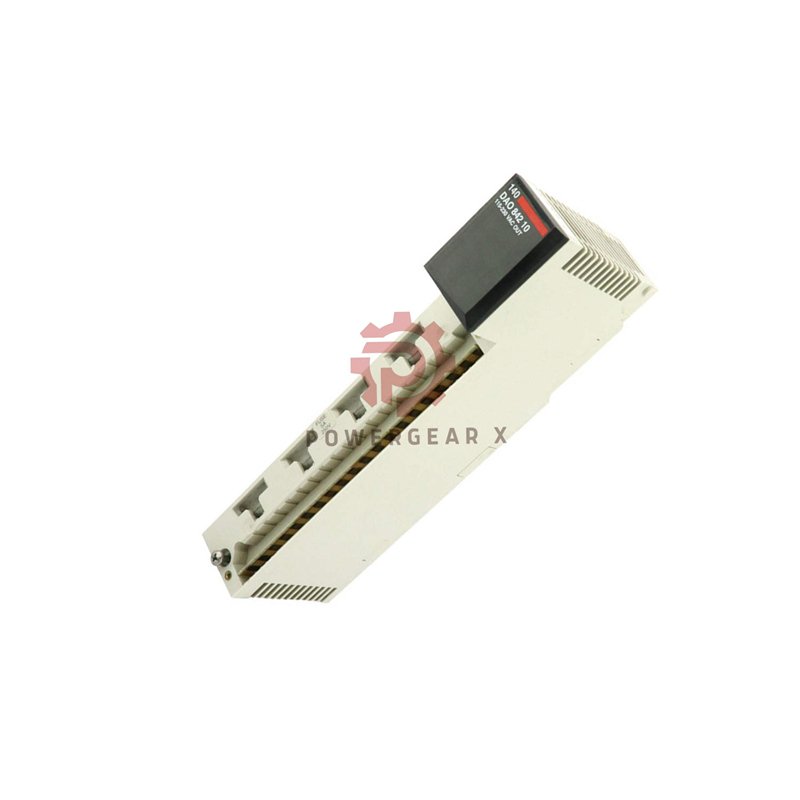

Schneider Electric 140DAO84210C Modicon Quantum Output Module

Schneider Electric 140DAO84210C Modicon Quantum Output Module

The 140DAO84210C from Schneider Electric delivers robust performance for industrial automation. This Modicon Quantum series module offers sixteen discrete AC outputs with wide voltage compatibility. It ensures reliable operation in diverse control systems with efficient power management. Engineers trust this module for its durable design and clear fault indication features. Powergear X Automation provides expert support for integrating this unit.

Core Technical Specifications

• Brand & Model: Schneider Electric 140DAO84210C
• Product Line: Modicon Quantum automation platform
• Operating Voltage Range: 100 to 230 Volts AC
• Discrete Output Count: 16 individual channels
• Output Grouping: Configured as 4 groups of 4 channels
• Supply Frequency: 47 to 63 Hertz for broad compatibility
• Maximum Voltage Drop: Only 1.5 Volts for system efficiency
• Minimum Load Current: 4 Amperes RMS per output group
• Maximum Load Current: 16 Amperes RMS for the entire module
• Power Dissipation Formula: 1.85 + (1.1 V x total module load current)
• Bus Current Requirement: 350 mA for seamless backplane integration
• Response Time: ≤ 0.5 milliseconds for both switching states
• Fault Indication: Clear blown fuse alert for quick maintenance
• Local Signalling: 16 green LEDs show individual output status
• Protection: Internal RC filter and 5A fuse for safety

Environmental & Compliance Details

• Operating Temperature: Stable from 32°F to 140°F (0°C to 60°C)
• Storage Temperature Range: -40°F to 185°F (-40°C to 85°C)
• Relative Humidity: Up to 95% without condensation issues
• Operating Altitude: Can perform at heights up to 16,404 feet (5000 meters)
• Electromagnetic Compatibility: Meets IEC 801-2/3 standards for industrial noise immunity
• Protective Treatment: Features conformal coating (Humiseal 1A33)
• Product Certifications: Includes cUL and FM Class 1 Division 2 approvals
• Key Standards: Complies with UL 508 and CSA C22.2 No 142

Installation & Setup Guide

• Always de-energize the main power supply before starting installation.
• Mount the 140DAO84210C module securely in the Modicon Quantum rack.
• Ensure the operating voltage matches your local 100-230V AC supply.
• Verify that the supply frequency falls within the 47-63 Hz specified range.
• Connect output loads respecting the 4 A RMS minimum per group requirement.
• Use the 16 green LEDs to confirm correct output status after power-up.
• Check the fault indicator LED immediately following installation.
• Contact sales@powergearx.com for wiring diagrams.

Packaging Contents

• One Schneider Electric 140DAO84210C output module unit.
• All mounting hardware and necessary documentation are included.
• Module arrives protected in secure, shock-absorbent packaging.
• For immediate technical help, call +86 18030005825.
• We ship globally via FedEx, UPS, and DHL carrier services.

Frequently Asked Questions (FAQ)

What is the main advantage of this module’s output grouping?

• The 4 groups of 4 channels allow flexible load management. You can distribute higher current loads across groups for better thermal performance.

How do I know if a fuse is blown on the module?

• The module provides a dedicated fault indication. A visual check or system diagnostic will alert you, preventing extended downtime.

Can I use this module with a 50 Hz and 60 Hz power supply?

• Yes, the wide 47-63 Hz frequency range ensures compatibility. It works perfectly in both 50 Hz and 60 Hz electrical environments.

What happens if the load current is below the minimum requirement?

• Operation may become unreliable. Always ensure each group carries at least 4 A RMS for stable and accurate switching performance.

Is special software needed for addressing this module?

• It requires only 1 output word in the PLC configuration. Standard Modicon Quantum programming software handles the setup easily.

Can the module handle inrush currents from inductive loads?

• Yes, it supports surge currents up to 30 A for one cycle per point. The internal protection is designed for such industrial transients.

For further queries on the Modicon Quantum platform, reach out to our team. Email sales@powergearx.com or message on WhatsApp for quick advice.
