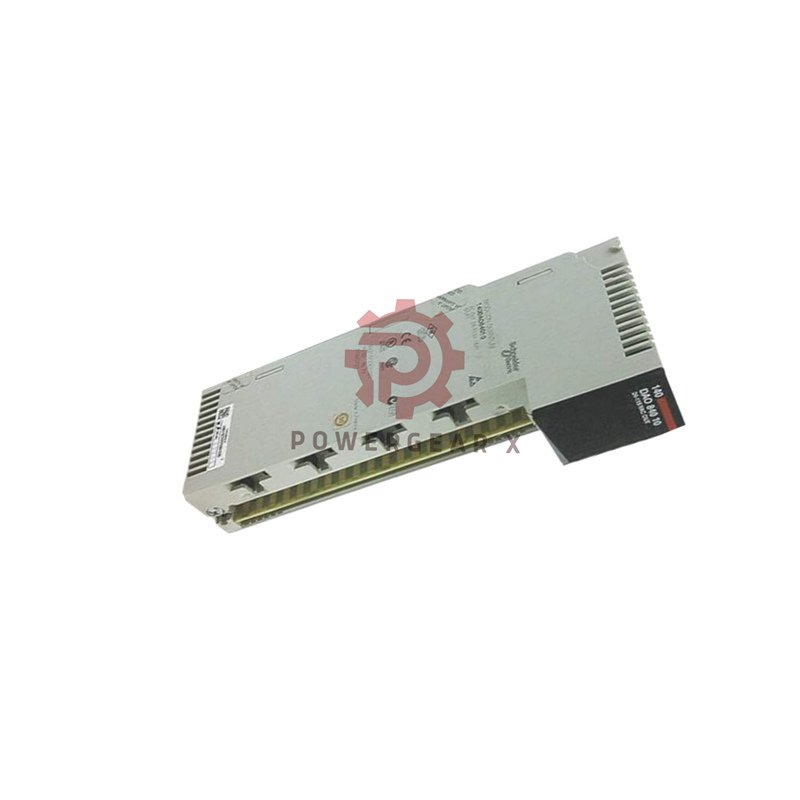

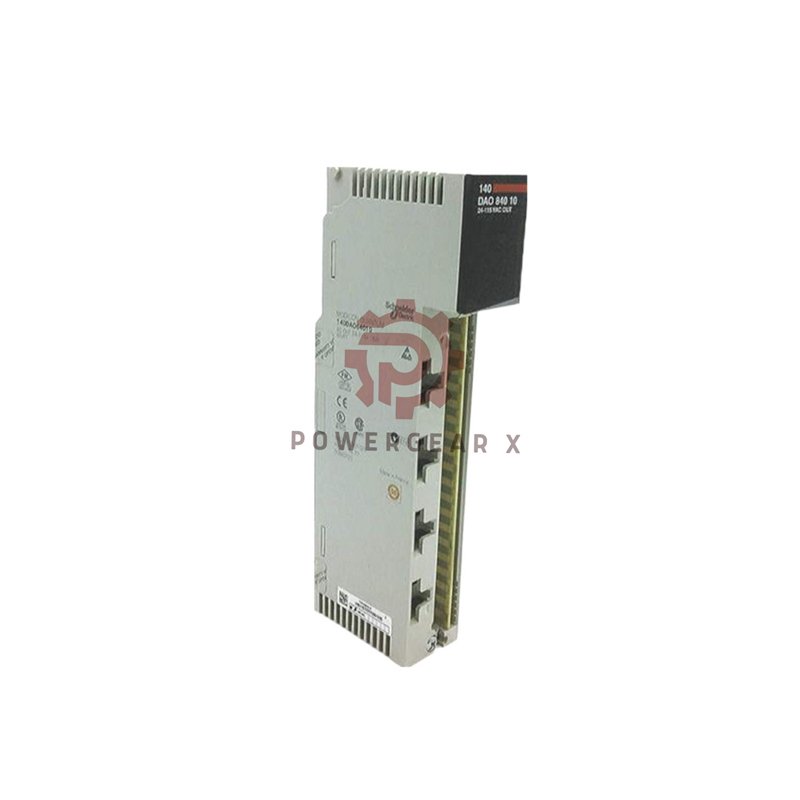

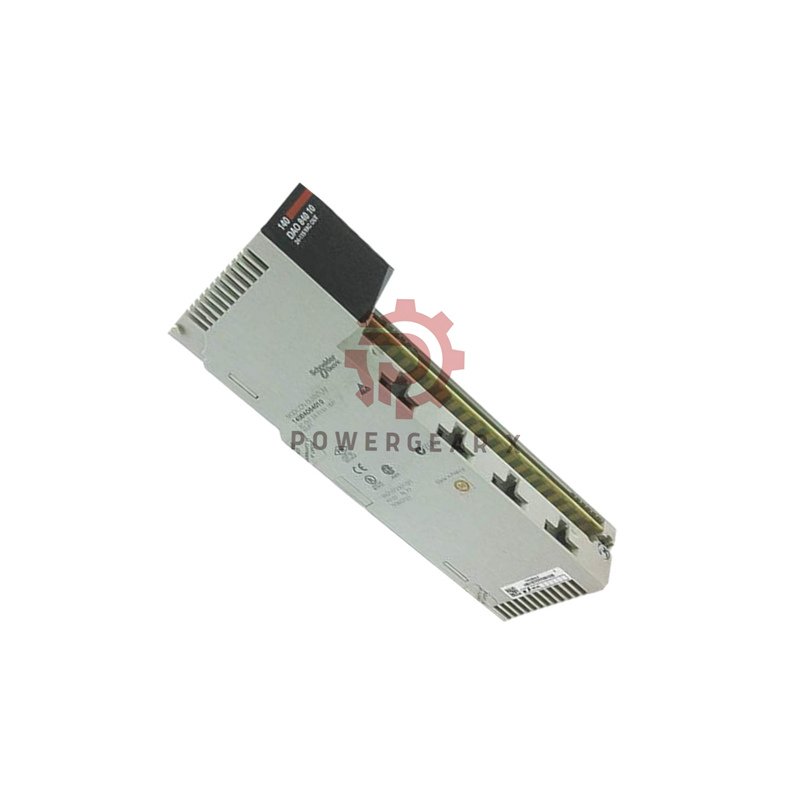

Schneider Electric 140DAO84010C Modicon Quantum AC Output Module

Schneider Electric 140DAO84010C Discrete Output Module

• 140DAO84010C expands output capacity in Quantum systems.
• Built for stable AC load control.
• Ideal for industrial switching tasks.
• Designed for continuous plant operation.

Main Product Benefits

• Fully isolated outputs protect field devices.
• Wide AC voltage range supports many loads.
• Fast response improves machine timing.
• Internal protection increases reliability.
• Clear LEDs simplify troubleshooting.

Output Performance

• Manufacturer: Schneider Electric
• Product Line: Modicon Quantum
• Model: 140DAO84010C
• Module Type: AC discrete output
• Total Channels: 16 outputs
• Output Voltage: 20 to 132 V AC
• Supply Frequency: 47 to 63 Hz
• Addressing: 1 output word
• Response Time: ≤ 0.5 ms

Electrical Ratings

• Maximum Load Current: 4 A per point
• Total Module Current: 16 A RMS
• Surge Current: Up to 30 A
• DV/dt Rating: 400 V/ms
• Voltage Drop: Max 1.5 V
• Fuse Rating: 5 A
• Power Dissipation: 1.85 W plus load factor

Protection and Diagnostics

• Internal RC filter limits voltage spikes.
• Conformal coating guards against moisture.
• Green LED shows bus communication.
• Red LED signals external faults.
• Individual LEDs display channel status.

Environmental Limits

• Operating temperature from 0°C to 60°C.
• Storage temperature from -40°C to 85°C.
• Humidity up to 95 percent non-condensing.
• Operation supported up to 5000 m altitude.

Compliance and Approvals

• CE marked for global use.
• UL 508 certified.
• CSA approved.
• FM Class 1 Division 2 listed.

Typical Applications

• Motor starter control.
• Valve and actuator switching.
• Lighting and heater control.
• Industrial automation panels.

Package Contents

• 1 × Schneider Electric 140DAO84010C module
• Original sealed packaging

Warranty and Shipping

• 12-month warranty included.
• Shipping available via FedEx, UPS, and DHL.
• Secure packaging for international delivery.

FAQ

• Can this module control inductive loads?
• Yes, internal filtering supports inductive devices.
• Is channel isolation important?
• It prevents faults from spreading across outputs.
• Does high DV/dt help switching speed?
• Yes, it supports rapid signal changes.
• What reduces output failure risk?
• Correct fuse sizing and wiring help.
• Is it suitable for harsh environments?
• Yes, the coating protects against moisture.
