Schneider Electric 140DAO84000 Output Module | 16-Channel AC

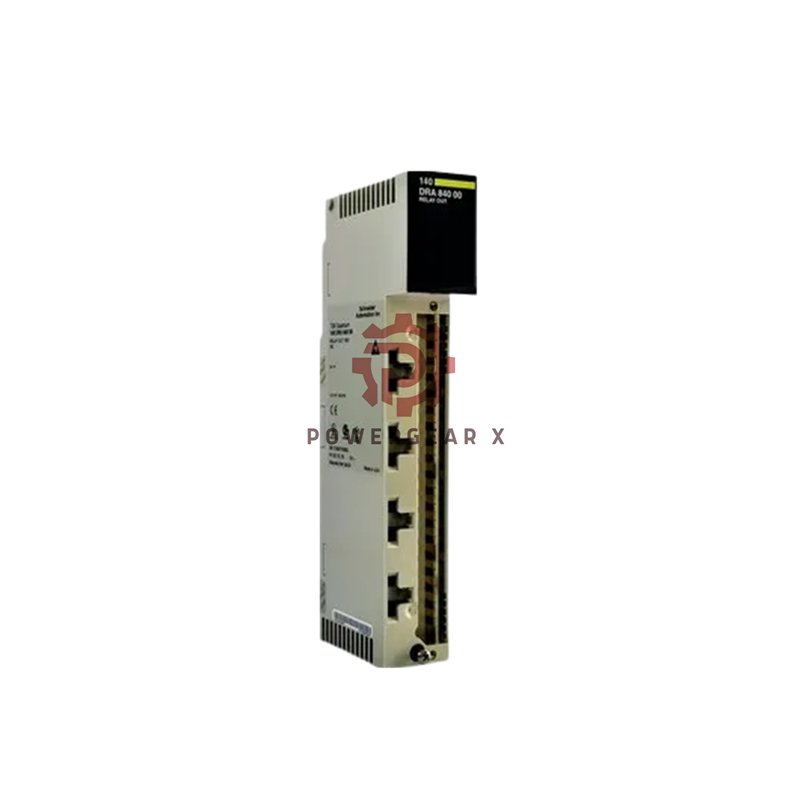

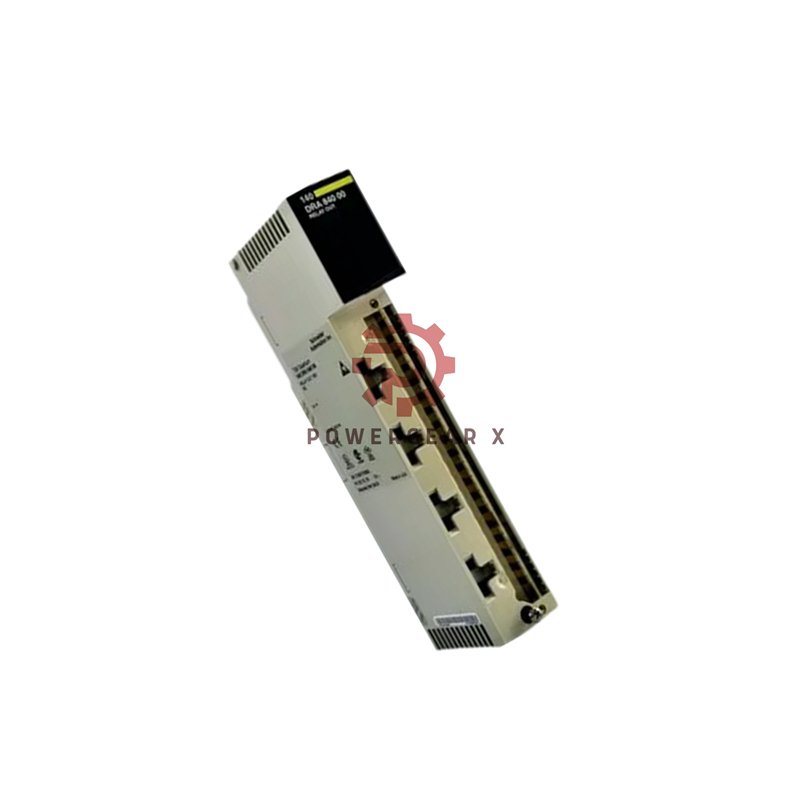

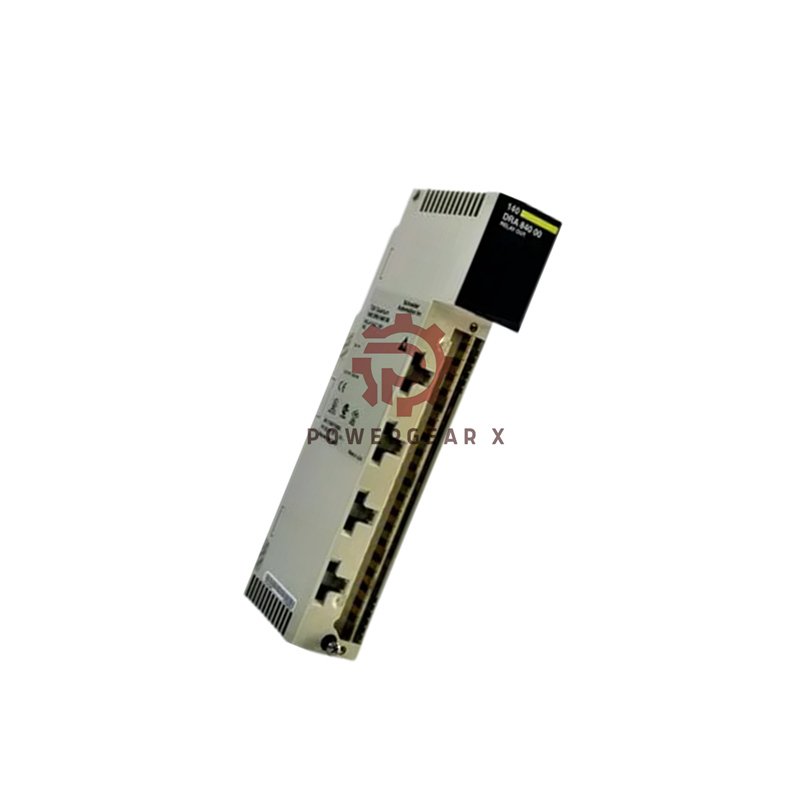

Schneider Electric 140DAO84000 – Versatile AC Output Module

The 140DAO84000 provides reliable 16-channel AC output control for Modicon Quantum systems. This module handles wide voltage ranges from 20-253V AC with robust switching capabilities.

Technical Specifications

• Brand: Schneider Electric
• Model: 140DAO84000
• Series: Modicon Quantum
• Type: AC Discrete Output Module
• Channels: 16 isolated outputs
• Output Voltage: 20-253V AC
• Frequency: 47-63 Hz operation
• Current Rating: 4A per point, 16A module total
• Leakage Current: 1-2.5mA (voltage dependent)
• Response Time: ≤0.5ms (both ON and OFF)
• Surge Current: 30A for 1 cycle per point
• Voltage Drop: 1.5V maximum
• dv/dt Rating: 400V/ms
• Bus Current: 350mA required
• Power Dissipation: 1.85W + (1.1V × load current)
• Fuse Rating: 5A recommended
• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Certifications: cUL, FM Class 1 Division 2, CE
• Warranty: 12 months

Electrical Ratings

• Maximum Voltage: 300Vrms for 10s, 400Vrms for 1 cycle
• Current per Point: 4A @ 24-115V, 3A @ 200-230V
• Surge Capability: 10A/3 cycles, 20A/2 cycles, 30A/1 cycle
• Leakage Current: 1mA @ 24V, 2.5mA @ 230V
• Isolation: 16 individually isolated channels

Status Monitoring

• 16 green LEDs for output status
• 1 green Active LED for bus communication
• 1 red F LED for fault detection
• Comprehensive visual diagnostics

Protection Features

• Internal RC filter protection
• High dv/dt rating (400V/ms)
• Surge current withstand capability
• ESD protection: 4kV contact, 8kV air
• EMI immunity: 10V/m (80-1000MHz)

Environmental Specifications

• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 95% non-condensing
• Altitude: Up to 5000 meters
• Weight: 1.069 lb (0.485 kg)

Shipping Details

• Package Dimensions: 12.28″ × 6.42″ × 1.77″
• Package Weight: 21.9 oz (621 g)
• Shipping: FedEx, UPS, DHL Express
• Origin: France (FR)
• Delivery: 3-7 business days

Frequently Asked Questions

• What voltage range does this module support?
  It handles 20-253V AC, making it suitable for global applications.
• How much current can each output handle?
  Each output supports 4A at lower voltages, 3A at 200-230V AC.
• What is the switching speed?
  It features fast 0.5ms response time for both ON and OFF switching.
• Are the outputs isolated?
  Yes, all 16 channels are individually isolated for safety.
• What protection features are included?
  Internal RC filters and high surge current capability provide robust protection.
