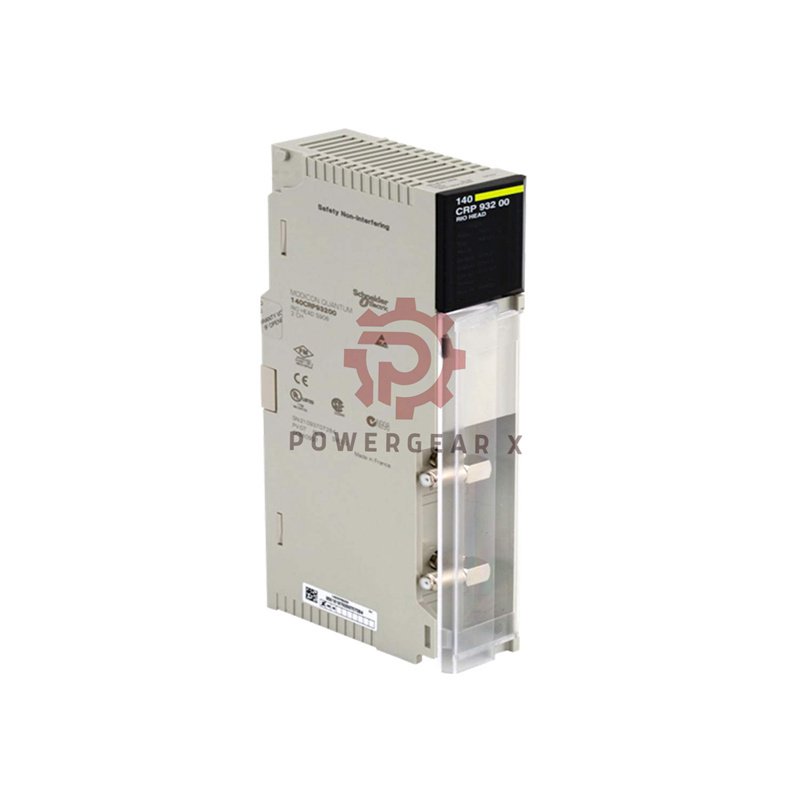

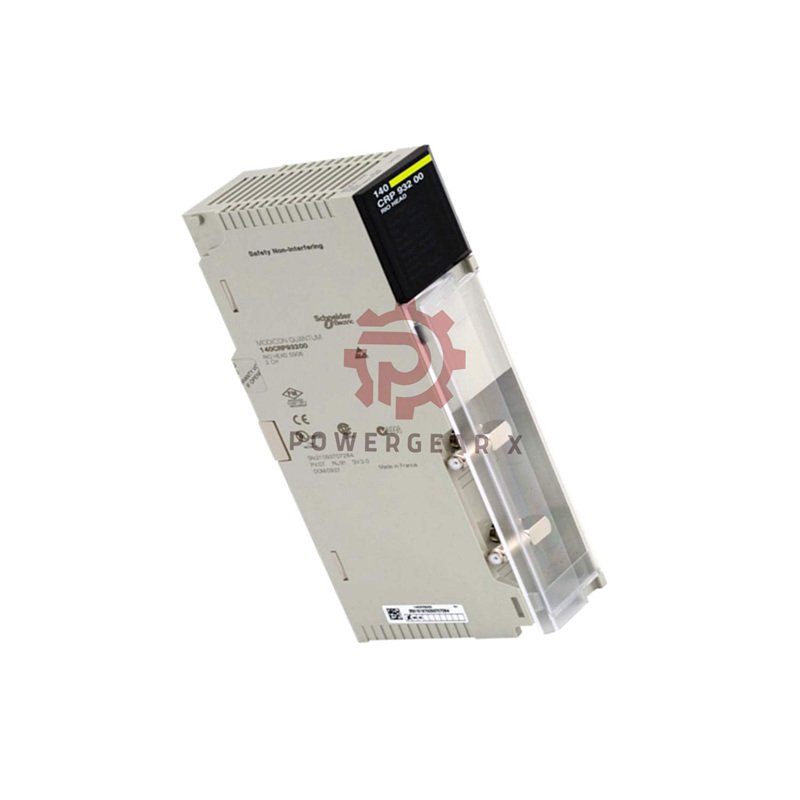

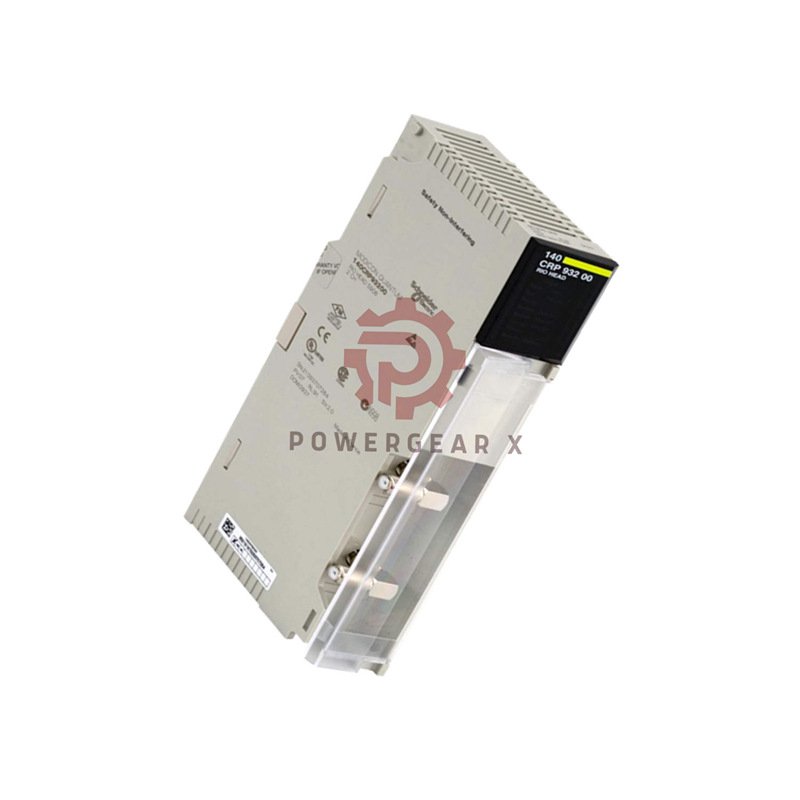

Schneider Electric 140CRP93200C Modicon Quantum RIO Head-End

Schneider Electric 140CRP93200C Modicon Quantum RIO Head-End Module

• Brand: Schneider Electric
• Model: 140CRP93200C
• Platform: Modicon Quantum
• Module Type: RIO Head-End Adapter
• Built for stable remote I/O communication.
• Author: Powergear X Automation

Design Purpose and Value

• Acts as the main gateway for remote I/O networks.
• Supports large distributed automation systems.
• Ensures fast and reliable data exchange.
• Ideal for critical industrial control environments.

Network and I/O Capacity

• Supports up to 31 drops per network.
• Each drop handles 64 inputs and 64 outputs.
• Compatible with mixed Quantum and Symax systems.
• Designed for scalable plant architectures.

Communication Performance

• Transmission speed reaches 1544 Mbit/s.
• Uses 75 Ohm coaxial communication cable.
• Dynamic range rated at 35 dB.
• Maintains strong signal quality over long distances.

Electrical and Power Characteristics

• Isolation voltage rated up to 500 V DC.
• Bus current requirement: 750 mA.
• Total power dissipation limited to 3 W.
• Dual-channel design improves reliability.

Diagnostics and System Monitoring

• Startup diagnostics run automatically.
• Checks LAN controller status.
• Verifies internal memory integrity.
• Helps reduce commissioning time.

Environmental and Mechanical Ratings

• Operating temperature range: 0 to 60 °C.
• Storage temperature range: -40 to 85 °C.
• Relative humidity up to 95 percent.
• Operating altitude up to 5000 meters.
• Conformal coating protects internal circuits.

Compliance and Safety

• CE marked for global markets.
• Certified for hazardous locations.
• Complies with UL and CSA standards.
• High resistance to electrical noise.

Installation and Integration

• Standard module format fits Quantum racks.
• Elbowed coaxial connectors save panel space.
• Redundant cable connections increase uptime.
• No special configuration tools required.

Typical Application Scenarios

• Large-scale process automation.
• Power distribution systems.
• Oil and gas control rooms.
• Manufacturing line expansion projects.

Packaging and Warranty

• One RIO head-end module per package.
• Factory-sealed original packaging.
• Net weight approximately 548 g.
• 12-month warranty included.
• Worldwide shipping via FedEx, UPS, or DHL.

Professional FAQ

• Is this module suitable for long-distance networks?
• Yes. Coaxial design supports extended cable runs.
• Can it be used in high-noise environments?
• Yes. It offers strong EMI and ESD resistance.
• Does it support mixed I/O configurations?
• Yes. Each drop supports flexible I/O mapping.
• Is redundancy supported at the connector level?
• Yes. Dual elbowed connectors enable backup cabling.
• What improves field reliability most?
• Startup diagnostics and conformal coating.
