Schneider Electric 140CRA31908 Ethernet RIO Drop Adapter | Modicon Quantum

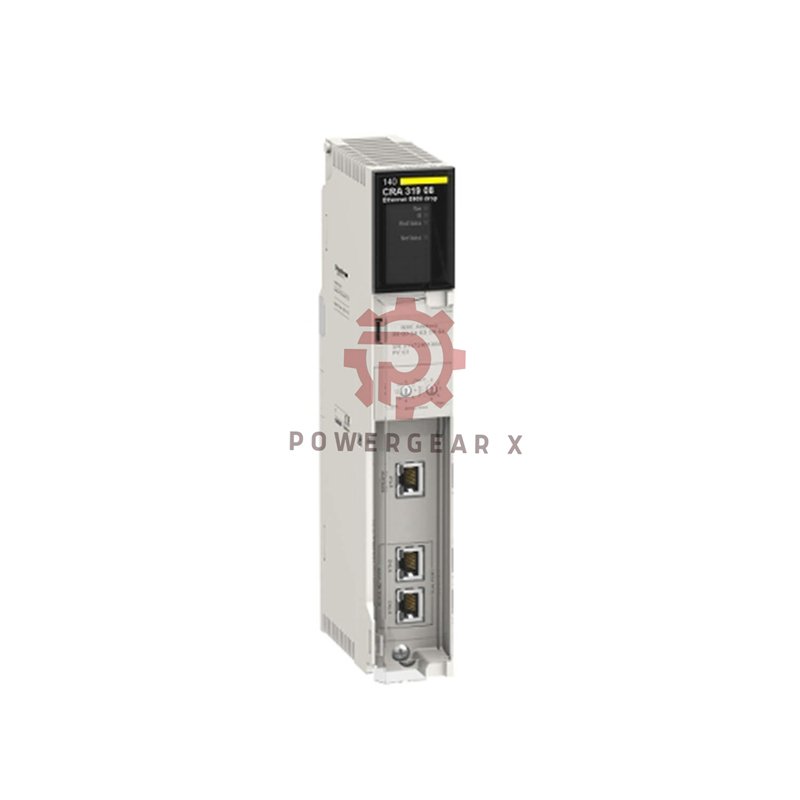

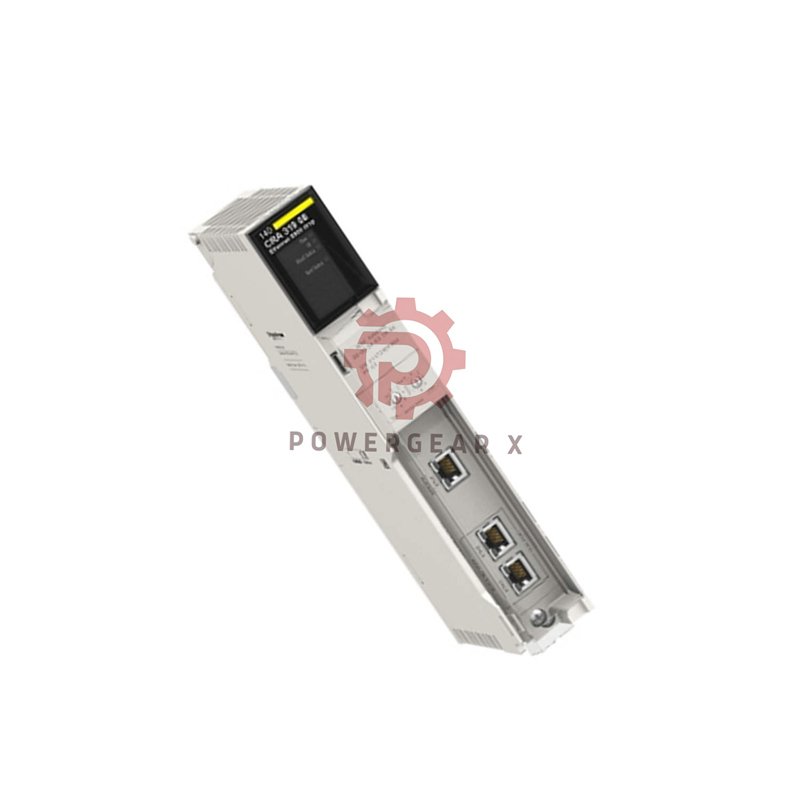

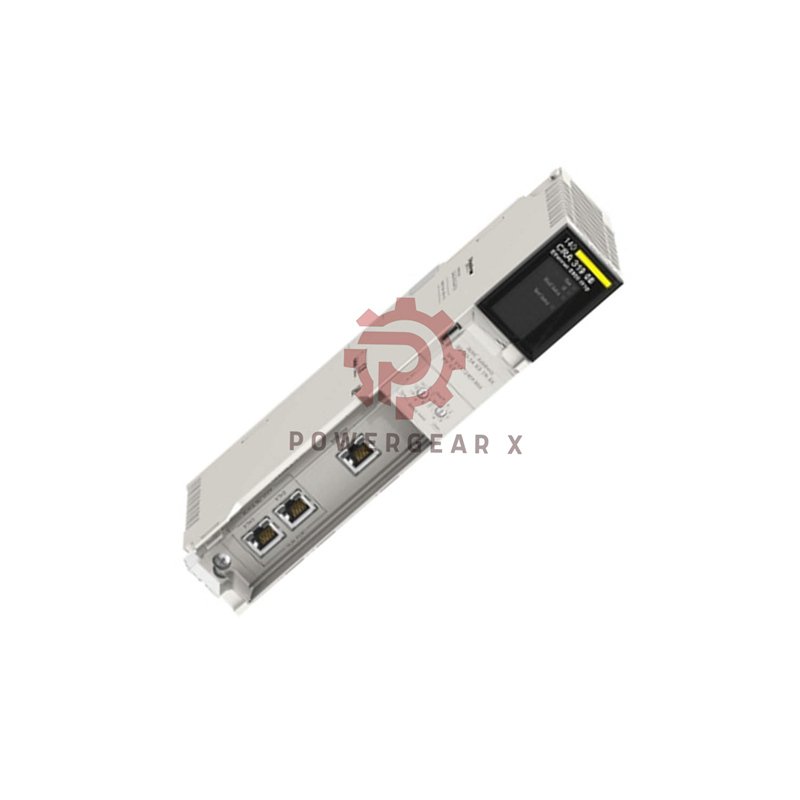

Schneider Electric 140CRA31908 Ethernet RIO Drop Adapter

This is the Schneider Electric 140CRA31908. It connects old Modicon S908 I/O to new Ethernet networks. It works with Modicon Quantum and M580 systems. The adapter makes your control system modern and flexible.

Main Product Advantages

• Modernizes Old Systems: Links classic S908 remote I/O to Ethernet/IP or Modbus TCP networks.
• Simple Network Setup: Has three Ethernet ports for easy daisy-chain connection.
• Strong & Reliable: Built for tough industrial places with wide temperature range.
• Clear Status Lights: Four LEDs show power, run status, network, and module health.
• Saves Space: Compact design fits easily in control cabinets.

Technical Specifications in Detail

• Manufacturer & Part Number: Schneider Electric 140CRA31908
• Product Line: Modicon Quantum
• Electrical Ratings:
  • Supply Voltage: 5 V DC
  • Current Consumption: 1.2 A
  • Power Rating: 6 Watts
• Network & Communication:
  • Ethernet Ports: 3 (Service and Network)
  • Protocols: EtherNet/IP and Modbus TCP
  • Topology: Daisy-chain loop
  • Function: Publishes input data, updates output modules from remote I/O head.
• Physical Design:
  • Dimensions: 167mm (W) x 50mm (H)
  • Weight: 0.554 kg
  • Protection Rating: IP20
• Environmental Limits:
  • Operating Temperature: 0°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Operating Humidity: Up to 93% (non-condensing)
  • Operating Altitude: Up to 2000 meters
  • Vibration Resistant: Meets IEC 61131-2 standards
• Approvals & Safety:
  • Standards: UL 508, CE, C-Tick, CSA C22.2 No.142
  • Overvoltage Category: Class I (IEC 61131-2)
  • Hazardous Location: Suitable for Class I, Division 2

Compatible Products & Setup

• Works With: Modicon Quantum local drop (S908 bus).
• Controller Compatibility: BMEP584040, BMEP585040, BMEP586040, BMEH584040, BMEH586040.
• Application: Allows M580 systems to control Modicon S908 remote I/O.

What You Get & Support

• Package Includes: One (1) Schneider Electric 140CRA31908 adapter module.
• Warranty: Full 12-month warranty from shipment date.
• Global Shipping: We ship via FedEx, UPS, and DHL worldwide.
• Expert Support: Provided by Powergear X Automation.

Common Questions (FAQ)

What does this adapter actually do?

It acts as a bridge. It takes I/O data from old S908 coaxial cable Remote I/O racks and makes it available on a modern Ethernet network (EtherNet/IP or Modbus TCP).

Can I connect multiple 140CRA31908 adapters in one system?

Yes. You can connect them in a daisy-chain loop using the three Ethernet ports for flexible network layout.

What is the difference between the three Ethernet ports?

Typically, one is a service port for programming. The other two form the device network for the daisy-chain data flow. Refer to the manual for port configuration.

From experience, what is a key setup tip for this module?

Ensure the IP address and network parameters are correctly set before connecting the S908 bus. A mismatch here is a common cause of communication failure.

Does the module need special configuration software?

Yes. You will need Schneider Electric’s EcoStruxure Control Expert or similar engineering software to configure the module and map the I/O data.
