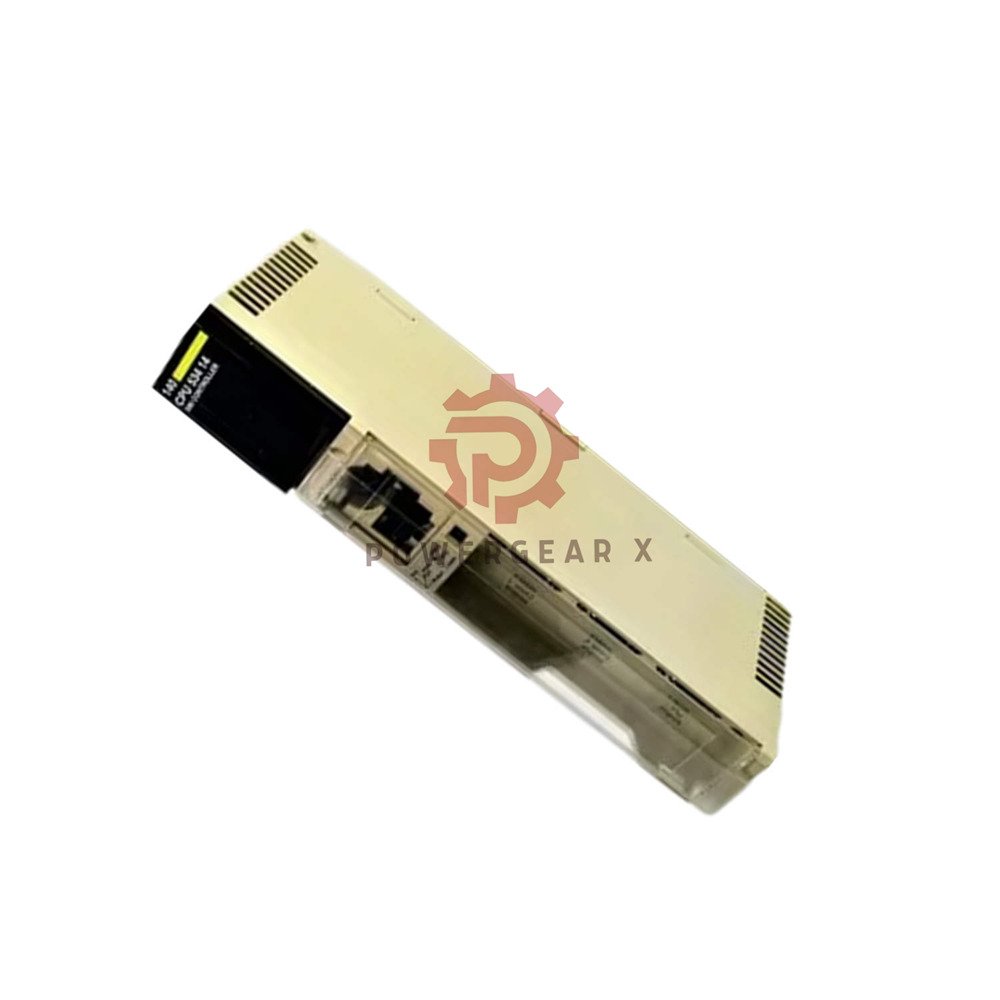

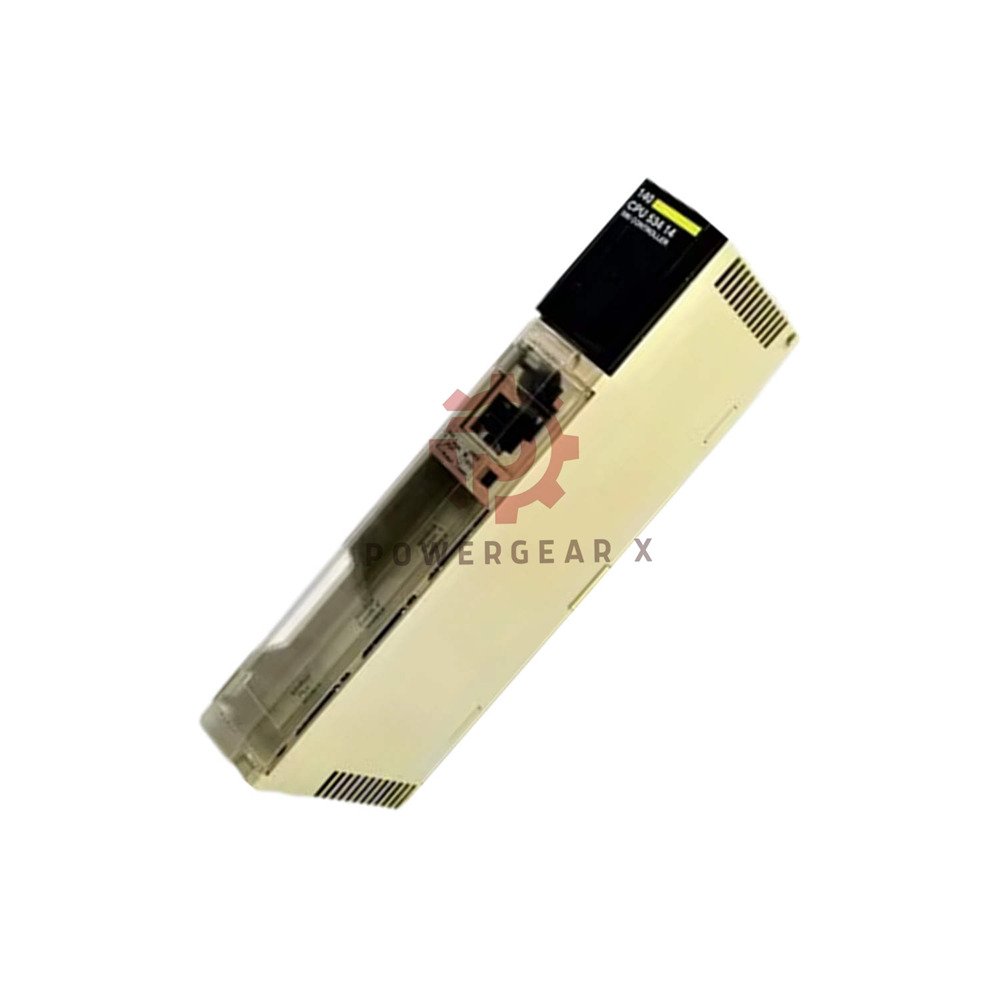

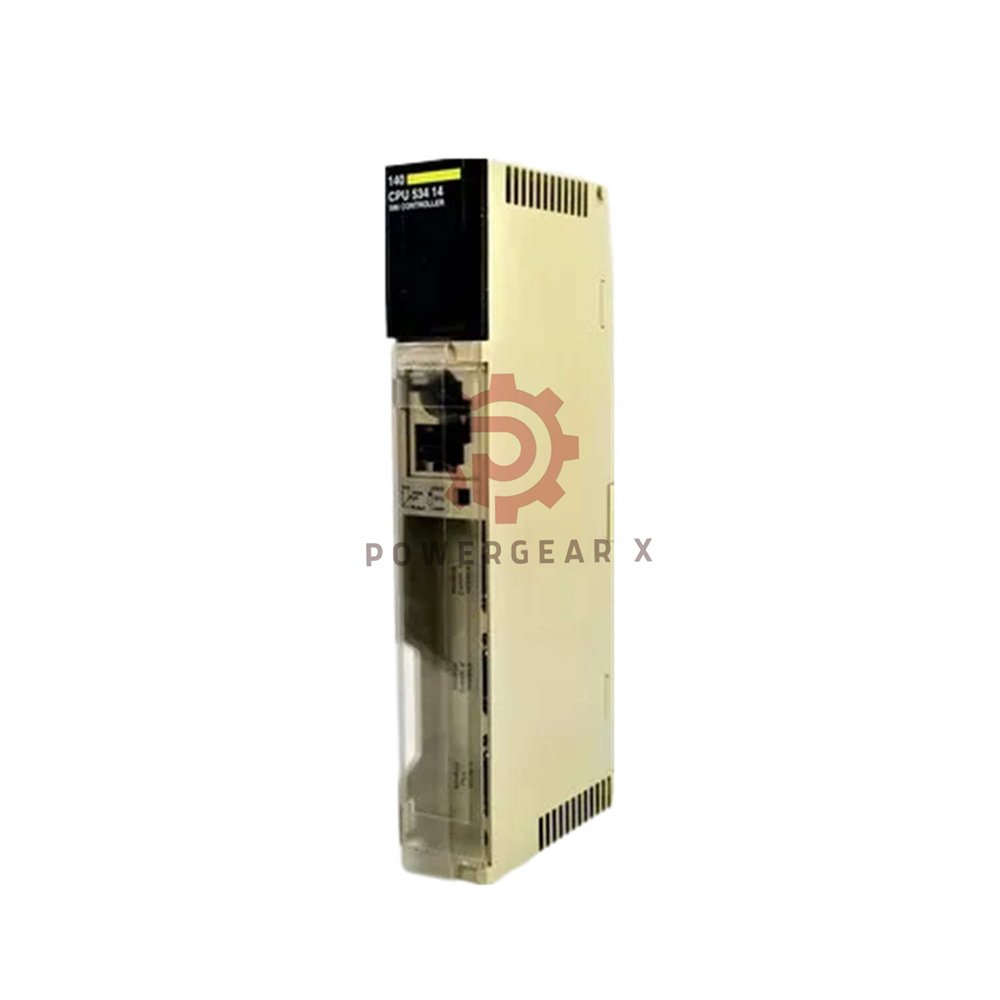

Schneider Electric 140CPU53414UC Modicon Quantum CPU Module
- 140CPU53414UC is a high-performance PLC processor.
- It belongs to the Modicon Quantum automation platform.
- The design supports complex industrial logic.
- It ensures stable and fast control execution.
Product Identity
- Manufacturer: Schneider Electric
- Series: Modicon Quantum
- Model: 140CPU53414UC
- Component Type: CPU Module
- Author: Powergear X Automation
Processor & Performance
- Processor Type: Quantum Unity
- CPU Core: 80486 with math coprocessor
- Clock Speed: 100 MHz
- Instruction Speed: Up to 2.49 Kinst/ms
- Boolean Execution: 0.1 to 0.27 µs
Memory Architecture
- Internal RAM: 586 KB
- Total RAM: 2972 KB
- Program Memory: 4 MB
- Communication Memory: Over 1 MB
- Designed for large automation programs.
System Capacity
- Local Racks: Supports 2 racks
- Distributed Drops: Up to 63
- Remote Networks: 2
- Distributed Networks: 3
- Scales well for large plants.
Communication Interfaces
- Ports: Modbus RS232 and Modbus Plus
- Supports fast device communication.
- Stable data exchange with field equipment.
I/O Handling
- Local I/O: Up to 64 inputs and 64 outputs
- Distributed I/O: 500 inputs and 500 outputs
- Handles complex control structures.
Power & Hardware Details
- Power Supply: 5 V DC
- Bus Current: 1250 mA
- Net Weight: 0.85 kg
- Form Factor: Standard Quantum module
Environmental & Protection Features
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity: Up to 95 percent non-condensing
- Protective Coating: Yes
- Built for harsh industrial conditions.
Diagnostics & Reliability
- Status and error LEDs included.
- Watchdog timer set at 250 ms.
- Key switch improves operational safety.
Certifications & Standards
- CE marked.
- FM Class 1 Division 2 certified.
- Complies with UL 508 and CSA standards.
Main Product Benefits
- Fast logic execution.
- Large memory capacity.
- Stable network communication.
- Long service life.
Warranty & Shipping
- Warranty: 12 months.
- Shipping Options: FedEx, UPS, DHL.
- Industrial-grade packaging.
FAQ
- Is this CPU suitable for large automation systems?
- Yes. It supports many racks and networks.
- Does it support legacy Quantum systems?
- Yes. It works with existing Quantum hardware.
- What is a common setup tip?
- Check network limits before expansion.
- How important is the protective coating?
- It helps in dusty or humid environments.
- How should buyers select this CPU?
- Choose it for fast and memory-heavy projects.
