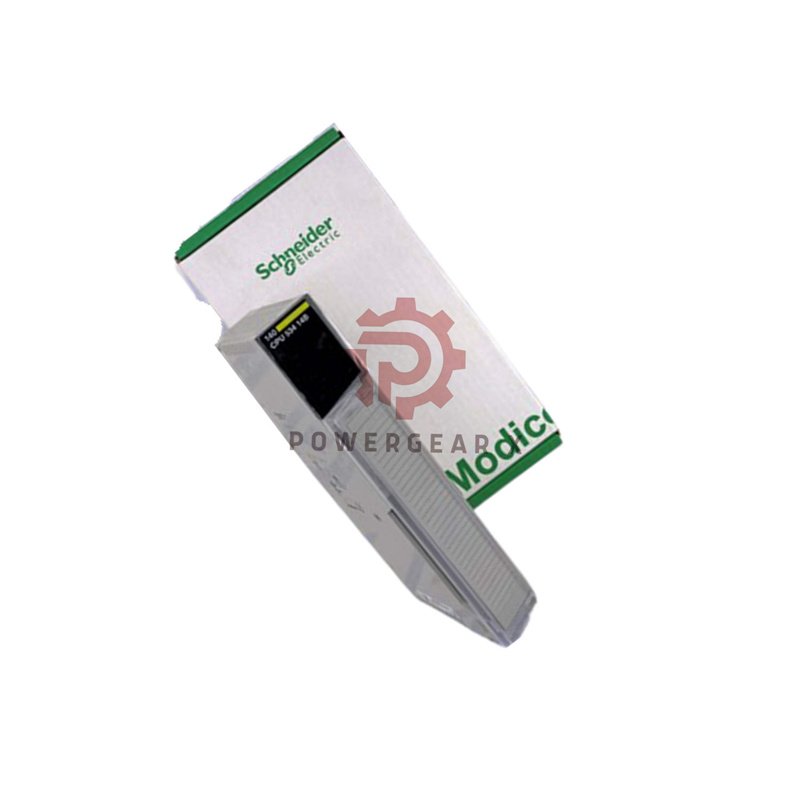

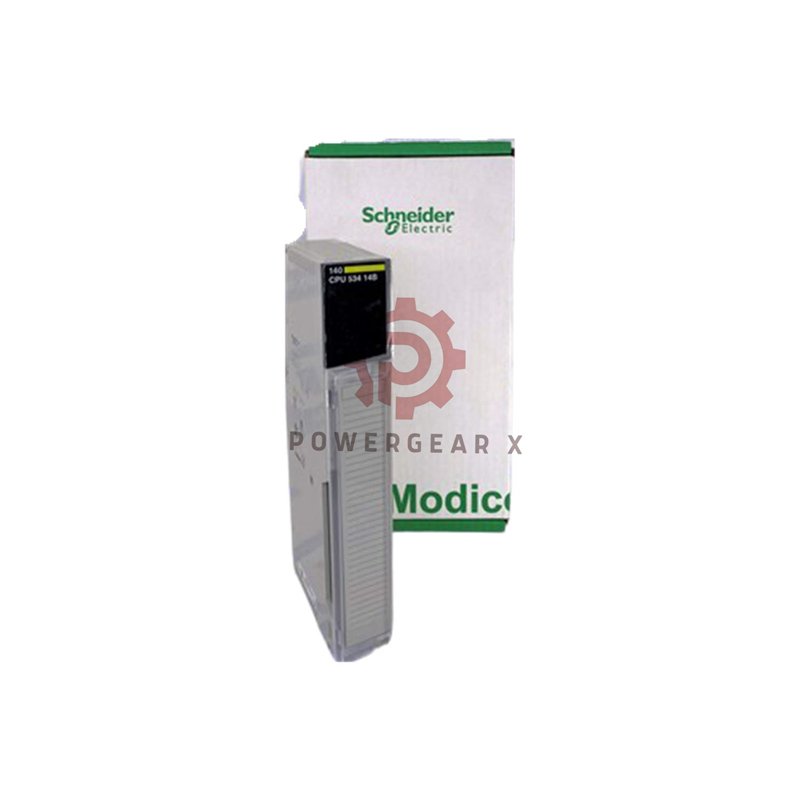

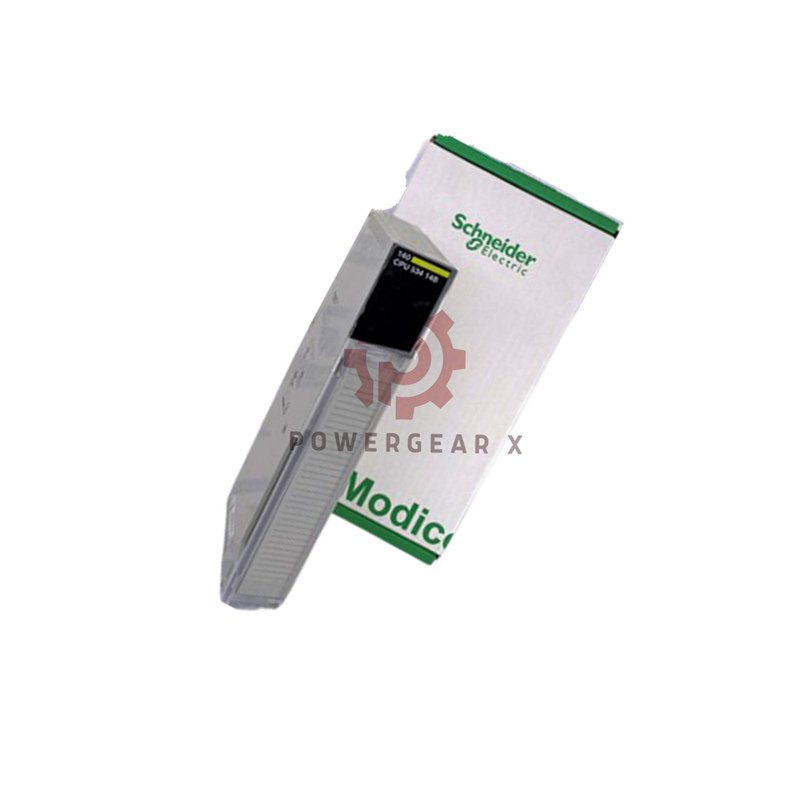

Schneider Electric 140CPU53414BC Modicon Quantum PLC Processor

Schneider Electric 140CPU53414BC Modicon Quantum Processor

• Brand: Schneider Electric
• Model: 140CPU53414BC
• Series: Modicon Quantum
• Product Type: Industrial PLC Processor
• Designed for stable and high-load control systems.
• Author: Powergear X Automation

Core Performance Highlights

• CPU clock speed reaches 100 MHz.
• Internal RAM provides 2972 kB capacity.
• Instruction execution time as low as 0.1 ms.
• Integrated math coprocessor improves logic speed.
• Watchdog timer ensures reliable runtime control.

Memory and Processing Architecture

• Processor architecture based on 80486 core.
• Supports LL984 instruction set.
• Clock drift limited to ±8 seconds per day.
• Optimized for continuous operation cycles.

I/O and Network Capacity

• Handles 500 input and 500 output words per network.
• Supports up to 63 distributed drops.
• Manages 31 remote drops efficiently.
• Allows up to three distributed networks.
• Supports two remote networks.

Electrical and Power Characteristics

• Bus current requirement: 1250 mA.
• Key switch prevents unauthorized access.
• Low power lithium battery included.
• Battery capacity rated at 1.2 Ah.
• Typical battery life reaches 10 years.

Environmental Durability

• Operating temperature range: 0 to 60 °C.
• Storage temperature range: -40 to 85 °C.
• Humidity tolerance up to 95 percent.
• Operates at altitudes up to 5000 meters.
• Conformal coating protects against moisture.

Protection and Compliance

• Resists electrostatic discharge up to 8 kV.
• Withstands electromagnetic fields up to 10 V/m.
• Certified for hazardous locations.
• Meets UL and CSA industrial standards.
• CE marked for global compliance.

Installation and Maintenance

• Standard module format fits Quantum racks.
• No special tools required for installation.
• Hot swap supported during maintenance windows.
• Status LEDs simplify diagnostics.

Typical Industrial Applications

• Process automation systems.
• Power generation plants.
• Oil and gas control panels.
• Material handling systems.
• Water treatment facilities.

Packaging and Warranty

• One processor unit per package.
• Factory-sealed original packaging.
• Net weight approximately 0.85 kg.
• 12-month warranty included.
• Worldwide shipping via FedEx, UPS, or DHL.

Professional FAQ

• Is this processor suitable for large I/O systems?
• Yes. It supports high I/O density networks.
• Can it operate in high-noise environments?
• Yes. It offers strong EMI resistance.
• Does the battery require frequent replacement?
• No. Typical service life is ten years.
• Is software included with the processor?
• No. ProWORX software is ordered separately.
• What is a common field deployment advantage?
• Stable operation during long production cycles.
